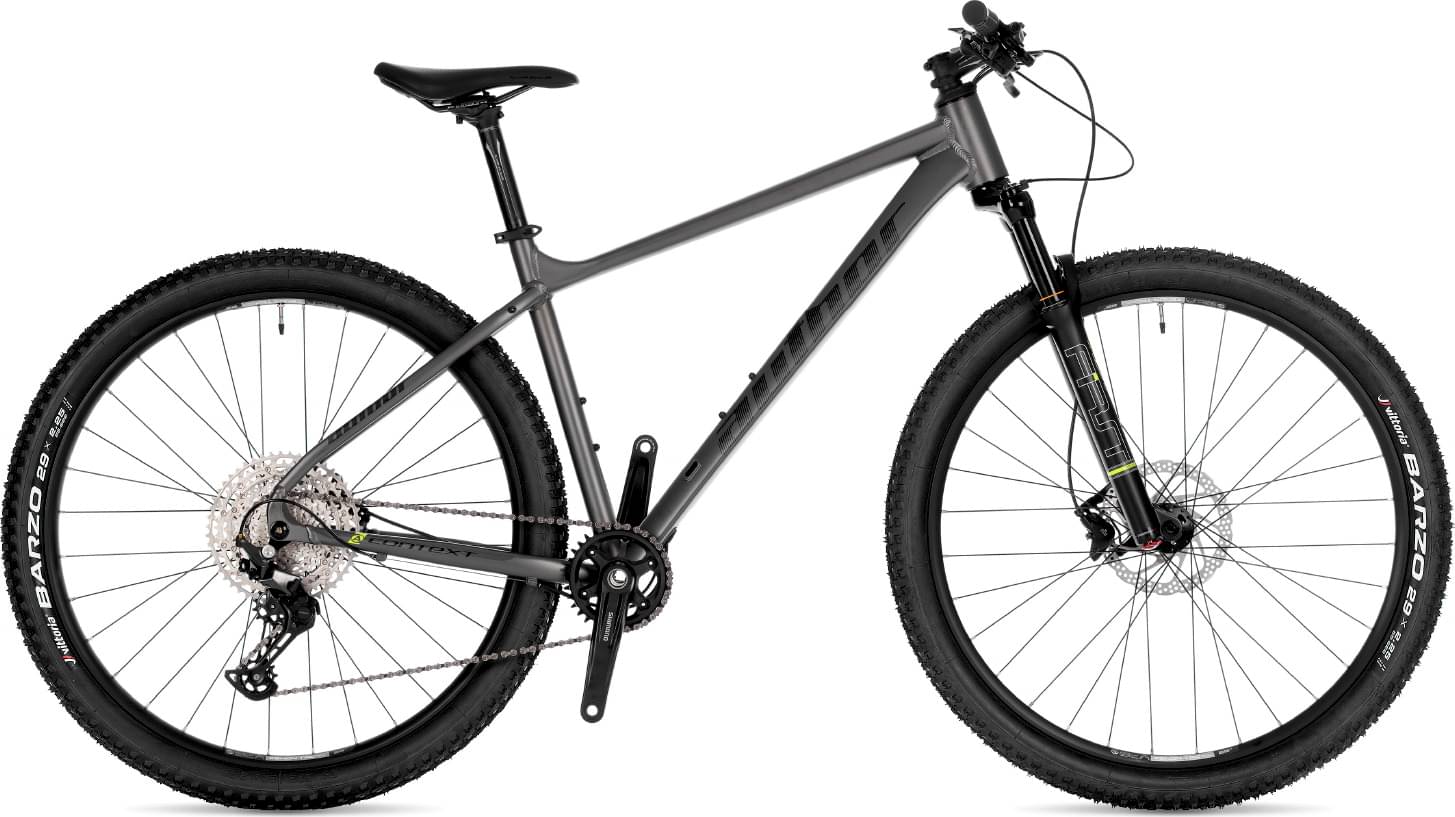

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
29"/17"
168cm - 180cm
29"/19"
177cm - 190cm
29"/21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted hydroformed alloy 6061 29"
Suspension Fork
RST F1RST 29 15 TRL, air, remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (12)
Cassette
SHIMANO CS-M6100-12, 10-51 (12)
Crank
SHIMANO M510-1, 34 teeth, 170 / 175 mm cranks
Chain
KMC X12
Wheels
Front Hub
AUTHOR Helium 15 / SHIMANO, 15 × 100 mm thru front axle, 12 × 148 mm rear axle, 32 holes
Rear Hub
AUTHOR Helium 15 / SHIMANO, 15 × 100 mm thru front axle, 12 × 148 mm rear axle, 32 holes
Rims
AUTHOR Xenon TRC 29, 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo, aramid, 29" × 2.25"
Brakes
Brakes
SHIMANO BR-MT410, disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar, 9°, 700 / 720 mm
Seat
Saddle
AUTHOR Navigator
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 29"/17" | 29"/19" | 29"/21" |
|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.403 mm | 1.385 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 698 mm | 724 mm | 745 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 89 mm | 89 mm |
| Stack | 616 mm | 630 mm | 644 mm |
| Reach | 428 mm | 449 mm | 465 mm |
| Top Tube Length | 605 mm | 630 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1135 mm | 1161 mm | 1182 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |
