Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W mid-drive -
Battery SHIMANO E-8036 Li-Ion, 36 V, 17,5 Ah, 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloyl 6061 27.5+" suspension (integrated battery), air shock FOX DPS Perfomance Float 205 / 57.5 mm (rear travel 140 mm)
Suspension Fork
FOX 34 Rhythm Float air, lock out 15 mm thru axle, 1.5" tapered column (140 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (11)
Cassette
SHIMANO CS-M5100-11 11-51 (11)
Crank
SHIMANO Steps E-M600 38 teeth 170 / 175 mm cranks
Bottom Bracket
STEPS, press-fit
Chain
KMC e11T
Pedals
HT platform
Wheels
Front Hub
QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rear Hub
QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rims
AUTHOR E-Krypton 27.5 32 holes
Spokes
black stainless steel 2.2 mm
Tires
MAXXIS Recon aramid 27.5" × 2.60"
Brakes
Brakes
TRP Slate T4 disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
RITCHEY MTN Rizer Trail WCS 15 mm 760 / 780 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR E-Mode
Seatpost
KIND SHOCK RAGEi suspension travel 125 mm / 150 mm (30.9)
Motor & Battery
Motor
SHIMANO Steps E-P800, 250 W
Battery
SHIMANO E-8036 Li-Ion, 36 V, 17,5 Ah, 630 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.48 mm |
| Bottom Bracket Height | 340 mm | 340 mm |
| Front Center | 726 mm | 735 mm |
| Rake | 51 mm | 51 mm |
| Trail | 95 mm | 106 mm |
| Stack | 632 mm | 632 mm |
| Reach | 406 mm | 426 mm |
| Top Tube Length | 588 mm | 608 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1174 mm | 1183 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 168 cm | 177 cm |
| Rider Max Height | 180 cm | 189 cm |
Model Overview

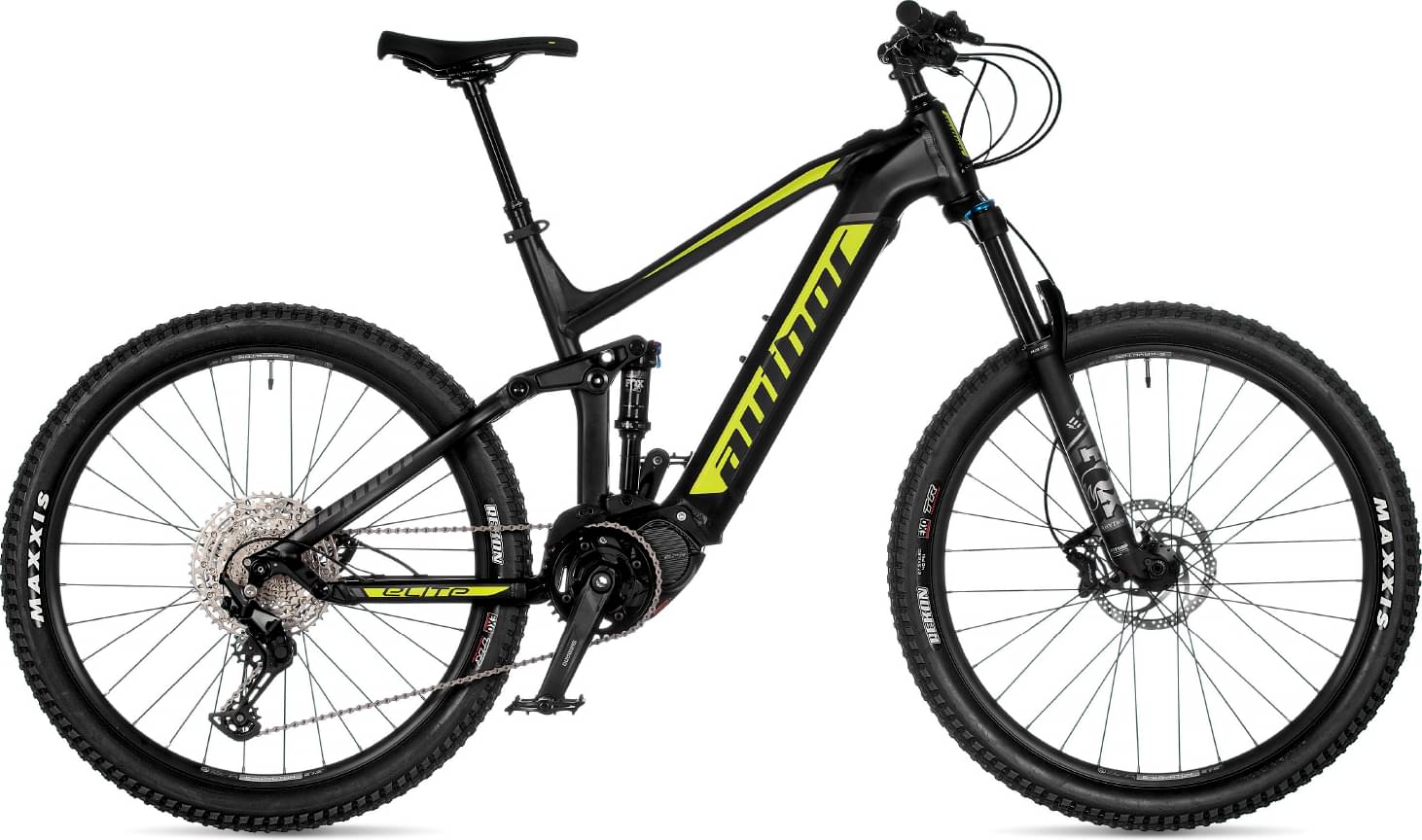

Elite 27.5 is an Author E Elite model. Author released 1 e-bike variation of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Author Elite 27.5 it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly heavier than average. To sum up, it’s 2.53% heavier than the average weight of Trail e-bikes.
Elite 27.5 components
Fork
The Elite 27.5 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Elite 27.5 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Elite 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 2 sizes. They vary from 168 cm – 189 cm (5.51 ft – 6.2 ft). In conclusion, it won’t take much to find one that’s right for you.
