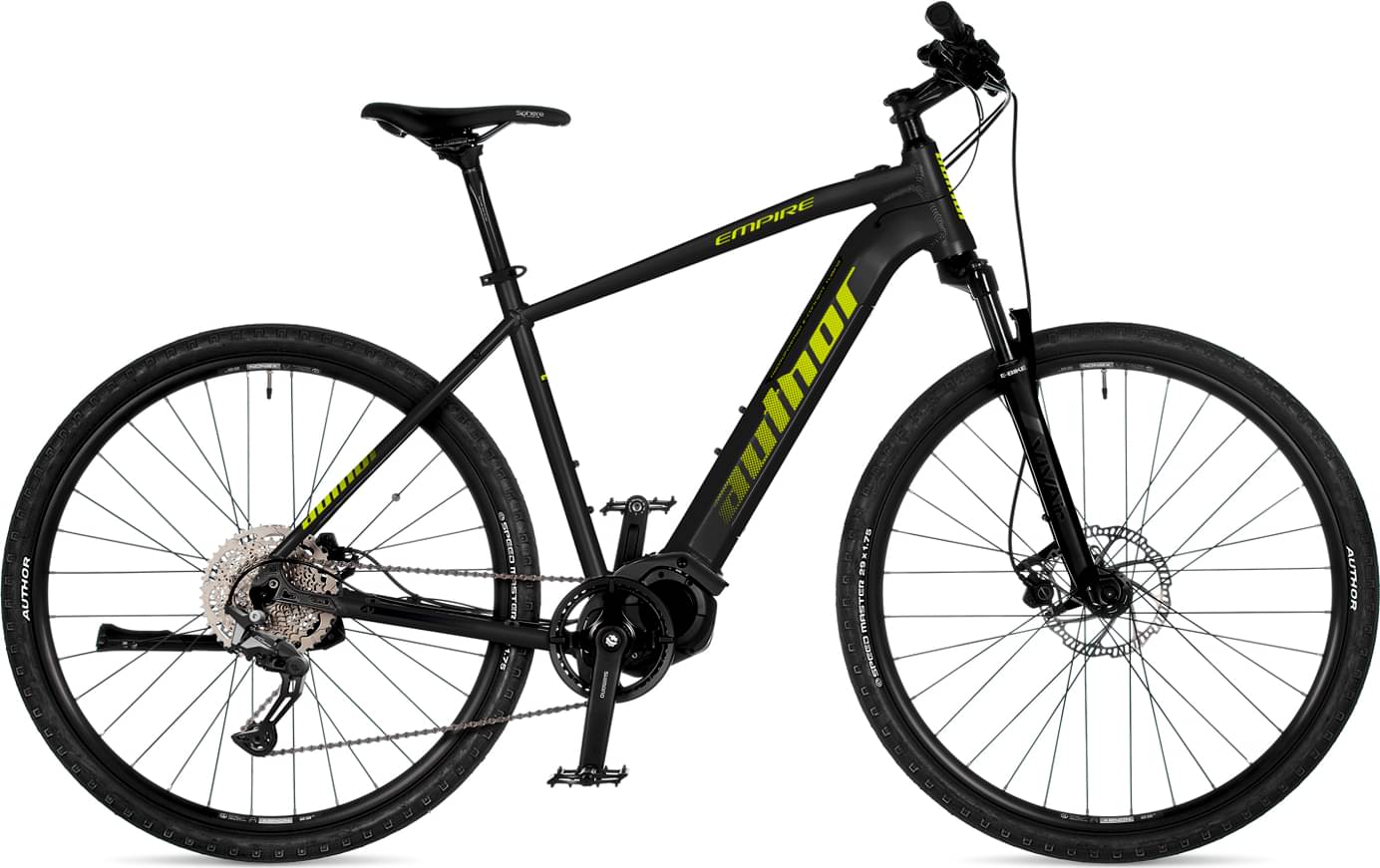

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST VIV AIR
-
Groupset CUES, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
155cm - 166cm
18"
164cm - 178cm
20"
175cm - 188cm
22"
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29" (integrated battery)
Suspension Fork
RST ViV Air TnL, air, lock out 1.5" tapered steerer (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Cues 6000
Shift Levers
SHIMANO Cues 6000 (10)
Cassette
SHIMANO CS-LG400-10, 11-48 (10)
Crank
SHIMANO Steps E-6100, 38 teeth, 170 / 175 mm cranks
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
HT platform
Wheels
Front Hub
AUTHOR Xenon, 32 holes
Rear Hub
AUTHOR Xenon, 32 holes
Rims
AUTHOR Xenon 29, 32 holes
Spokes
black stainless steel 2.2 mm
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO HD-M530, disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR, 15 mm, 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Sphere Gel
Seatpost
AUTHOR alloy (27.2)
Motor & Battery
Motor
SHIMANO Steps E-6100, 250 W
Battery
SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Front Center | 628 mm | 638 mm | 654 mm | 674 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 575 mm | 585 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1081 mm | 1091 mm | 1107 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 185 cm |
| Rider Max Height | 166 cm | 178 cm | 188 cm | 200 cm |
