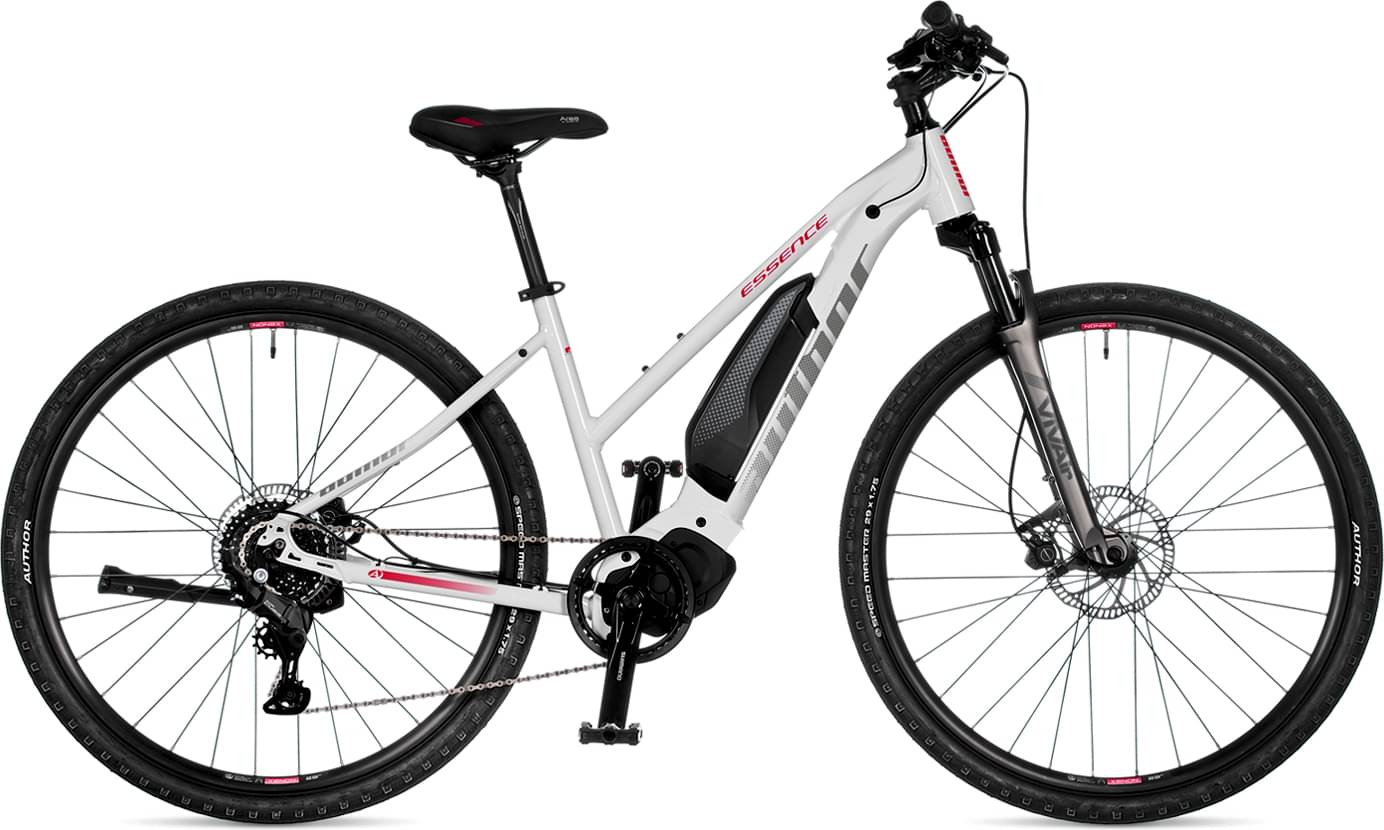

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST VIV AIR
-
Groupset CUES, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO E-8010 Li-Ion, 36 V, 14 Ah, 504 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
155cm - 169cm
19"
167cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29" (L)
Suspension Fork
RST ViV Air TnL, air, lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Cues 4000
Shift Levers
SHIMANO Cues 4000 (9)
Cassette
SHIMANO CS-LG300-9, 11-41 (9)
Crank
SHIMANO Steps E-5010, 38 teeth, 170 / 175 mm cranks
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
AUTHOR Radon, 32 holes
Rear Hub
AUTHOR Radon, 32 holes
Rims
AUTHOR Xenon 29, 32 holes
Spokes
black stainless steel 2.2 mm
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO HD-M280, disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR, 25 mm, 680 / 700 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Motor & Battery
Motor
SHIMANO Steps E-5000, 250 W
Battery
SHIMANO E-8010 Li-Ion, 36 V, 14 Ah, 504 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Front Center | 630 mm | 649 mm |
| Rake | 44 mm | 44 mm |
| Top Tube Length | 565 mm | 585 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 489 mm | 489 mm |
| Wheelbase | 1112 mm | 1132 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 182 cm |
