Bike details
Overview
Key information split into simple groups.

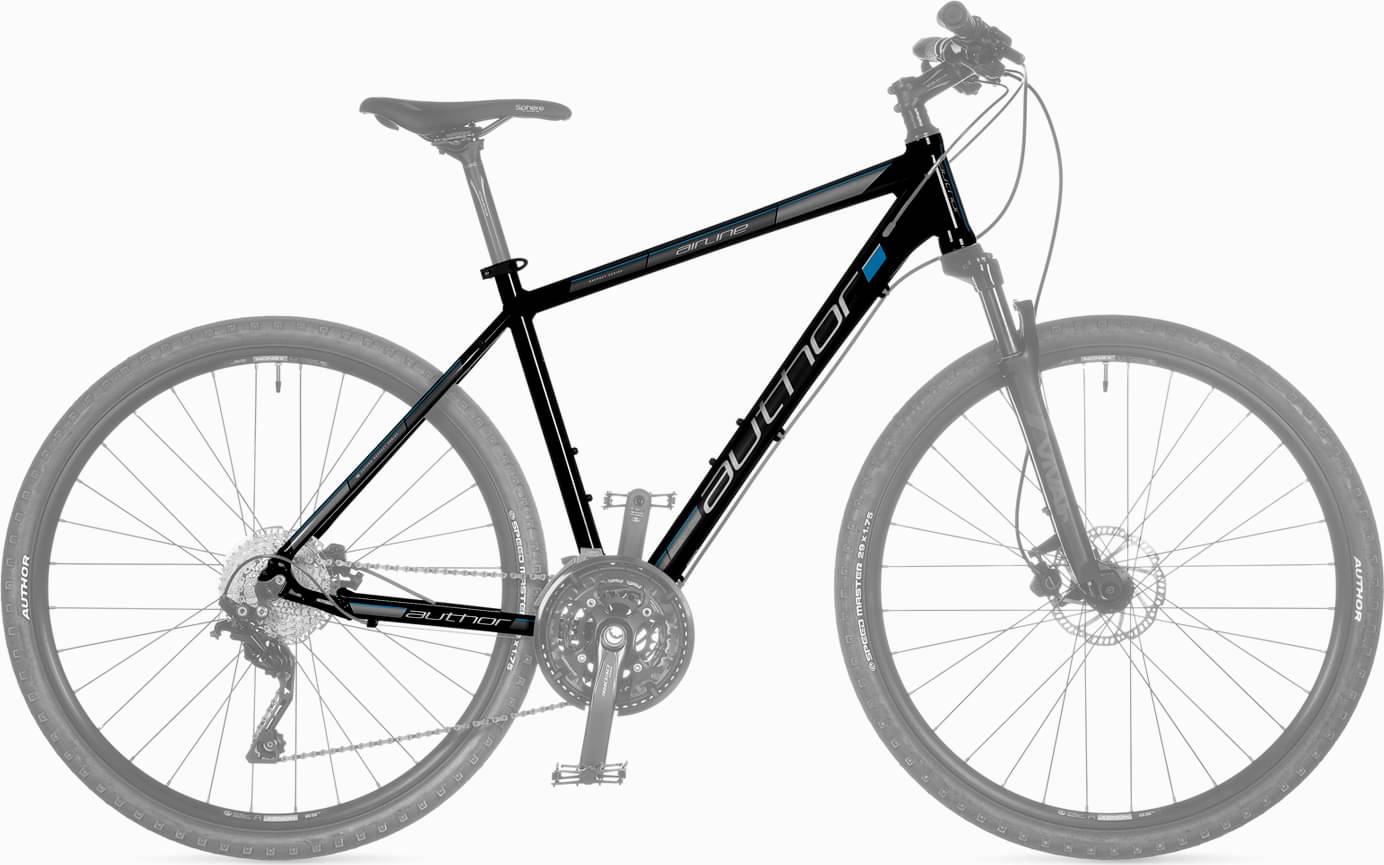

Frame summary
-
-
Frame Aluminum
Sizing
Recommended size guide.
18"
165cm - 178cm
20"
175cm - 188cm
22"
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted alloy 6061 Cross 29"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18" | 20" | 22" |
|---|---|---|---|
| Front Center | 633 mm | 654 mm | 674 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1076 mm | 1097 mm | 1117 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 178 cm | 188 cm | 200 cm |
