Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon
Sizing
Recommended size guide.
17"
171cm - 181cm
19"
179cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

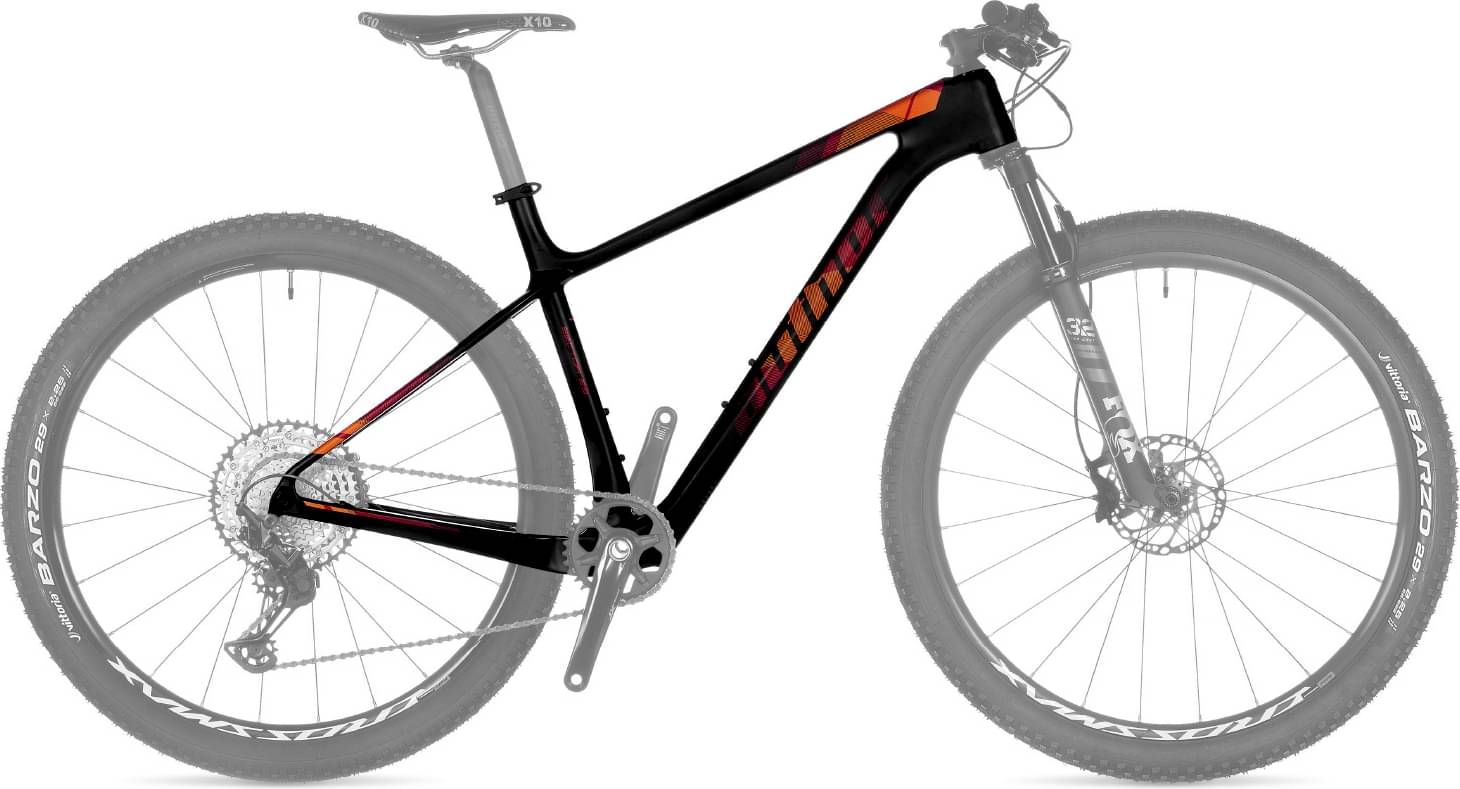

AUTHOR carbon Toray T700/800 monocoque 29"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.362 mm | 1.331 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 691 mm | 718 mm | 750 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 89 mm | 89 mm |
| Stack | 609 mm | 613 mm | 632 mm |
| Reach | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 611 mm | 638 mm | 668 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1118 mm | 1145 mm | 1177 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 181 cm | 190 cm | 202 cm |
