Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST NOVA
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 700c (ASL)
Suspension Fork
RST Nova ML lock out (60 mm)
Drivetrain
Rear Derailleur
SHIMANO Acera
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Acera (27)
Cassette
SHIMANO HG300-9, 11-34 teeth, 9 speed
Crank
SUNTOUR NCX, 44-32-22 teeth, 170mm cranks
Chain
KMC Z99
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
QUANDO Disc 32 holes
Rear Hub
QUANDO Disc 32 holes
Rims
AUTHOR Radon Cross 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR PANARACER Silk Road Cross 700 x 42c
Brakes
Brakes
TEKTRO Vela disc hydraulic (6" rotors)
Cockpit
Stem
UNO adjustable
Handlebar
AUTHOR 20mm/ 640-660mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 614 mm | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1045 mm | 1065 mm | 1086 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |

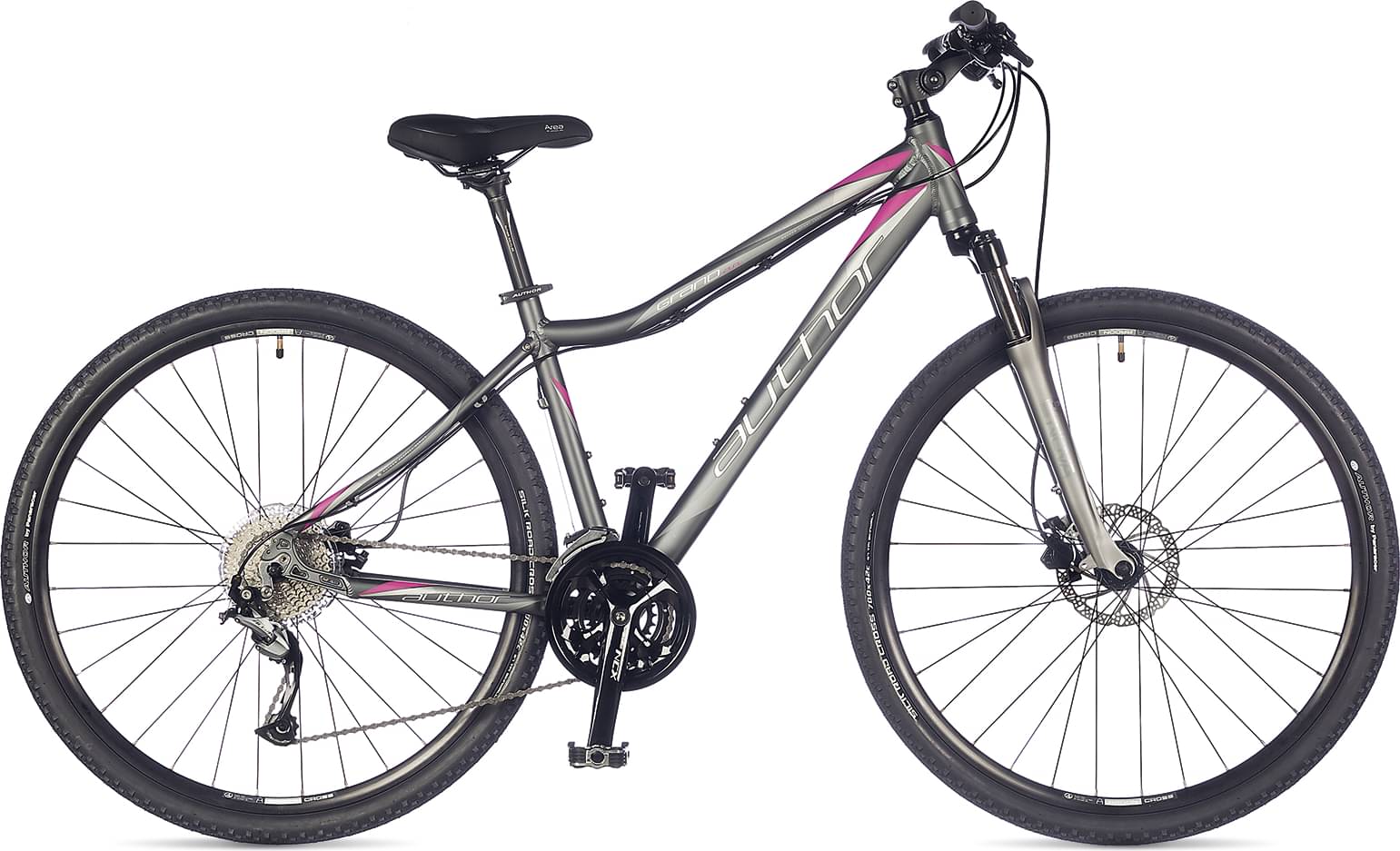

Model Overview
Grand ASL completes the Author Grand Asl model. Author released 9 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Grand ASL weighs 14.1 kg (31.09 lbs) and is slightly heavier than the average. In conclusion, the average Hybrid bike weighs 1.81% less than Grand ASL.
Grand ASL components
Fork
The RST NOVA is included from the factory. It has a travel distance of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Author Grand ASL 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Author Grand ASL bike has 3 sizes, in the range of 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, it won’t be difficult to find the right one for you.
