Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore, Alivio -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AUTHOR C-carbon monocoque 29"
Suspension Fork
RST F1RST 29 15 Air TRL air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Alivio (34.9)
Shift Levers
SHIMANO Alivio (27)
Cassette
SHIMANO HG-50-9 11-34 (9)
Crank
SHIMANO M590 44-32-22 teeth 170 / 175 mm cranks
Chain
SHIMANO HG-53
Pedals
SHIMANO M520 clipless
Wheels
Front Hub
AUTHOR Helium / Xenon Disc 15 mm thru axle white 32 holes
Rear Hub
AUTHOR Helium / Xenon Disc 15 mm thru axle white 32 holes
Rims
AUTHOR Neon Pro 29 black 32 holes
Spokes
black stainless steel 2.0 mm
Tires
GEAX Mezcal Kevlar 29" x 2.10"
Brakes
Brakes
TEKTRO Draco WH disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar 0 mm 660 / 680 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Summit
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 668 mm | 686 mm | 702 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Top Tube Length | 604 mm | 628 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 432 mm | 482 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1110 mm | 1128 mm | 1144 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |
About this model

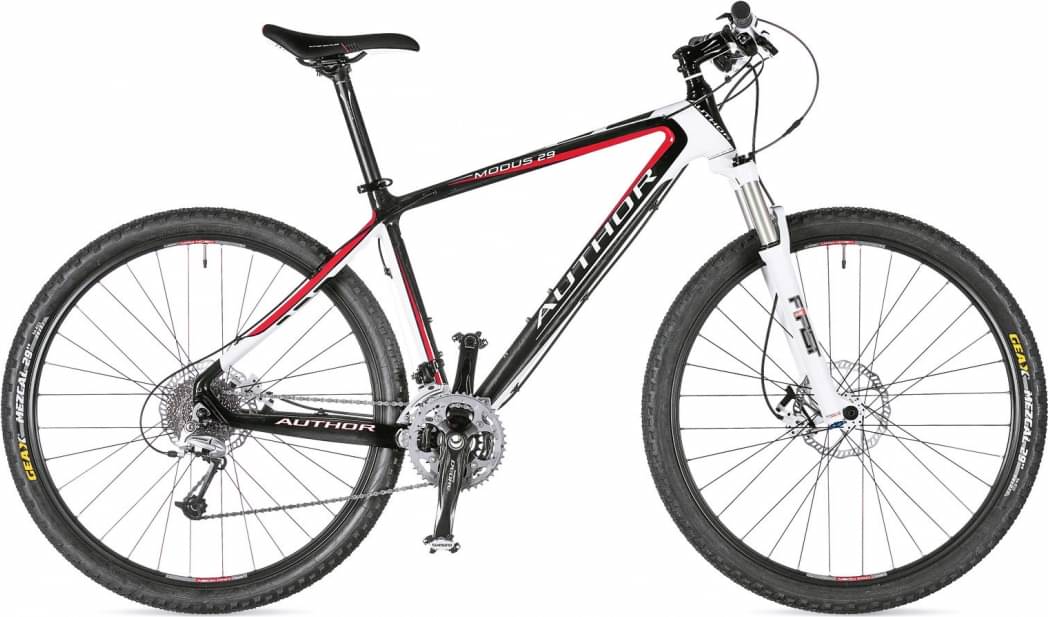

Modus 29 is an Author Modus model. There are 8 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.5 kg (27.56 lbs), the Modus 29 model is slightly heavier than average. In other words, this model is 0.81% heavier than the average Crosscountry bike.
Overview of components
Fork
The Modus 29 comes factory-installed with the RST F1RST fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Modus 29 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Modus 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 168 cm – 202 cm (5.51 ft – 6.63 ft). In short, you can easily find one that suits you.
