Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore, Shimano -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17.5"
171cm - 181cm
19"
179cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AUTHOR C carbon monocoque 29"
Suspension Fork
RST F1RST 29 15 TRL air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (20)
Cassette
SHIMANO HG500-10 11-42 (10)
Crank
SHIMANO (Boost) 36-26 teeth 170 / 175 mm cranks
Chain
KMC X10
Wheels
Front Hub
AUTHOR Helium 15 / Krypton 12 15 x 100 mm thru front axle Boost 12 x 148 mm thru rear axle 32 holes
Rear Hub
AUTHOR Helium 15 / Krypton 12 15 x 100 mm thru front axle Boost 12 x 148 mm thru rear axle 32 holes
Rims
AUTHOR Xenon Pro 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo kevlar 29" x 2.25"
Brakes
Brakes
TEKTRO Gemini disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar 9° 700 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Navigator
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17.5" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 686 mm | 696 mm | 717 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 88 mm | 86 mm |
| Stack | 631 mm | 640 mm | 649 mm |
| Reach | 431 mm | 438 mm | 454 mm |
| Top Tube Length | 623 mm | 633 mm | 653 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 454 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1117 mm | 1127 mm | 1148 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 181 cm | 190 cm | 202 cm |
About this model

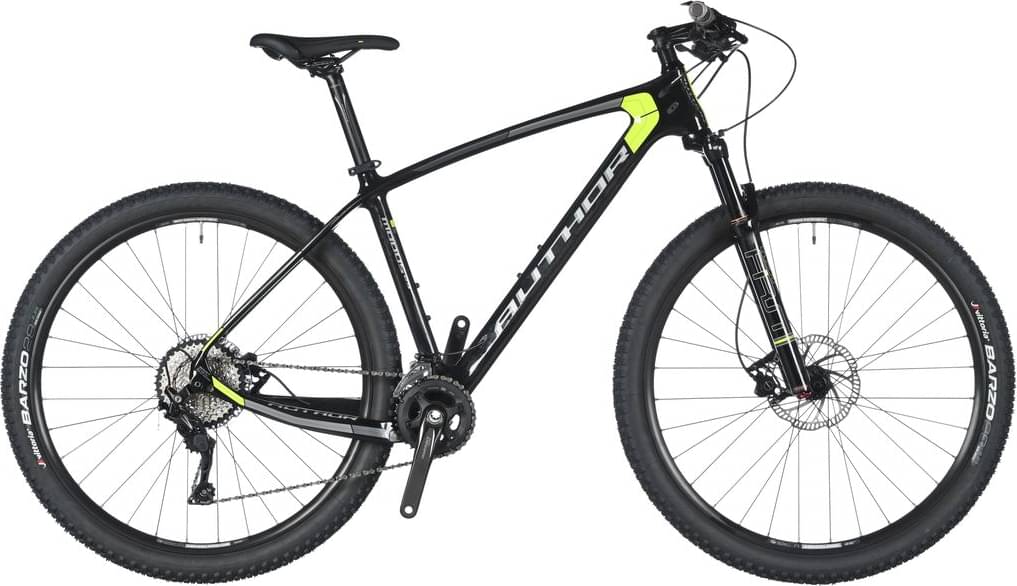

Modus 29 belongs to the Author Modus model. Author released 8 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Modus 29 weighs 12.2 kg (26.9 lbs) and is slightly lighter than the average. To sum up, it’s 1.64% lighter than the average weight of Crosscountry bikes.
Modus 29 components
Fork
The RST F1RST is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Modus 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Modus 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 171 cm – 202 cm (5.61 ft – 6.63 ft). In short, you can easily find one that suits you.
