Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
171cm - 181cm
19"
179cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AUTHOR carbon Toray T700/800 monocoque 29"
Suspension Fork
FOX 32 Float SC 29 100 Remote air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT (12)
Cassette
SHIMANO CS-M7100 10-51 (12)
Crank
SHIMANO XT 34 teeth 170 / 175 mm cranks
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO M7100
Wheels
Front Hub
MAVIC Crossmax 29 wheel set 24 holes 15 × 110 mm thru front axle 12 × 148 mm thru rear axle
Rear Hub
MAVIC Crossmax 29 wheel set 24 holes 15 × 110 mm thru front axle 12 × 148 mm thru rear axle
Rims
MAVIC Crossmax 29 wheel set 24 holes
Spokes
MAVIC
Tires
VITTORIA Barzo foldable 29" × 2.25"
Brakes
Brakes
SHIMANO SLX disc hydraulic (6" rotors)
Cockpit
Stem
RITCHEY WCS C220
Handlebar
RITCHEY MTN WCS 2x9 9° 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
PROLOGO Nago Evo X10
Seatpost
RITCHEY Comp Carbon (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 691 mm | 718 mm | 750 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 89 mm | 89 mm |
| Stack | 610 mm | 614 mm | 633 mm |
| Reach | 426 mm | 451 mm | 476 mm |
| Top Tube Length | 612 mm | 639 mm | 669 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1119 mm | 1146 mm | 1178 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 181 cm | 190 cm | 202 cm |
Model Overview

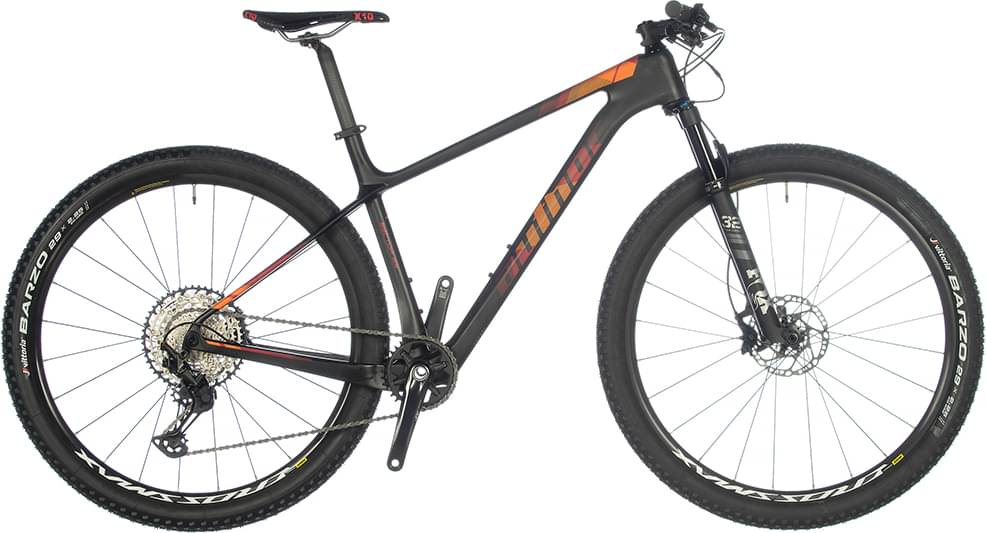

Sector 29 belongs to the Author Sector model. Author launched 9 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Sector 29 has a weight of 10.3 kg (22.71 lbs). In other words, this model is 20.39% lighter than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Sector 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sector 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 171 cm – 202 cm (5.61 ft – 6.63 ft). In conclusion, it won’t take much to find one that’s right for you.
