Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
171cm - 181cm
19"
179cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AUTHOR carbon Toray T700/800 monocoque 29"
Suspension Fork
FOX 32 Float 29 SC 100 Remote air, remote lock out, Boost 15 × 110 mm thru axle, 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT (12)
Cassette
SHIMANO CS-M7100, 10-51 (12)
Crank
SHIMANO XT, 34 teeth, 170 / 175 mm cranks
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO M7100
Wheels
Front Hub
MAVIC Crossmax 29 CL wheel set, 24 holes, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle
Rear Hub
MAVIC Crossmax 29 CL wheel set, 24 holes, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle
Rims
MAVIC Crossmax 29 CL wheel set, 24 holes
Spokes
MAVIC
Tires
VITTORIA Barzo aramid 29" × 2.25"
Brakes
Brakes
SHIMANO SLX, disc hydraulic (6" rotors)
Cockpit
Stem
RITCHEY WCS C220
Handlebar
RITCHEY MTN WCS 2 × 9, 9°, 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
PROLOGO Nago Evo X10
Seatpost
RITCHEY Comp Carbon (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.362 mm | 1.331 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 691 mm | 718 mm | 750 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 89 mm | 89 mm |
| Stack | 609 mm | 613 mm | 632 mm |
| Reach | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 611 mm | 638 mm | 668 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1118 mm | 1145 mm | 1177 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 181 cm | 190 cm | 202 cm |
About this model

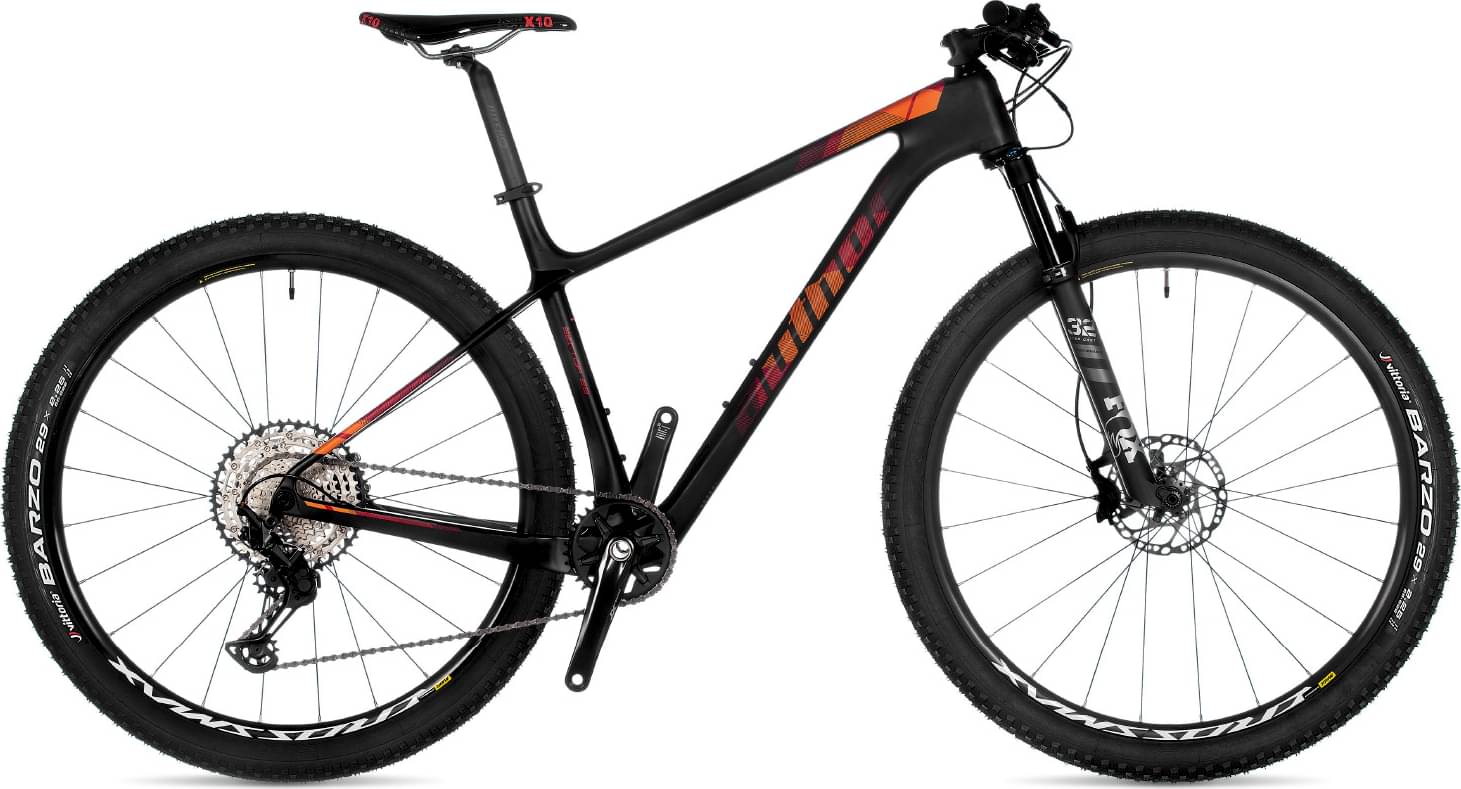

Sector 29 is an Author Sector model. There are 10 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Sector 29 weighs 10.3 kg (22.71 lbs) and is much lighter than the average. To sum up, it’s 20.39% lighter than the average weight of Crosscountry bikes.
Sector 29 components
Fork
The Fox Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Sector 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Sector 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 171 cm – 202 cm (5.61 ft – 6.63 ft). In conclusion, you won’t have a problem finding one that suits you.
