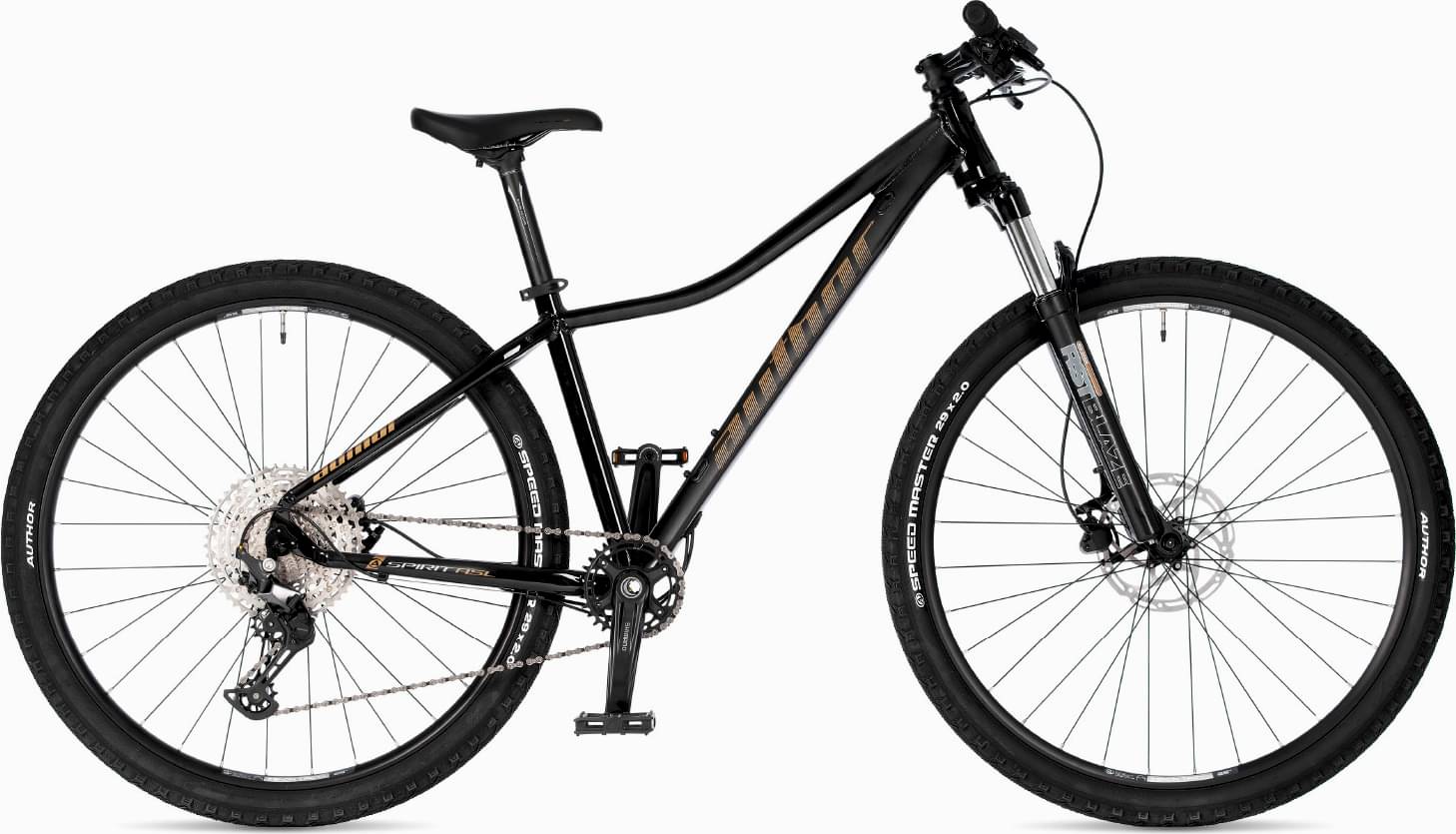

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
29"/16"
155cm - 168cm
29"/18"
166cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
hydroformed alloy 6061 29" (ASL)
Suspension Fork
RST Blaze 29 TnL, lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (12)
Cassette
SHIMANO CS-M6100-12, 10-51 (12)
Crank
SHIMANO M510-1, 32 teeth, 170 / 175 mm cranks
Chain
KMC X12
Pedals
plastic
Wheels
Front Hub
QUANDO Disc / SHIMANO, 32 holes
Rear Hub
QUANDO Disc / SHIMANO, 32 holes
Rims
AUTHOR Xenon TRC 29, 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master, 29" × 2.00"
Brakes
Brakes
TEKTRO HD-M280, disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar, 9°, 680 / 700 mm
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 29"/16" | 29"/18" |
|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.471 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 685 mm | 706 mm |
| Rake | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm |
| Stack | 622 mm | 631 mm |
| Reach | 412 mm | 429 mm |
| Top Tube Length | 590 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1128 mm | 1149 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 166 cm |
| Rider Max Height | 168 cm | 182 cm |
