Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST NOVA
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 700c (ASL)
Suspension Fork
RST Nova ML lock out (60 mm)
Drivetrain
Rear Derailleur
SHIMANO Acera
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Acera (27)
Cassette
SHIMANO HG300-9, 11-34 teeth, 9 speed
Crank
SUNTOUR NCX, 44-32-22 teeth, 170mm cranks
Chain
KMC Z99
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
AUTHOR Argon Cross 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR PANARACER Silk Road Cross 700 x 42c
Brakes
Brakes
TEKTRO V
Cockpit
Stem
UNO adjustable
Handlebar
AUTHOR 20mm/ 640-660mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 614 mm | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1045 mm | 1065 mm | 1086 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

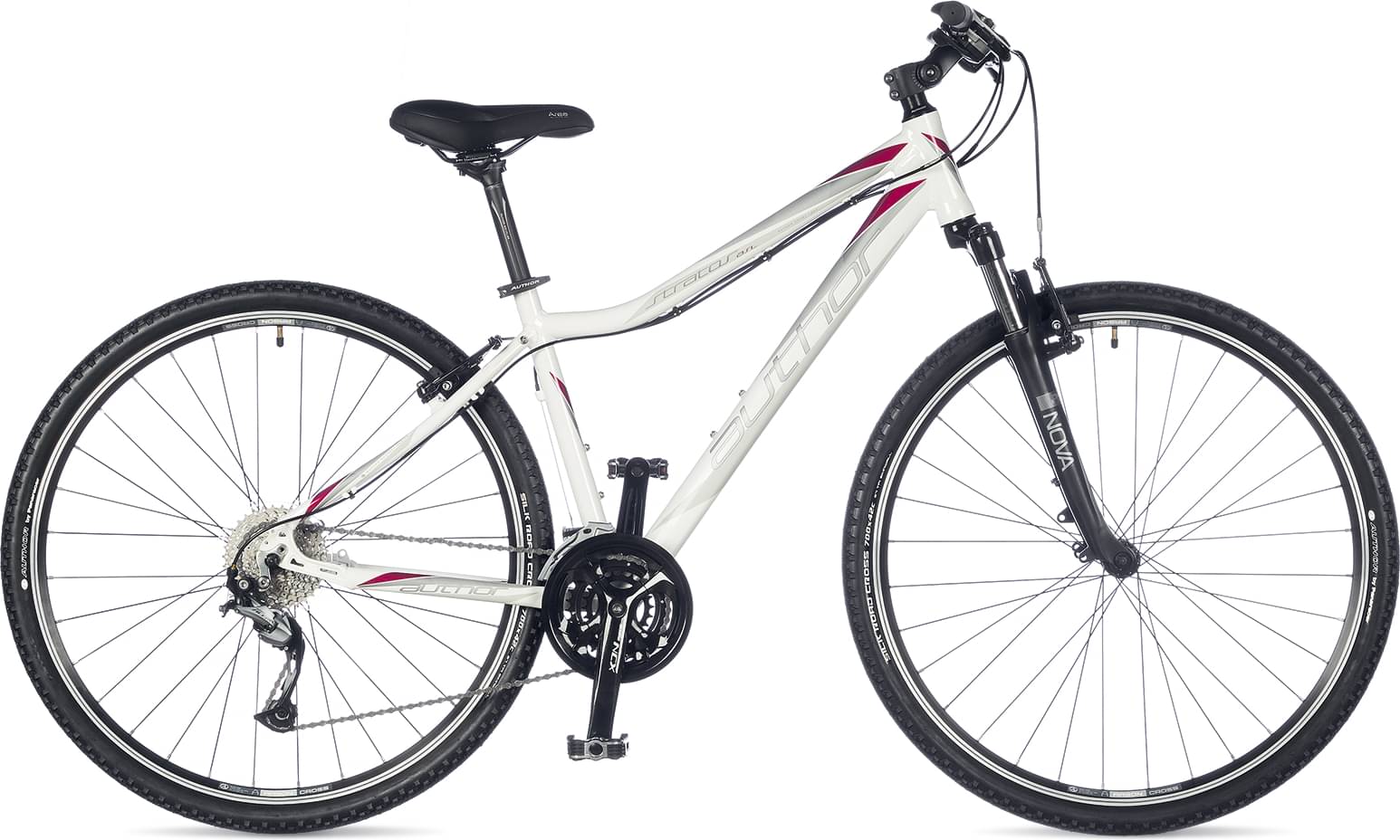

Stratos ASL completes the Author Stratos model. Author launched 9 bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.9 kg (30.64 lbs), the Stratos ASL model is slightly heavier than average. In other words, this model is 0.36% heavier than the average Hybrid bike.
Overview of components
Fork
The Stratos ASL comes factory-installed with the RST NOVA fork. This has a travel range of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Stratos ASL bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, you can easily find one that suits you.
