Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST CAPA
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29" (ASL)
Suspension Fork
RST Capa 29 ML lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Acera (27)
Cassette
SHIMANO HG200-9 11-36 (9)
Crank
SUNTOUR NCX 44-32-22 teeth 170 mm cranks
Chain
KMC Z9
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
AUTHOR Argon 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO V
Cockpit
Stem
UNO adjustable
Handlebar
AUTHOR 25 mm 660 / 680 mm
Grips
AUTHOR ErgoGrip Lock
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 614 mm | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1055 mm | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
Model Overview

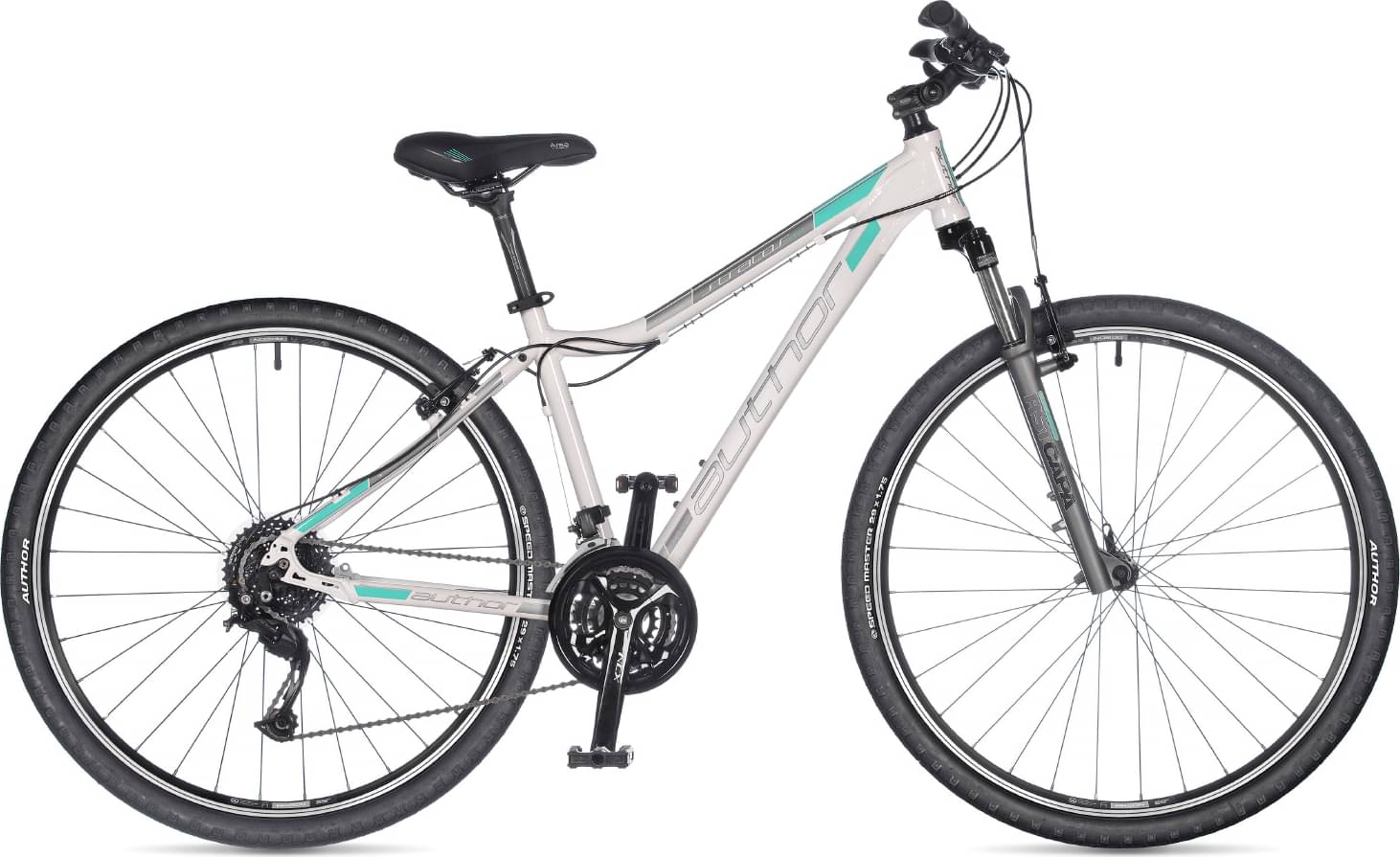

Stratos ASL is part of the Author Stratos model. 9 bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Stratos ASL has a weight of 13.9 kg (30.64 lbs). In other words, this model is 0.36% heavier than the average Hybrid bike.
Overview of components
Fork
The RST CAPA is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Stratos ASL are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, it won’t be difficult to find the right one for you.
