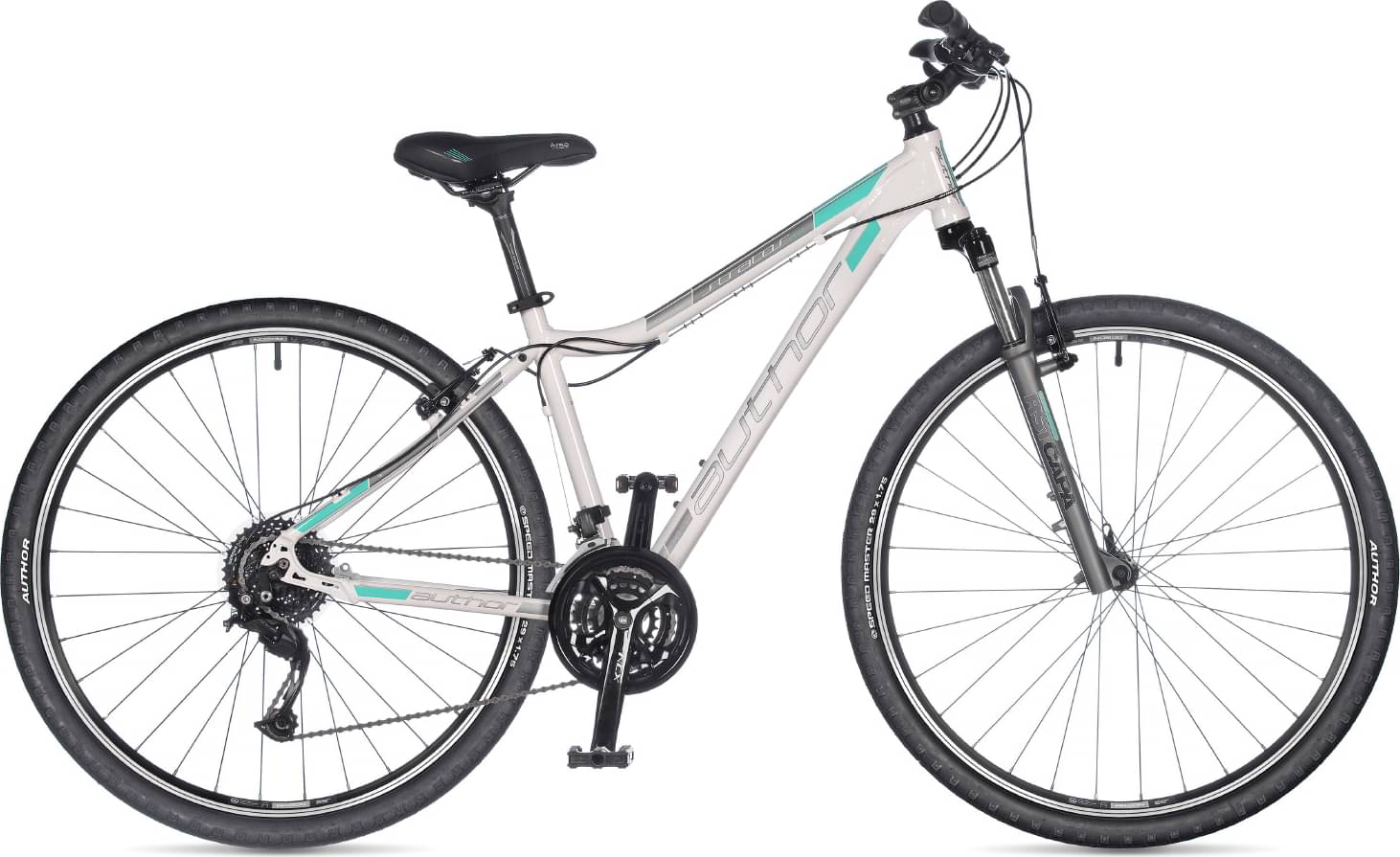

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST CAPA
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29" (ASL)
Suspension Fork
RST Capa 29 ML lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Acera (27)
Cassette
SHIMANO HG200-9, 11-36 (9)
Crank
PROWHEEL Burner, 44-32-22 teeth, 170 / 175 mm cranks
Chain
KMC Z9
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
QUANDO, 32 holes
Rear Hub
QUANDO, 32 holes
Rims
AUTHOR Argon 29, 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO V
Cockpit
Stem
UNO adjustable
Handlebar
AUTHOR 25 mm, 660 / 680 mm
Grips
AUTHOR ErgoGrip Lock
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Front Center | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm |
| Top Tube Length | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 170 cm |
| Rider Max Height | 172 cm | 185 cm |
Model Overview
Stratos ASL belongs to the Author Stratos model. Author launched 9 bikes of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.99 kg (30.84 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.9 kg (30.64 lbs), Author bike is slightly lighter than average. In other words, this model is 0.65% lighter than the average Hybrid bike.
Overview of components
Fork
The RST CAPA is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Stratos ASL 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stratos ASL comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 155 cm – 185 cm (5.09 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
