Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted hydroformed alloy 6061 29'
Suspension Fork
ROCK SHOX Recon Gold RL Remote 29 15 Solo Air air, remote lock out 15 mm thru axle 1.5' tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO SLX
Front Derailleur
SHIMANO SLX (34.9)
Shift Levers
SHIMANO SLX (22)
Cassette
SHIMANO M7000-11 11-42 (11)
Crank
SHIMANO SLX 38-28 teeth 170 / 175 mm cranks
Chain
SHIMANO HG601
Wheels
Front Hub
AUTHOR Helium 15 / Xenon 15 x 100mm thru axle 32 holes
Rear Hub
AUTHOR Helium 15 / Xenon 15 x 100mm thru axle 32 holes
Rims
AUTHOR Krypton 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo kevlar 29' x 2.25'
Brakes
Brakes
SHIMANO Deore disc hydraulic (7' rotors)
Cockpit
Stem
RITCHEY Comp 4-Axis
Handlebar
RITCHEY Comp Flat 10° 660 / 700 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
PROLOGO Nago Evo X10
Seatpost
RITCHEY Comp (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 678 mm | 698 mm | 712 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 604 mm | 629 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1115 mm | 1135 mm | 1149 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |
About this model

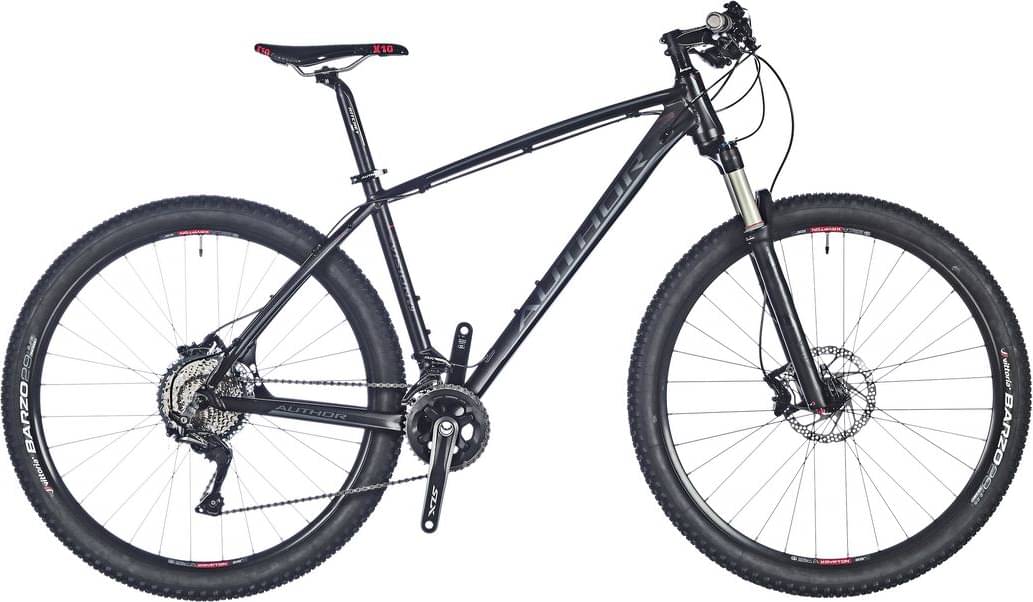

Vision 29 is part of the Author Vision model. 7 bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Vision 29 has a weight of 12.1 kg (26.68 lbs). In short, the average Crosscountry bike weight is 2.48% higher than this one.
Vision 29 components
Fork
The fork installed on this bike is the RockShox Recon Gold RL model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Vision 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Vision 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Author Vision 29 bike has 3 sizes, in the range of 168 cm – 202 cm (5.51 ft – 6.63 ft). In short, you can easily find one that suits you.
