Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted hydroformed alloy 6061 29"
Suspension Fork
ROCK SHOX Recon Gold RL Remote 29 15 Solo Air air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Front Derailleur
SHIMANO SLX (34.9)
Shift Levers
SHIMANO SLX (22)
Cassette
SHIMANO M7000-11 11-42 (11)
Crank
SHIMANO SLX 38-28 teeth 170 / 175 mm cranks
Chain
SHIMANO HG601
Wheels
Front Hub
AUTHOR Helium 15 / Xenon 12 15 x 100 mm thru front axle 12 x 142 mm thru rear axle 32 holes
Rear Hub
AUTHOR Helium 15 / Xenon 12 15 x 100 mm thru front axle 12 x 142 mm thru rear axle 32 holes
Rims
AUTHOR Krypton 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo kevlar 29" x 2.25"
Brakes
Brakes
SHIMANO Deore disc hydraulic (7" rotors)
Cockpit
Stem
RITCHEY Comp 4-Axis
Handlebar
RITCHEY Comp Flat 10° 660 / 700 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
PROLOGO Nago Evo X10
Seatpost
RITCHEY Comp (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 677 mm | 697 mm | 718 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 627 mm | 636 mm | 646 mm |
| Reach | 411 mm | 428 mm | 445 mm |
| Top Tube Length | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1111 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |
About this model

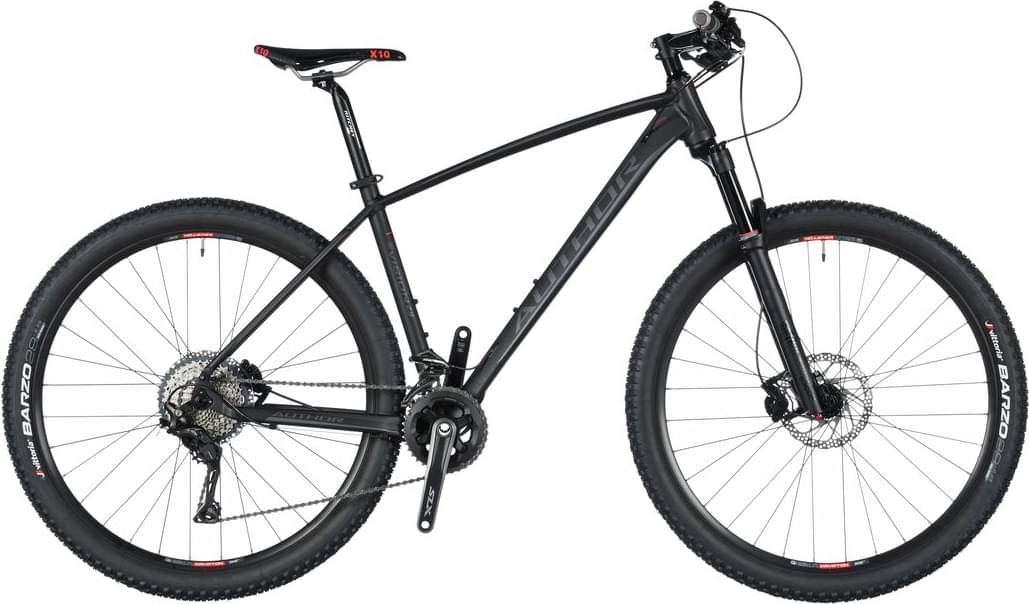

Vision 29 is an Author Vision model. 7 bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 12.1 kg (26.68 lbs), the Vision 29 model is slightly lighter than average. In other words, this model is 2.48% lighter than the average Crosscountry bike.
Vision 29 components
Fork
The Vision 29 comes factory-installed with the RockShox Recon Gold RL fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Vision 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Vision 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 168 cm – 202 cm (5.51 ft – 6.63 ft). In short, you can easily find one that suits you.
