Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
171cm - 181cm
19"
179cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted hydroformed alloy 6061 29"
Suspension Fork
ROCK SHOX Recon Gold RL Remote 29 15 Solo Air air, remote lock out, 15 × 110 mm thru axle, 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO SLX (12)
Cassette
SHIMANO CS-M7100 10-51 (12)
Crank
SHIMANO SLX 34 teeth 170 / 175 mm cranks
Chain
SHIMANO M7100
Wheels
Front Hub
AUTHOR / SHIMANO SLX 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rear Hub
AUTHOR / SHIMANO SLX 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rims
AUTHOR Krypton TRC 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo foldable 29" × 2.25"
Brakes
Brakes
SHIMANO Deore disc hydraulic (7" rotors)
Cockpit
Stem
RITCHEY Comp 4-Axis
Handlebar
RITCHEY MTN Comp 2×9 9° 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
PROLOGO Nago Evo X10
Seatpost
RITCHEY Comp (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 677 mm | 697 mm | 718 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 627 mm | 636 mm | 646 mm |
| Reach | 411 mm | 428 mm | 445 mm |
| Top Tube Length | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1111 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 181 cm | 190 cm | 202 cm |

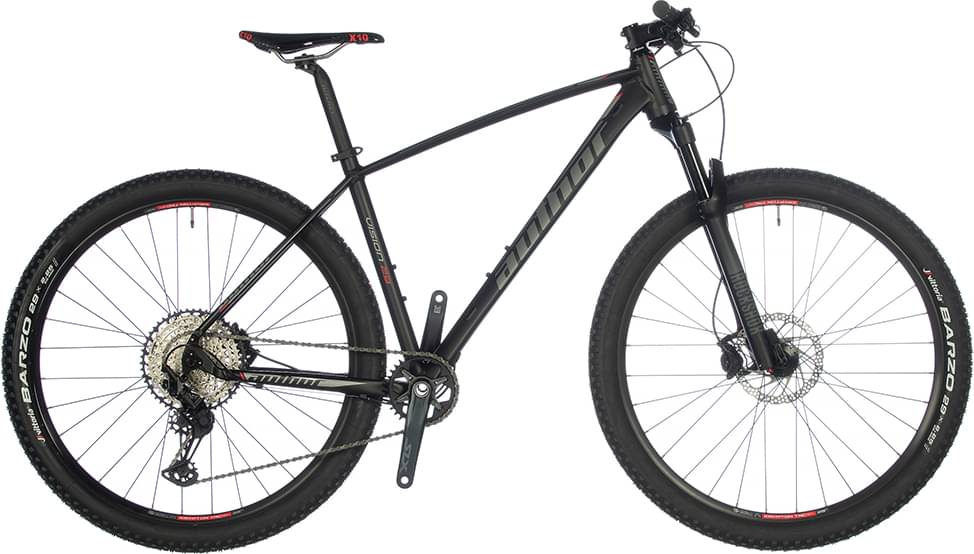

About this model
Vision 29 completes the Author Vision model. Author released 7 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Author Vision 29 it’s weighing 11.8 kg (26.01 lbs). At this weight, is a bit lighter than average. To sum up, it’s 5.08% lighter than the average weight of Crosscountry bikes.
Vision 29 components
Fork
Author Vision 29 2022 bike is equipped with the RockShox Recon Gold RL fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Author Vision 29 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Vision 29 comes in 3 sizes, that range from 171 cm – 202 cm (5.61 ft – 6.63 ft). In conclusion, finding one for you shouldn’t be a problem.
