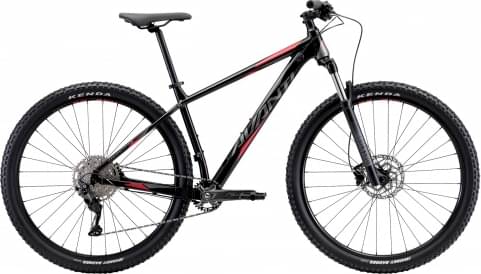

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Formtech Ultralight Alloy, Replaceable Hanger - full internal cables
Suspension Fork
RockShox Judy TK, 100mm, Tapered Steerer, Lock-out
Drivetrain
Rear Derailleur
Shimano Deore M5120 Shadow Plus
Shift Levers
Shimano Deore 10sp
Cassette
Shimano M4100 Deore Cassette, 11-46T, 10sp
Crank
Shimano Deore M5100-1, 1x10sp with 30T chainring
Bottom Bracket
PressFit 92
Chain
KMC X10
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Shimano TX505 Alloy Centrelock Cassette 32H
Rear Hub
Shimano TX505 Alloy Centrelock Cassette 32H
Rims
Weinmann XRD28 Double-wall Alloy 32H
Spokes
Stainless Steel with Brass Nipples
Tires
Kenda Honey Badger 29x2.20 with FV tube
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180/160mm Rotors
Brake Levers
Shimano MT200 Hydraulic
Cockpit
Handlebar
Syncros 3.0 Butted Alloy, 31.8mm with 12mm rise, 9 deg sweep
Grips
Syncros Trail with VEXK
Headset
Semi-Integrated Aheadset 1-1/8"-1.5"
Seat
Saddle
Syncros ER2.5
Seatpost
Zero Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 654 mm | 663 mm | 684 mm | 687 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1076 mm | 1086 mm | 1107 mm | 1110 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 751 mm | 765 mm | 782 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
