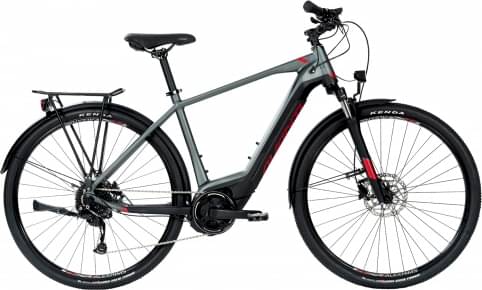

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch Powertube 500Wh Internal -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Alloy with Ultra Light butted tubing, fully-integrated battery and internal cables
Suspension Fork
Suntour NEX E-25 HLO, 60mm, 30mm stanchions, tapered steerer, hydraulic lockout
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed
Shift Levers
Shimano Alivio 9 speed
Cassette
Shimano HG200 Cassette, 9-speed 11-36T
Crank
Prowheel Alloy, 38T
Chain
KMC X9
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Shimano M3050 Centrelock Cassette 32H
Rear Hub
Shimano M3050 Centrelock Cassette 32H
Rims
Alex TD26 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Small Block 8 29 x 1.75 with K Shield, reflective logos & AV tube
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180 front/160 rear Centrelock Rotors
Brake Levers
Shimano MT200 hydraulic
Cockpit
Handlebar
Alloy riser bar, 15deg rear sweep
Grips
Ergonomic comfort
Headset
Integrated Threadless 1/8th-1.5" tapered
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Alloy Micro Adjust 31.6mm
Motor & Battery
Motor
Bosch G3 Active Line Plus
Battery
Bosch Powertube 500Wh Internal
Charger
Bosch Std 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.541 mm | 1.595 mm |
| Front Center | 659 mm | 664 mm | 669 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 71 mm | 71 mm |
| Stack | 606 mm | 627 mm | 646 mm |
| Reach | 404 mm | 407 mm | 405 mm |
| Top Tube Length | 595 mm | 605 mm | 615 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1125 mm | 1130 mm | 1135 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 777 mm | 810 mm | 842 mm |
| Wheels | 700 | 700 | 700 |
