avanti Giro F1 2024

2024 Urban
Open compare Use advisor

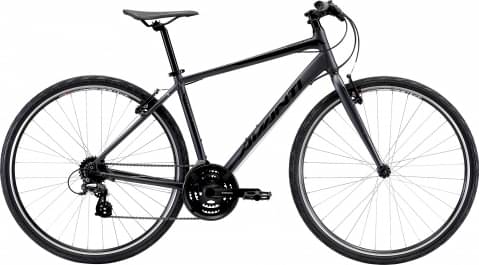

Avanti Giro F1 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Tourney, Altus
  • Suspension Rigid
  • Drivetrain 3 × 7
  • Brakes Rim
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

ADT 6061 Formtech Alloy

Suspension Fork

Cr-Mo 1-1/8" Steerer

Drivetrain

Rear Derailleur

Shimano Altus

Front Derailleur

Shimano TX510

Shift Levers

Shimano EF500 21-Speed

Cassette

Shimano HG200-7 12-28T 7-Speed

Crank

Shimano TY301 48/38/28T

Bottom Bracket

Cartridge

Chain

KMC Z7

Wheels

Front Hub

Alloy QR Cassette 32H

Rear Hub

Alloy QR Cassette 32H

Rims

Weinmann QR17 Double-wall Alloy 32H

Spokes

Stainless Steel

Tires

City 700 x 35c with AV tubes

Brakes

Brakes

Alloy Mini V-Brake

Brake Levers

Shimano

Cockpit

Handlebar

Alloy 31.8 with 9deg back sweep and 12mm rise, 620mm

Grips

Zero Strike Dual Compound

Headset

Integrated Aheadset 1-1/8"

Seat

Saddle

Zero Sport

Seatpost

Alloy Micro Adjust 27.2mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.448 mm1.476 mm1.507 mm1.496 mm
Front Center
617 mm632 mm651 mm677 mm
Rake
48 mm48 mm48 mm48 mm
Trail
69 mm69 mm72 mm66 mm
Stack
566 mm589 mm618 mm636 mm
Reach
391 mm399 mm410 mm425 mm
Top Tube Length
560 mm575 mm595 mm615 mm
Seat Tube Angle
73.5 °73.5 °73.5 °73.5 °
Seat Tube Length
420 mm460 mm500 mm540 mm
Head Tube Angle
71 °71 °71 °71 °
Head Tube Length
130 mm155 mm185 mm205 mm
Chainstay Length
440 mm440 mm440 mm440 mm
Wheelbase
1047 mm1063 mm1082 mm1108 mm
Bottom Bracket Drop
70 mm70 mm70 mm70 mm
Standover Height
709 mm740 mm772 mm803 mm
Wheels700700700700
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
