Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 145mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, X1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 500Wh Internal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight Butted tubing, 145mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m, stash box with tools
Suspension Fork
Rockshox 35 Silver TK Solo Air, 160mm, air spring, 1.5" taper, fixed rebound, lock-out, Boost 110 15mm axle - S=27.5, M/L/XL=29er
Rear Shock
Rockshox Delux Select + Debonair, rebound adjust
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12 speed
Cassette
SRAM PG-1210 Cassette, 11-50T, 12 speed
Crank
SRAM X1 1000 Eagle,DUB, 32T
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM SX Eagle
Wheels
Front Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rear Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rims
Alex EXR 30 Double-wall Alloy with eyelet 32H, Tubeless Ready
Spokes
Stainless steel
Tires
Fr: Maxxis Minion DHF 3CMaxxTerra/EXO 2.5"; Rr Maxxis Aggressor, 3CMaxxTerra/EXO 2.3" (2.5" on S size). Foldable, Tubeless Ready
Brakes
Brakes
Shimano MT420 hydraulic, 203 front/180mm rear rotors
Brake Levers
Shimano MT401hydraulic
Cockpit
Handlebar
Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Lock-on
Headset
Integrated Threadless 1 1/8th - 1.5" (with extra lower geometry adjust cup for 27.5+ )
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Motor & Battery
Motor
Bosch G4 Performance Line CX
Battery
Bosch Powertube 500Wh Internal
Charger
Bosch Std 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.374 mm | 1.36 mm | 1.355 mm |
| Bottom Bracket Height | 325 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 757 mm | 783 mm | 804 mm | 828 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 115 mm | 116 mm | 115 mm |
| Stack | 620 mm | 625 mm | 639 mm | 657 mm |
| Reach | 431 mm | 455 mm | 470 mm | 485 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 641 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 515 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1193 mm | 1219 mm | 1240 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 740 mm | 768 mm | 783 mm | 808 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

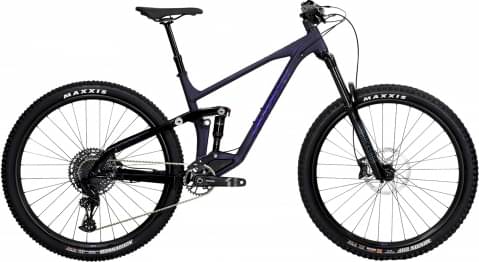

Hammer LT1 is part of the Avanti E Hammer model. 1 e-bike variation carries this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Hammer LT1 comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Avanti Hammer LT1 e-bike has the Rockshox Delux Select + Debonair model installed, and has a travel of 145mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Hammer LT1 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Hammer LT1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Avanti Hammer LT1 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
