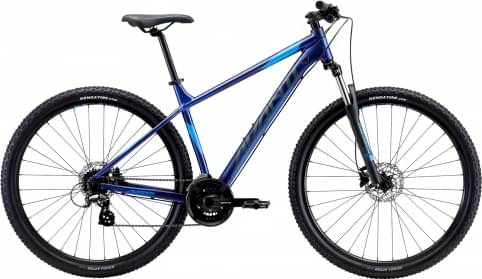

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Formtech Alloy, Replaceable Hanger, internal brake cable
Suspension Fork
SR Suntour XCE, 100mm Travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TY500
Shift Levers
Shimano Altus M315 RapidFire Plus 21-Speed
Cassette
Shimano HG200 Cassette, 12-28T 7-Speed
Crank
Shimano TY301 42/34/24T
Bottom Bracket
Cartridge
Chain
KMC Z-7
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Front: Shimano TX505 Alloy, Rear: TY505 Alloy Centrelock Cassette 32H
Rear Hub
Front: Shimano TX505 Alloy, Rear: TY505 Alloy Centrelock Cassette 32H
Rims
Weinmann XRD28 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Aptor 27.5x2.20 or 29x2.20" MTB tyre with AV tube
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 160mm Rotors
Brake Levers
Shimano MT200 Hydraulic
Cockpit
Handlebar
Alloy 31.8 with 9deg back sweep and 12mm rise, XS=640mm,S=660mm, M-XXL=680mm
Grips
Zero Strike Dual Compound
Headset
Semi-Integrated Threadless 1-1/8"
Seat
Saddle
Zero Zealth Sport
Seatpost
Zero Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Front Center | 628 mm | 644 mm | 659 mm | 664 mm | 680 mm | 673 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 555 mm | 570 mm | 590 mm | 605 mm | 620 mm | 625 mm |
| Seat Tube Angle | 73.3 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1055 mm | 1072 mm | 1087 mm | 1098 mm | 1114 mm | 1107 mm |
| Bottom Bracket Drop | 55 mm | 52 mm | 52 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 722 mm | 738 mm | 763 mm | 784 mm | 814 mm | 843 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
