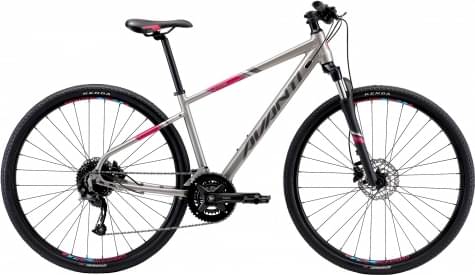

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Butted Formtech Ultralight Alloy Disc brake, internal cable routing, rack/fender compatible
Suspension Fork
SR NEX HLO DS with 63mm Travel and Hydraulic Lockout
Drivetrain
Rear Derailleur
Shimano Altus 9sp Shadow
Front Derailleur
Shimano Acera T3000-2
Shift Levers
Shimano Altus 18sp
Cassette
Shimano HG200 11-36T 9-Speed
Crank
Shimano MT210 2-pce 46/30T
Bottom Bracket
Shimano Hollowtech II
Chain
KMC X9
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Shimano RM35 Centrelock Cassette 32H
Rear Hub
Shimano RM35 Centrelock Cassette 32H
Rims
Alex TD26 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Piedmont 700 x 40c with K-Shield and AV valve
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Brake Levers
Shimano
Cockpit
Handlebar
Alloy 31.8 with 9deg backsweep and 12mm rise
Grips
Zero Strike Dual Compound
Headset
Integrated Aheadset 1-1/8"
Seat
Saddle
Zero Zealth Women's
Seatpost
Alloy Micro Adjust 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.552 mm | 1.555 mm |
| Front Center | 602 mm | 632 mm | 647 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 80 mm | 81 mm | 80 mm |
| Stack | 610 mm | 610 mm | 625 mm |
| Reach | 363 mm | 393 mm | 402 mm |
| Top Tube Length | 540 mm | 575 mm | 595 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 365 mm | 410 mm | 450 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1032 mm | 1064 mm | 1079 mm |
| Bottom Bracket Drop | 70 mm | 65 mm | 65 mm |
| Standover Height | 727 mm | 753 mm | 782 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
