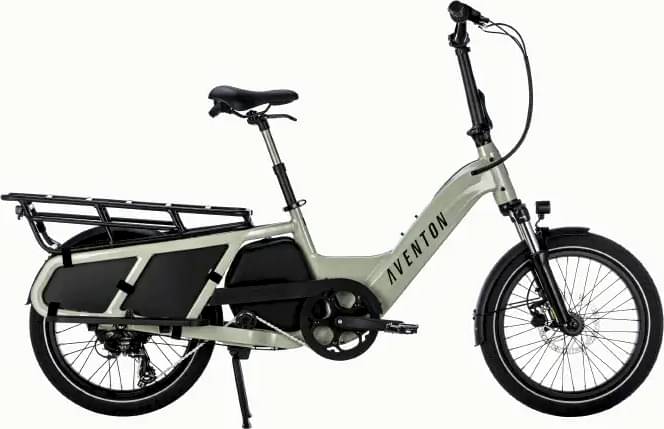

Aventon Abound Cargo 2024
2024 E-bike
Estimate price |
1,799$
Weight | 36.74 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 50mm -
Groupset Shimano -
Suspension Hardtail -
Motor 750W hub-drive -
Battery 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double-Butted Aluminum Alloy
Suspension Fork
Suspension Fork with 50mm travel, with lockout
Drivetrain
Rear Derailleur
Shimano 7 speed
Shift Levers
7 Speed Twist
Cassette
14-28T, 7 Speed
Crank
170mm w/ 52 T
Bottom Bracket
Square Taper, Sealed, Torque Sensor
Chain
148 Link, 7 Speed
Pedals
9/16" Alloy Platform
Wheels
Front Hub
Hubs: 36H Disc Nutted Front, Nutted Rear
Rear Hub
Hubs: 36H Disc Nutted Front, Nutted Rear
Rims
Double Wall Aluminum 36h Front & Rear
Spokes
Black Stainless 13G Front / 12G Rear
Tires
20 x 2.4
Brakes
Brakes
Hydraulic
Cockpit
Stem
Folding, Height Adjustable, 31.8mm, 9 Degree Rise
Handlebar
Aluminum 31.8mm, 700mm
Grips
Ergonomic Comfort
Headset
Sealed Bearing Headset
Seat
Saddle
Aventon Saddle
Seatpost
Dropper Seatpost, 30.9mm x 440mm
Motor & Battery
Motor
750w (sustained), 48v Rear Hub
Battery
48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant
Charger
48V, 3 Amp Fast Charger
Fit data
Geometry
