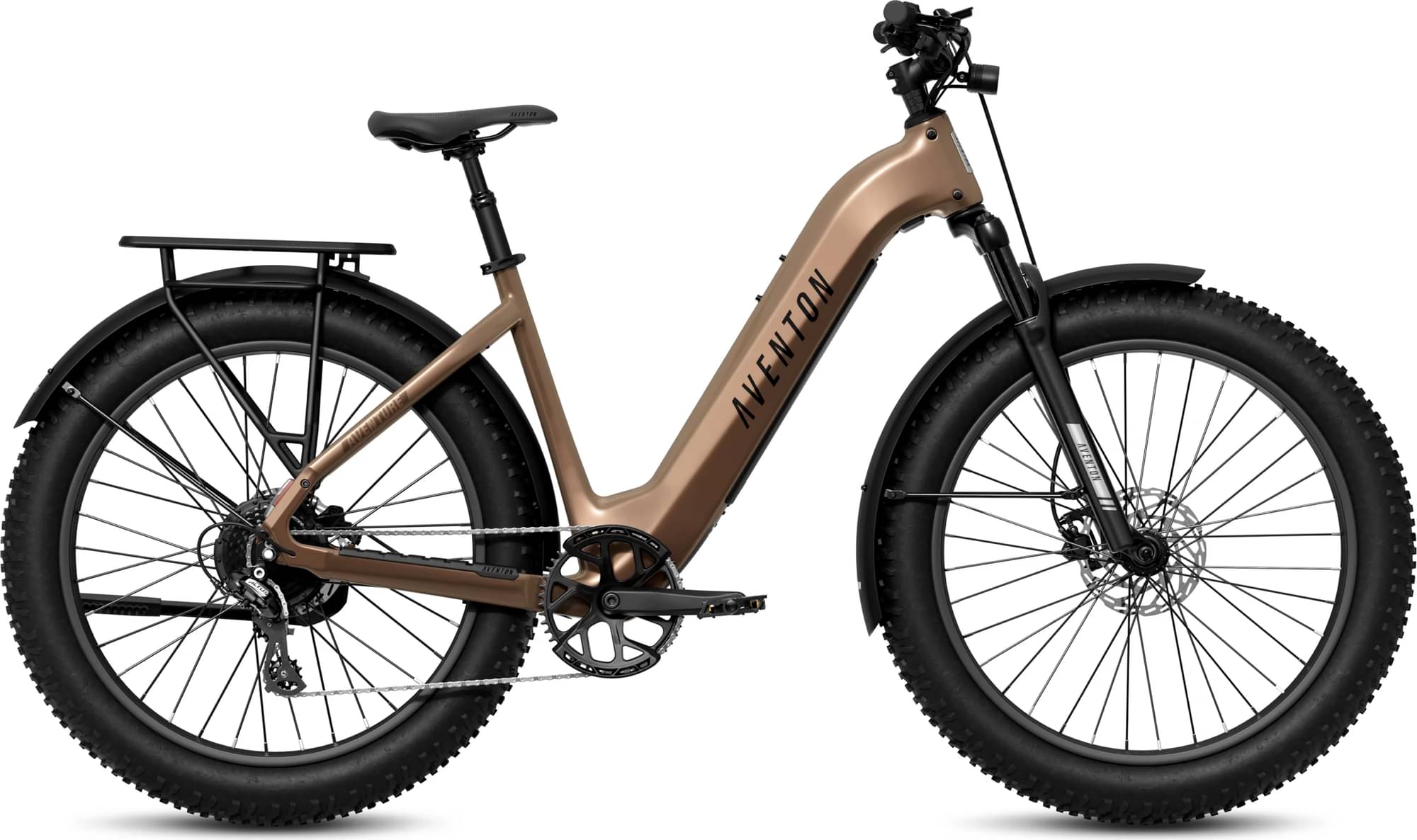

Aventon Aventure 3 Step Through 2025
2025 E-bike
Estimate price |
1,999$
Weight | 34.93 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Zoom
-
Groupset Altus -
Suspension Hardtail -
Motor 750W hub-drive -
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum, Gravity Cast Front Triangle
Suspension Fork
Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Drivetrain
Rear Derailleur
Shimano Altus 8-Speed
Shift Levers
Shimano 8-Speed Trigger
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crank
48T
Bottom Bracket
100x177 Square Taper, Double Sided Torque sensor bottom bracket
Chain
7/8 Speed 118L
Pedals
9/16" Alloy Platform
Wheels
Rims
Front: 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve, Rear: 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
Tires
Inova 26x4.0 puncture resistant
Brakes
Brakes
Front: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire, Rear: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Cockpit
Handlebar
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Seat
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Motor & Battery
Motor
36V, 750W Hub Drive
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Charger
36V Output: 42V/ 4A
Fit data
Geometry
