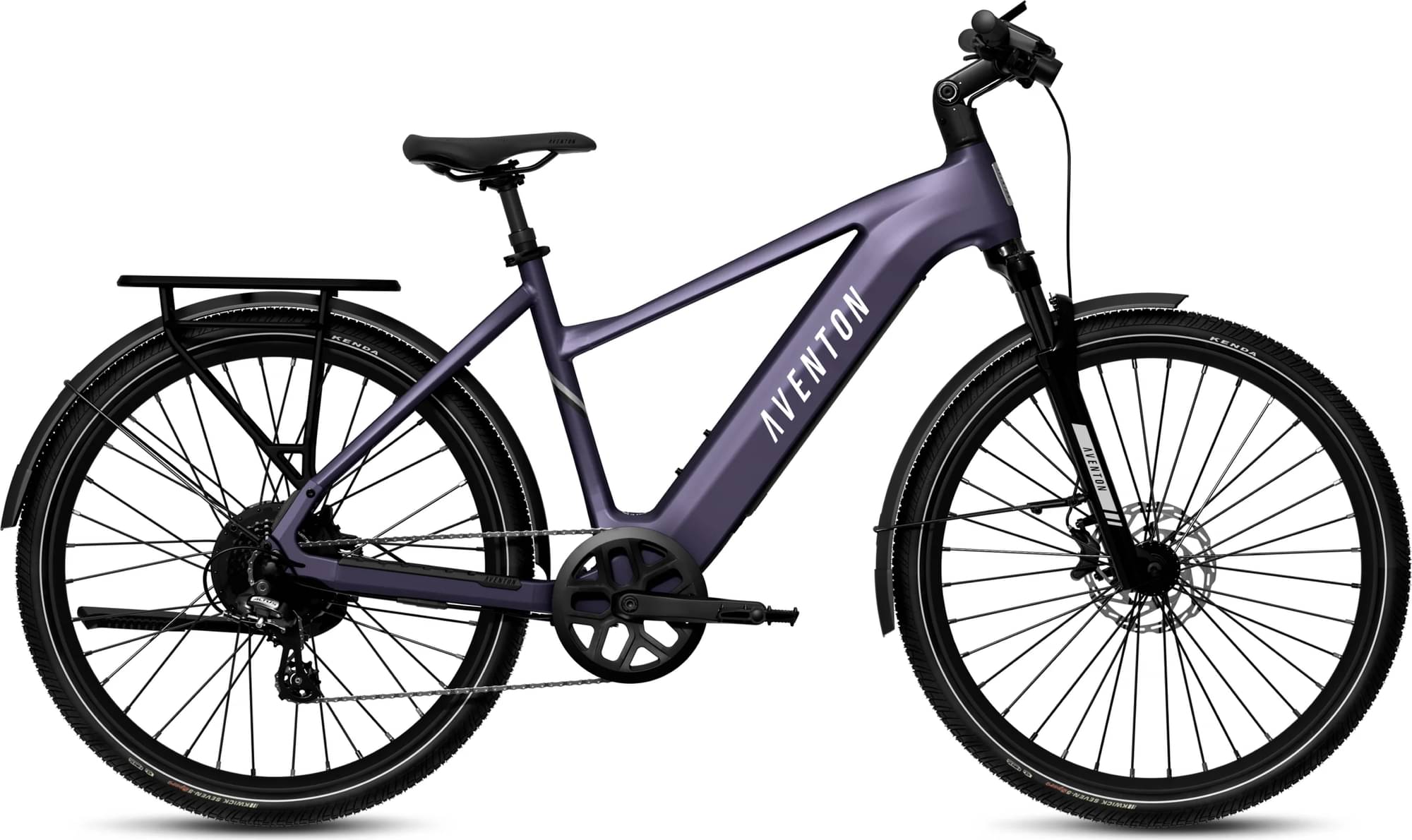

Aventon Level 3 2025
2025 E-bike
Estimate price |
1,899$
Weight | 30.39 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Groupset Altus -
Suspension Hardtail -
Motor 500W hub-drive -
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
Regular
160cm - 176cm
LG
174cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum, Gravity Cast Front Triangle
Suspension Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shift Levers
Shimano 8 Speed Trigger SL-M315-8R
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crank
48T
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Chain
7/8 speed 120L
Pedals
9/16" Composite Platform
Wheels
Rims
Front: 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black, Rear: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Brakes
Brakes
Front: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire, Rear: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Cockpit
Handlebar
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed Bearing Headset
Seat
Saddle
Aventon Saddle
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Motor & Battery
Motor
36V, 500W (sustained), 864W (peak)
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Charger
36V Output: 42V/ 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Regular | LG |
|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.373 mm |
| Rake | 43 mm | 43 mm |
| Trail | 81 mm | 81 mm |
| Stack | 620 mm | 618 mm |
| Reach | 420 mm | 450 mm |
| Top Tube Length | 605 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1150 mm | 1180 mm |
| Standover Height | 687 mm | 695 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 160 cm | 174 cm |
| Rider Max Height | 176 cm | 195 cm |
