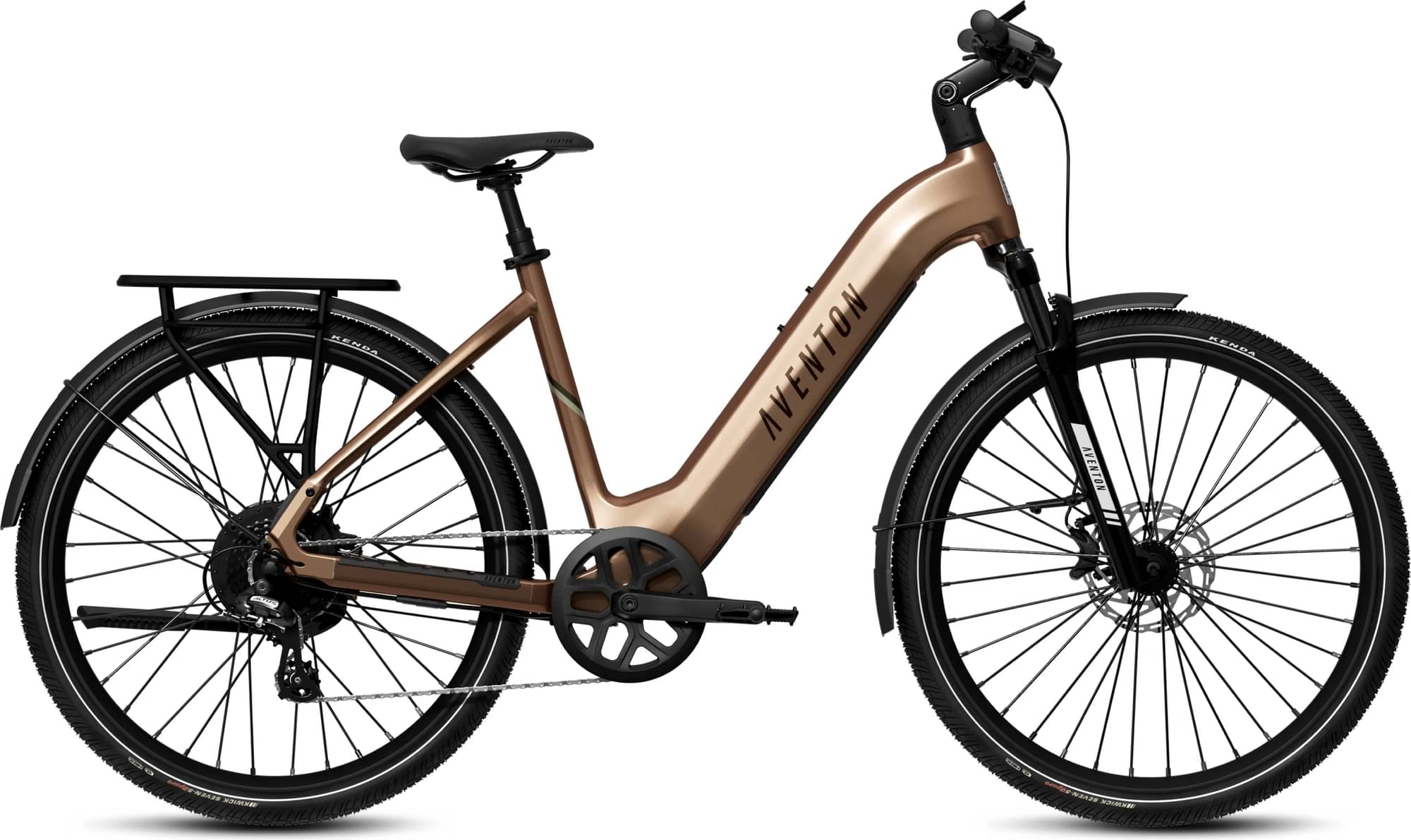

Aventon Level 3 Step Through 2025
2025 E-bike
Estimate price |
1,899$
Weight | 30.39 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Groupset Altus -
Suspension Hardtail -
Motor 500W hub-drive -
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
Regular
150cm - 171cm
LG
169cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum, Gravity Cast Front Triangle
Suspension Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shift Levers
Shimano 8 Speed Trigger SL-M315-8R
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crank
48T
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Chain
7/8 speed 120L
Pedals
9/16" Composite Platform
Wheels
Rims
Front: 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black, Rear: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Brakes
Brakes
Front: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire, Rear: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Cockpit
Handlebar
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed Bearing Headset
Seat
Saddle
Aventon Saddle
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Motor & Battery
Motor
36V, 500W (sustained), 864W (peak)
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Charger
36V Output: 42V/ 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Regular | LG |
|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.356 mm |
| Rake | 43 mm | 43 mm |
| Trail | 81 mm | 81 mm |
| Stack | 610 mm | 610 mm |
| Reach | 423 mm | 450 mm |
| Top Tube Length | 607 mm | 634 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 130 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1150 mm | 1176 mm |
| Standover Height | 442 mm | 442 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 150 cm | 169 cm |
| Rider Max Height | 171 cm | 185 cm |
