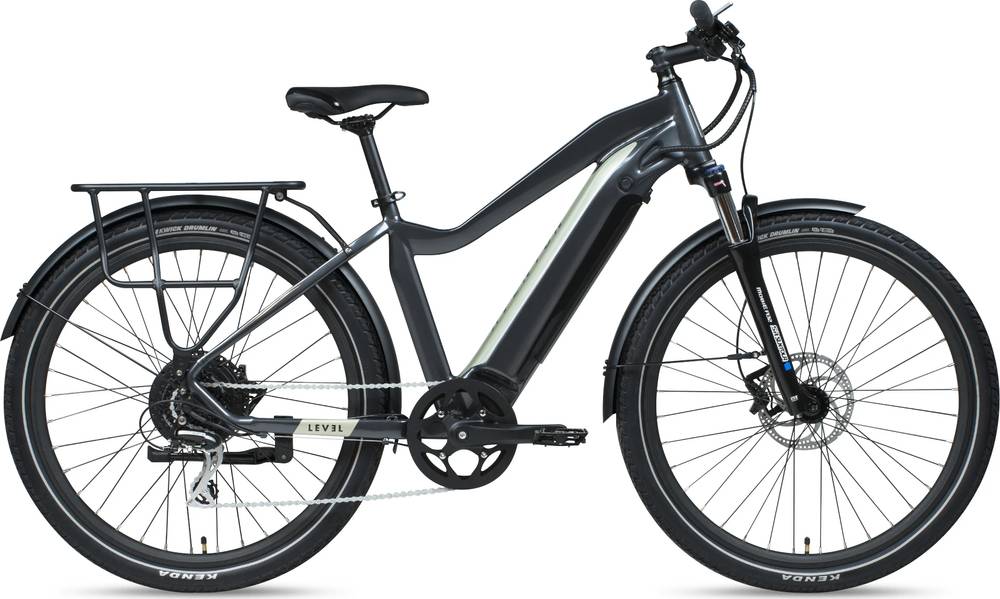

Aventon Level Commuter Ebike 2020
2020 E-bike
Estimate price |
1,599$
Weight | 28.12 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 75mm -
Fork SunTour MOBIE
-
Groupset Acera -
Suspension Hardtail -
Motor 500W hub-drive -
Battery Removable Internal Lithium-ion 48V, 14Ah (672Wh) with Samsung Cells -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Double-Butted Aluminum Alloy with Internal Battery
Suspension Fork
Suntour Mobie A32, coil spring, thru-axle, 75mm travel, with lockout
Drivetrain
Rear Derailleur
Shimano Acera 8 Speed
Shift Levers
Shimano Acera 8 Speed, Rapidfire
Cassette
Shimano Acera Cassette, 12-32T, 8 Speed
Crank
170mm w/ 46 T
Bottom Bracket
Square Taper, Sealed
Chain
KMC Z Series, 8 Speed
Pedals
9/16" Alloy Platform
Wheels
Front Hub
Joytech 36H Disc Thru-axle Front, Nutted Rear
Rear Hub
Joytech 36H Disc Thru-axle Front, Nutted Rear
Rims
Double Wall Aluminum 36h Front & Rear
Spokes
Black Stainless 13 Gauge
Tires
27.5" x 2.2" Kenda Kwick Drumlin, Ebike Rated, Reflective Sidewalls
Brakes
Brakes
Bengal Ares 3 Hydraulic Disc Brakes, 180mm Rotors
Cockpit
Stem
Threadless, 31.8mm, 7 Degree Rise
Handlebar
Aluminum 31.8mm, 680mm
Grips
Ergonomic Comfort
Headset
VP Sealed Bearing Headset
Seat
Saddle
Aventon by Velo
Seatpost
Forged Alloy, 27.2mm, 2-Bolt Clamp
Motor & Battery
Motor
750W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor, Speed, Level goes 28 MPH on Pedal Assist and 20 MPH on Throttle
Battery
Removable Internal Lithium-ion 48V, 14Ah (672Wh) with Samsung Cells
Remote
M5 LCD Smart Easy Read Display with Backlight
Charger
48V 3 Amp Fast Charger, 4-5 Hour Charging
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.72 mm | 1.65 mm |
| Front Center | 615 mm | 622 mm | 647 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 73 mm | 73 mm |
| Stack | 612 mm | 621 mm | 631 mm |
| Reach | 358 mm | 361 mm | 382 mm |
| Top Tube Length | 559 mm | 576 mm | 600 mm |
| Seat Tube Angle | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 380 mm | 440 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1087 mm | 1094 mm | 1119 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 587 mm | 657 mm | 687 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Level Commuter Ebike is part of the Aventon E Level model. There are 9 e-bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 1599$. If we compare this with the average Commuter e-bike cost we notice that the price is 60.66% smaller.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Aventon Level Commuter Ebike it’s weighing 28.12 kg (61.99 lbs). At this weight, is considerably heavier than average. To sum up, it’s 11.59% heavier than the average weight of Commuter e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Aventon Level Commuter Ebike 2020 e-bike is equipped with the SunTour MOBIE fork, and has 75mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Level Commuter Ebike are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Level Commuter Ebike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
