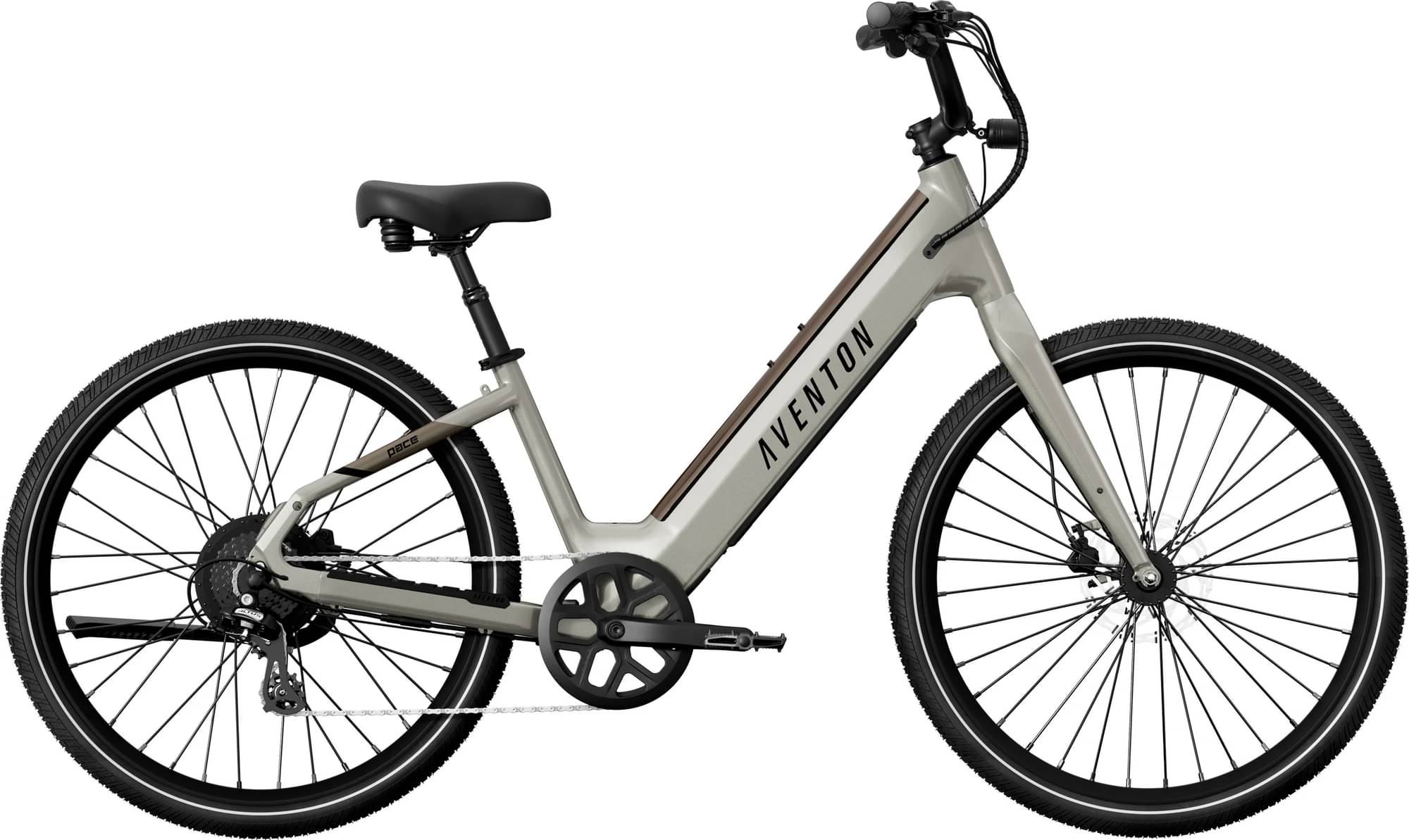

Aventon Pace 4 Step Through 2025
2025 E-bike
Estimate price |
1,799$
Weight | 26.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Motor 500W hub-drive -
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum, Gravity Cast Front Triangle
Suspension Fork
Rigid Aluminum Fork
Drivetrain
Rear Derailleur
Shimano Altus 8-Speed
Shift Levers
Shimano 8-Speed Trigger
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crank
48T
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Chain
7/8 speed 122L
Pedals
9/16" Composite Platform
Wheels
Rims
Front: 27.5", 36 hole, Nutted axle, Schrader Valve, Rear: 27.5", 36 hole, Nutted hub drive motor, Schrader Valve
Tires
27.5" x 2.1"
Brakes
Brakes
Front: Tektro Hydraulic w/ E-Cutoff, Rear: Tektro Hydraulic w/ E-Cutoff
Cockpit
Stem
31.8mm x 50mm, +15 Degree Rise
Handlebar
BMX Style Aluminum 31.8mm, 720mm
Grips
Aventon Ergonomic Comfort lock on grips
Headset
Sealed Bearing Headset
Seat
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Motor & Battery
Motor
36v, 500W
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Charger
36V Output: 42V/ 4A
Fit data
Geometry
