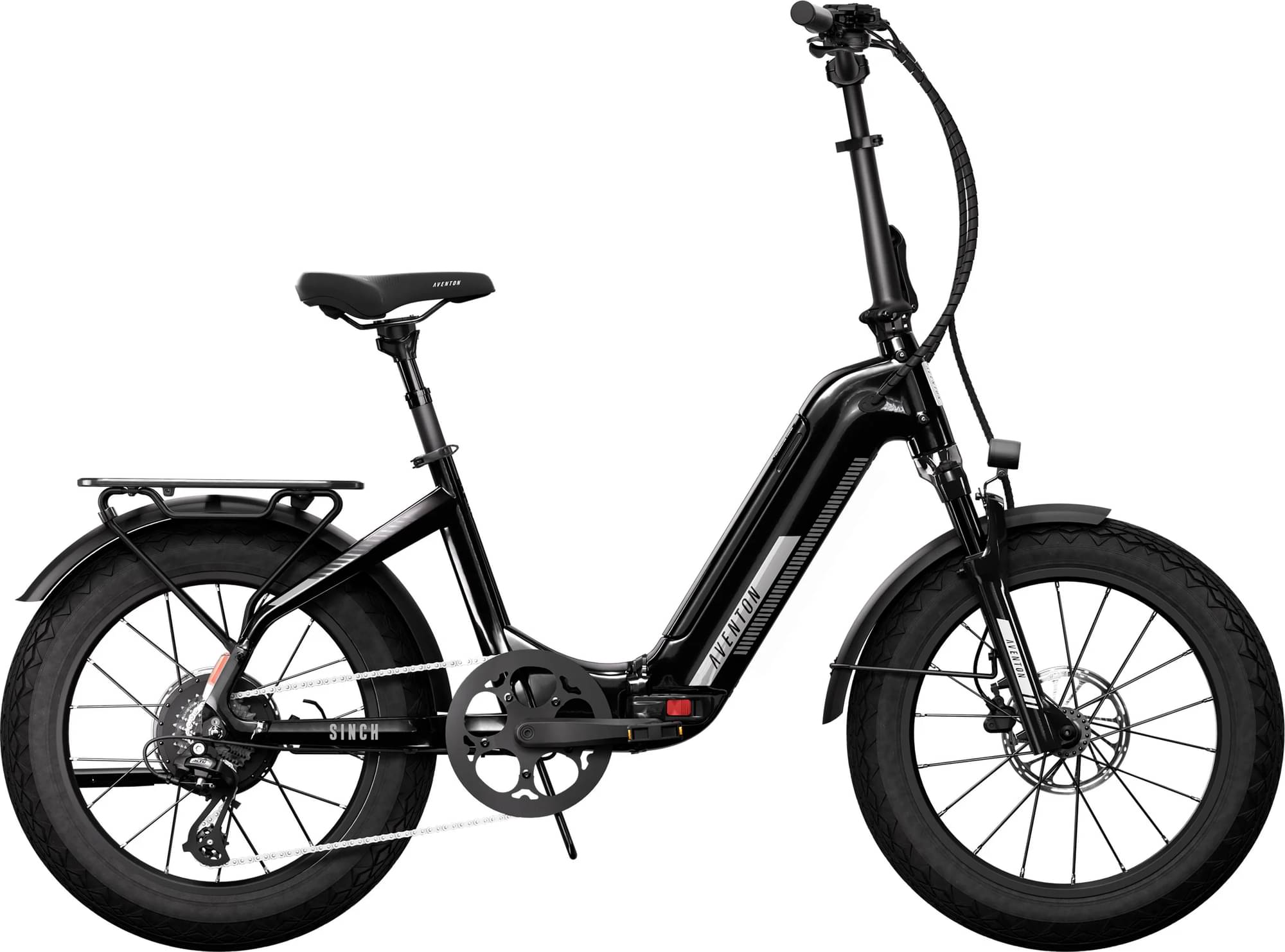

Aventon Sinch 2.5 2025
2025 E-bike
Estimate price |
1,799$
Weight | 30.84 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Hardtail -
Motor 500W hub-drive -
Battery Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh) -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
One Size
149cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Single-Butted Folding Aluminum Alloy with Internal Battery
Suspension Fork
Aventon coil fork with lock out and black stanchions.
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crank
3pc, 170mm crank arm
Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm
Chain
114 Link, 8 Speed
Pedals
9/16" Composite folding pedals
Wheels
Rims
Front: 20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve., Rear: 20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.
Tires
Innova IA-2579 20x4.0
Brakes
Brakes
Front: Tektro HD-T280 Hydraulic disc brake w/o e-cutoff, Rear: Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
Cockpit
Handlebar
Aluminum 25.4mm diameter, 580mm wide
Grips
Aventon glue on grips
Headset
Sealed Bearing Headset ZS44/28.6| ZS55/40
Seat
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, 30.9, 350mm Length
Motor & Battery
Motor
Motor: 48v, 500w sustained, 1056w peak brushless hub motor
Battery
Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)
Charger
48V, 3 Amp Fast Charger
Fit data
Geometry
