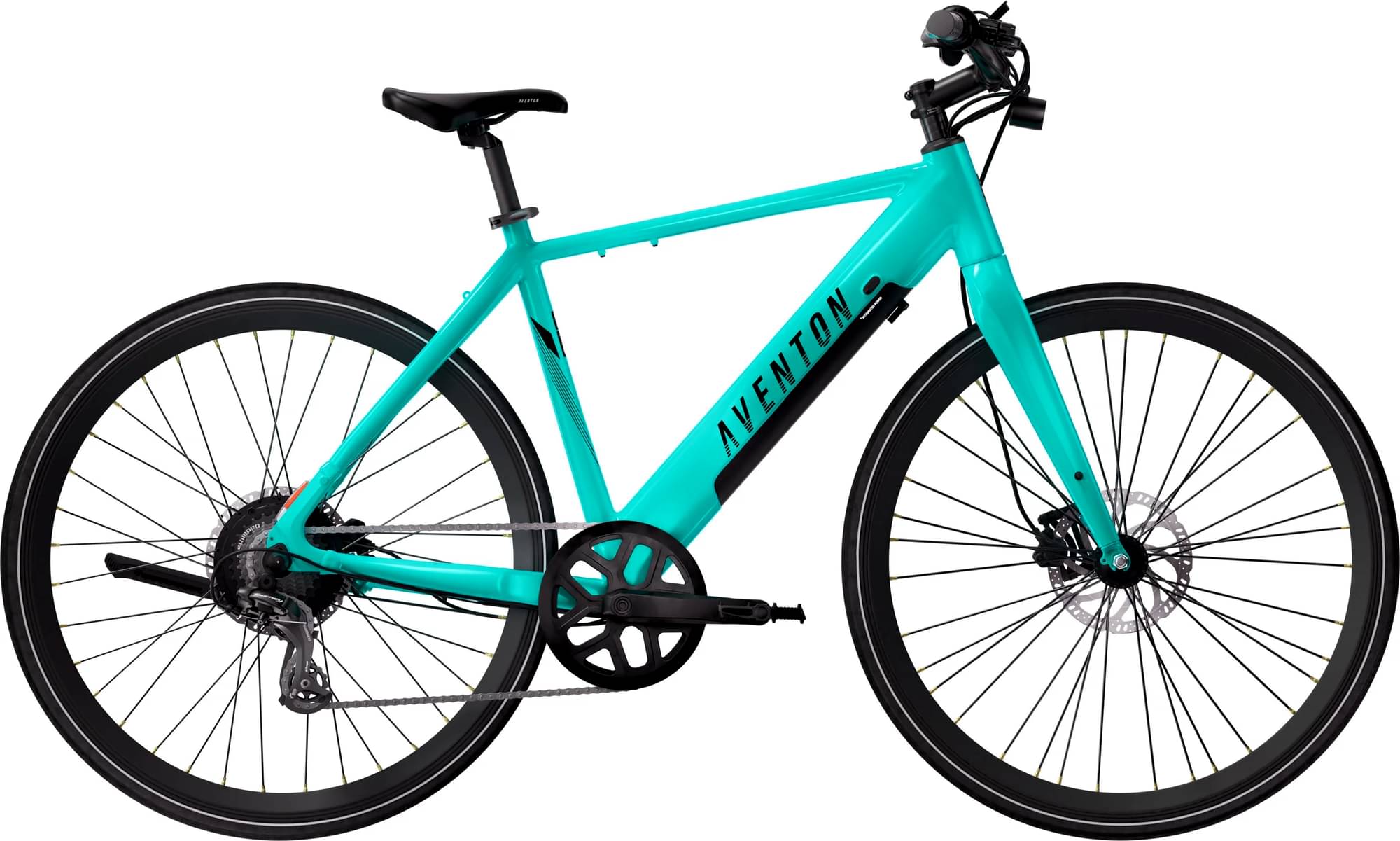

Aventon Soltera 2.5 2025
2025 E-bike
Estimate price |
1,199$
Weight | 20.87 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Motor 350W hub-drive -
Battery Removable Internal Lithium-ion 36V,9.6Ah(345.6Wh) with LG Cells -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 175cm
LG
177cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Double-Butted Aluminum Alloy with Internal Battery
Suspension Fork
AE-E09 Soltera AL fork
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300D 7 speed
Shift Levers
Shimano 7 speed twist RevoShift
Cassette
Shimano MF-TZ500-7 Freewheel, Speed : 7, 14-28T
Crank
48T
Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor
Chain
7/8 speed 110 link
Pedals
9/16" Alloy Platform
Wheels
Rims
Front: 700c, 36-spoke, double-wall aluminum rim, black finish, with a nutted hub drive motor, 13g stainless steel spokes (267mm NDS/269mm DS), Presta valve., Rear: 700c, 36-spoke, double-wall aluminum rim, black finish, with a nutted hub drive motor, 13g stainless steel spokes (243mm NDS/242mm DS), Presta valve.
Tires
Kenda K1085 700x38C
Brakes
Brakes
Front: Tektro HD-T280 Hydraulic disc brake w/o e-cutoff, Rear: Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
Cockpit
Handlebar
Aluminum 31.8mm, 620mm
Grips
Lock on grips with twist shift
Headset
Aventon headset with integrated cable routing
Seat
Saddle
Aventon Saddle
Seatpost
Aventon 27.2
Motor & Battery
Motor
36V, 350W sustained, 540W peak brushless hub motor
Battery
Removable Internal Lithium-ion 36V,9.6Ah(345.6Wh) with LG Cells
Charger
36V, 2 amp fast charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.442 mm | 1.417 mm |
| Front Center | 620 mm | 620 mm | 630 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Trail | 75 mm | 75 mm | 68.5 mm |
| Stack | 568 mm | 568 mm | 581 mm |
| Reach | 394 mm | 394 mm | 410 mm |
| Top Tube Length | 557 mm | 557 mm | 577 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 490 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1042 mm | 1042 mm | 1052 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 787 mm | 838 mm | 889 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 164 cm | 177 cm |
| Rider Max Height | 167 cm | 175 cm | 188 cm |
