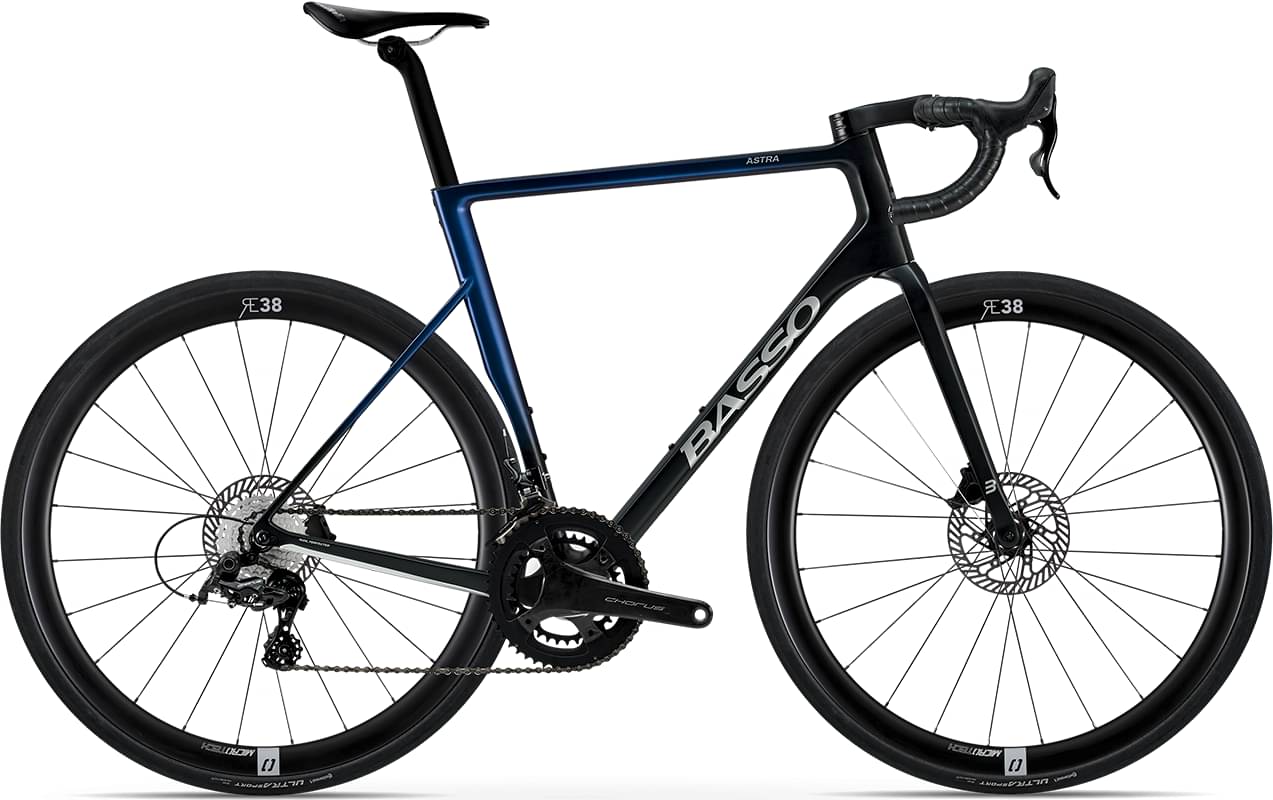

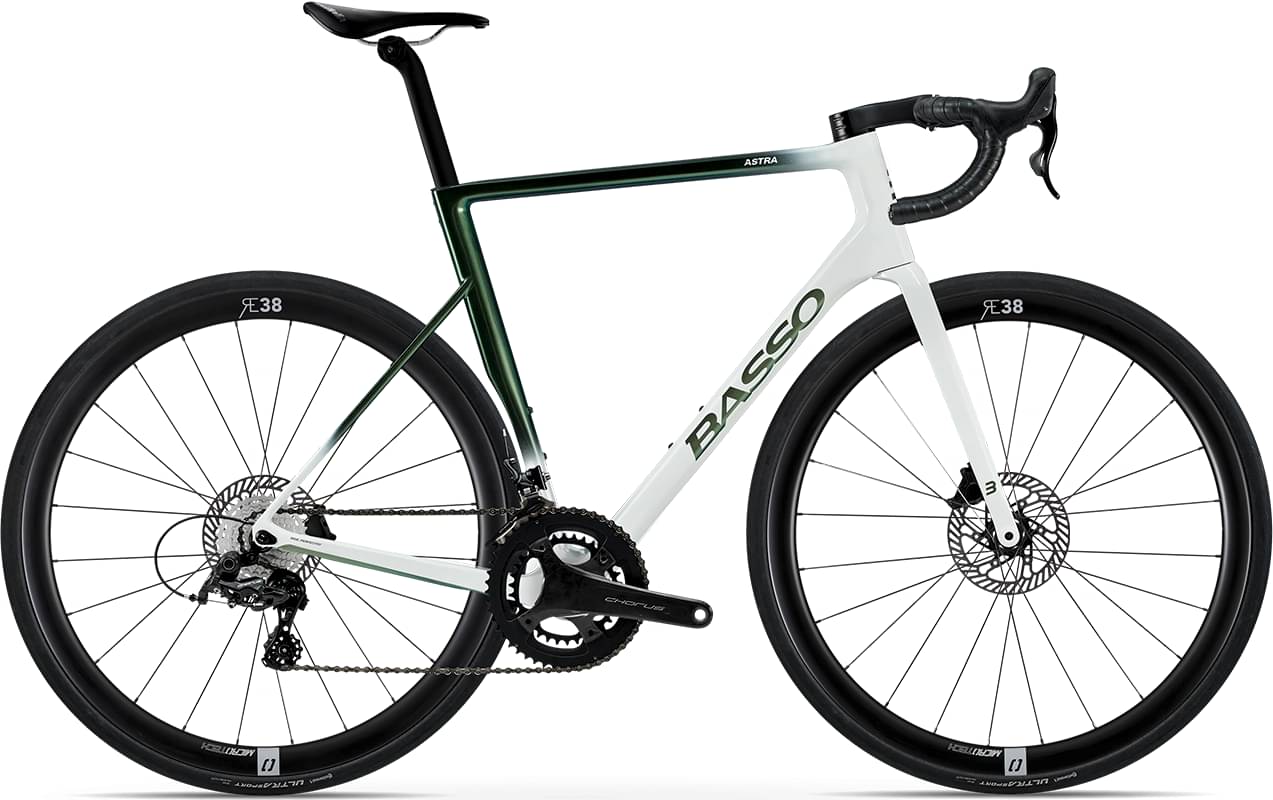

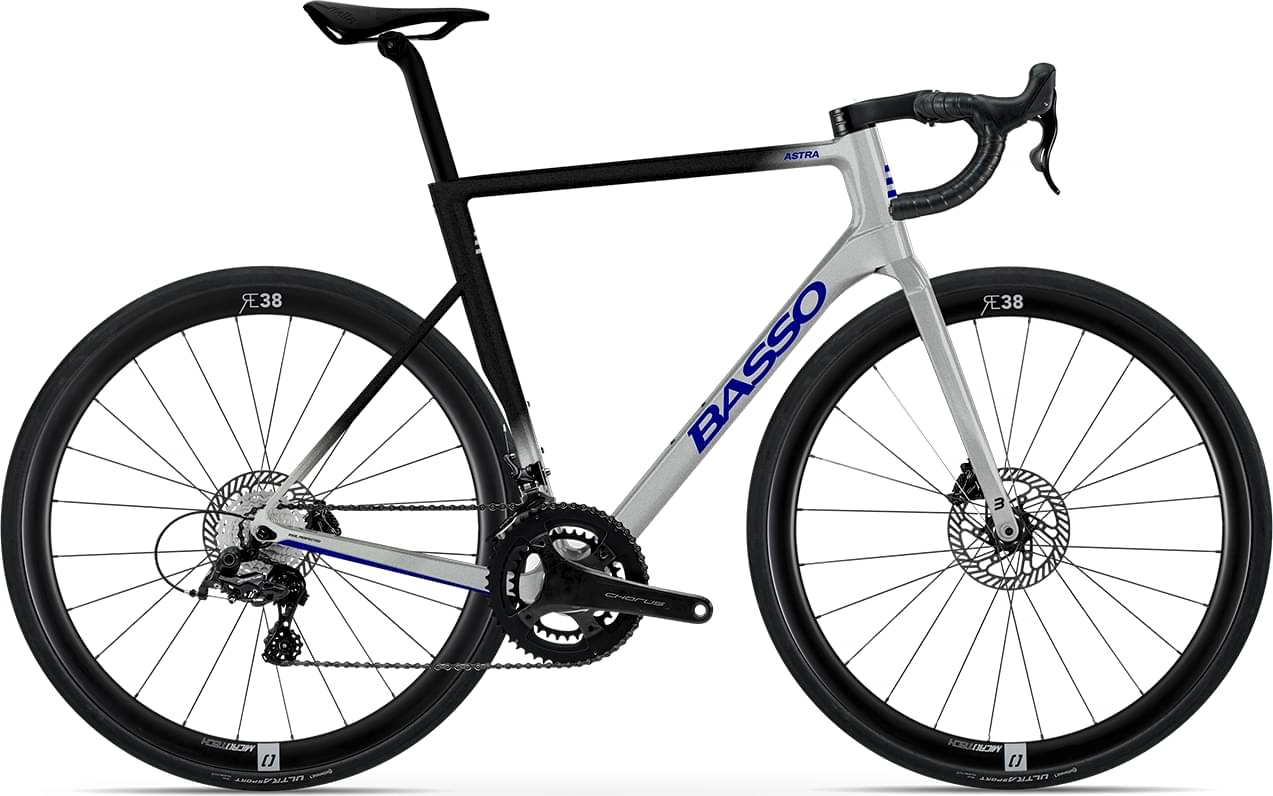

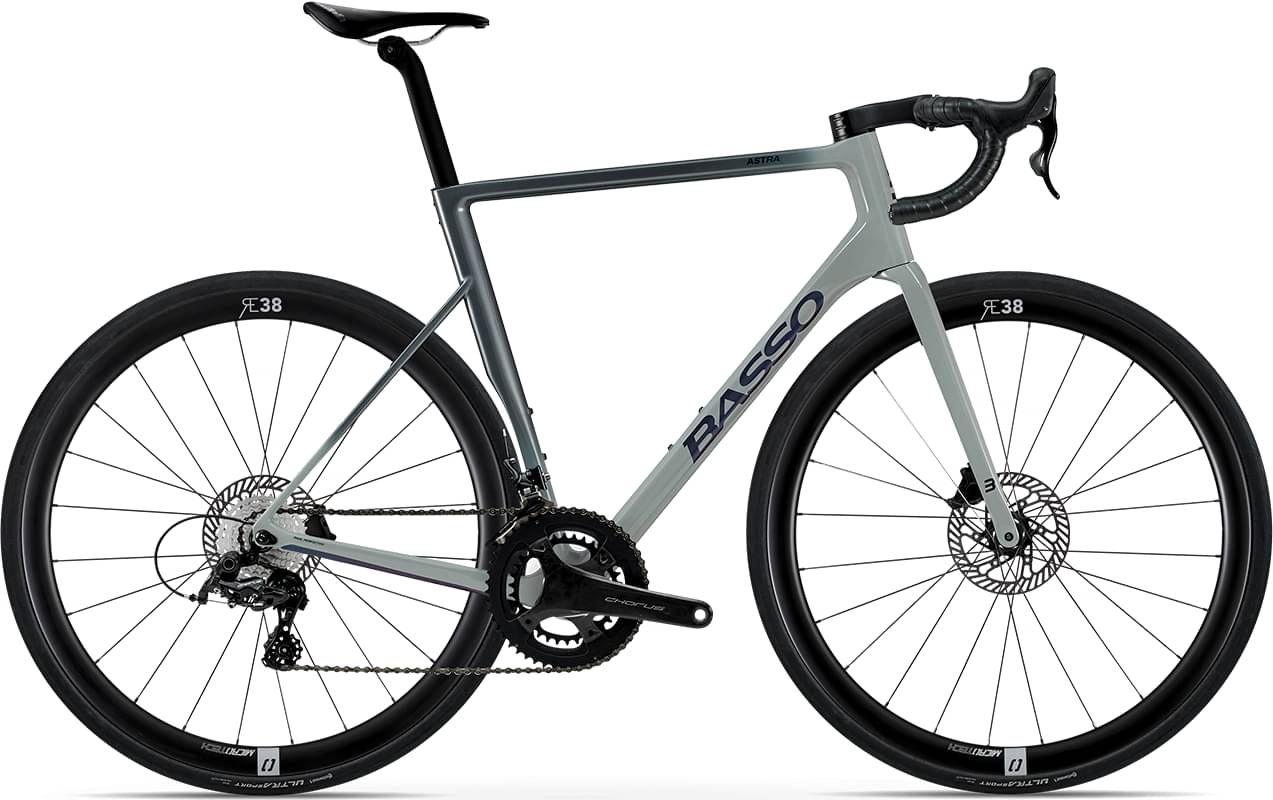

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 12
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Cassette
SRAM Force AXS 10-36T
Crank
SRAM Force AXS 48-35T
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.452 mm | 1.504 mm | 1.514 mm | 1.577 mm | 1.627 mm | 1.687 mm |
| Stack | 538.9 mm | 538.9 mm | 563.4 mm | 575.9 mm | 602.4 mm | 625.4 mm | 650.4 mm |
| Reach | 371.1 mm | 371.1 mm | 374.5 mm | 380.4 mm | 382.1 mm | 384.4 mm | 385.5 mm |
| Top Tube Length | 505 mm | 515 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.8 ° | 71.8 ° | 72 ° | 72.3 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 125 mm | 125 mm | 150 mm | 162 mm | 180 mm | 204 mm | 228 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
