Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca HMCF T700
Suspension Fork
Basso Carbon
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Stem
Microtech Integrated
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Bassos Konos Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.25 mm | 1.26 mm |
| Stack | 478.4 mm | 497.8 mm | 515.1 mm |
| Reach | 387.8 mm | 397.9 mm | 408 mm |
| Top Tube Length | 506 mm | 521 mm | 536 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 60 mm | 80 mm | 100 mm |
| Chainstay Length | 381 mm | 381 mm | 381 mm |
| Wheels | 700 | 700 | 700 |
About this model

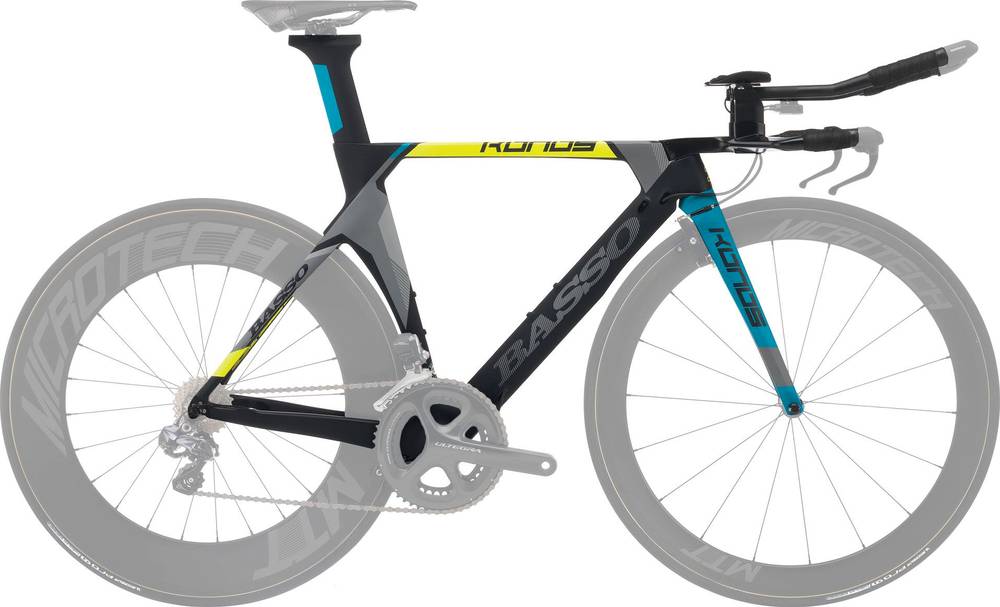

Konos Frameset is a Basso Konos model. Basso launched 1 frame of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Triathlon frames average price
According to our calculations, the average cost of a Triathlon frame that is reliable is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 4795$. Comparing this to the average Triathlon frame price, we see that the price is 55.23% more expensive.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
