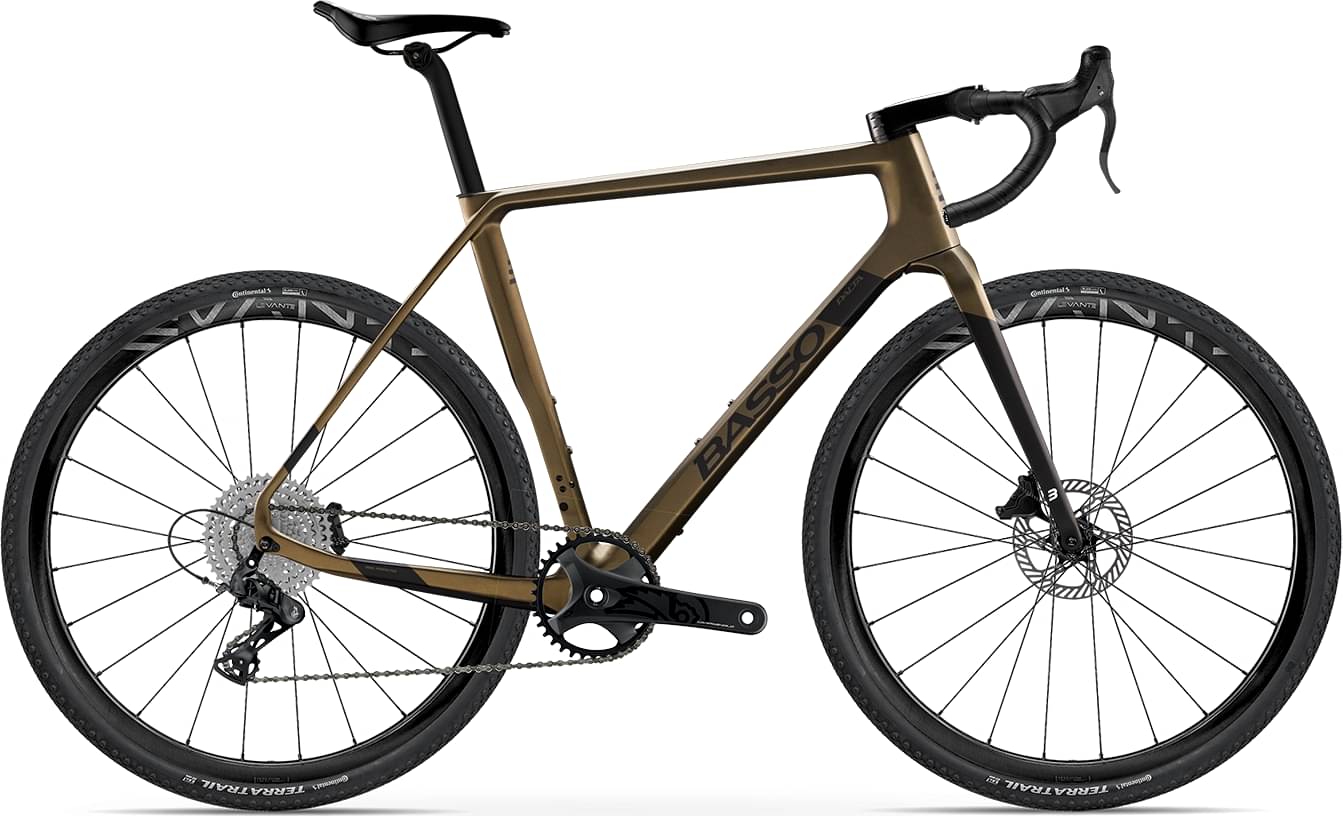

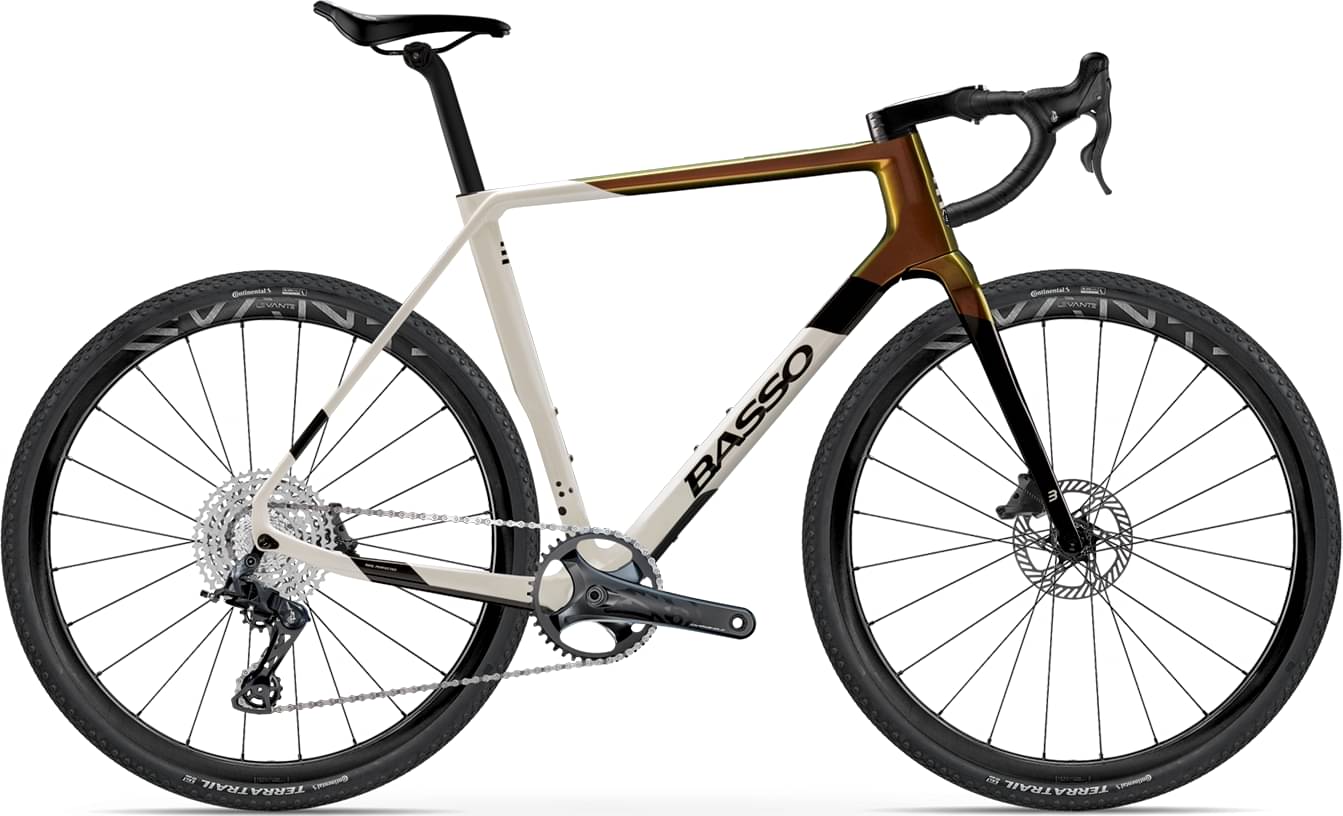

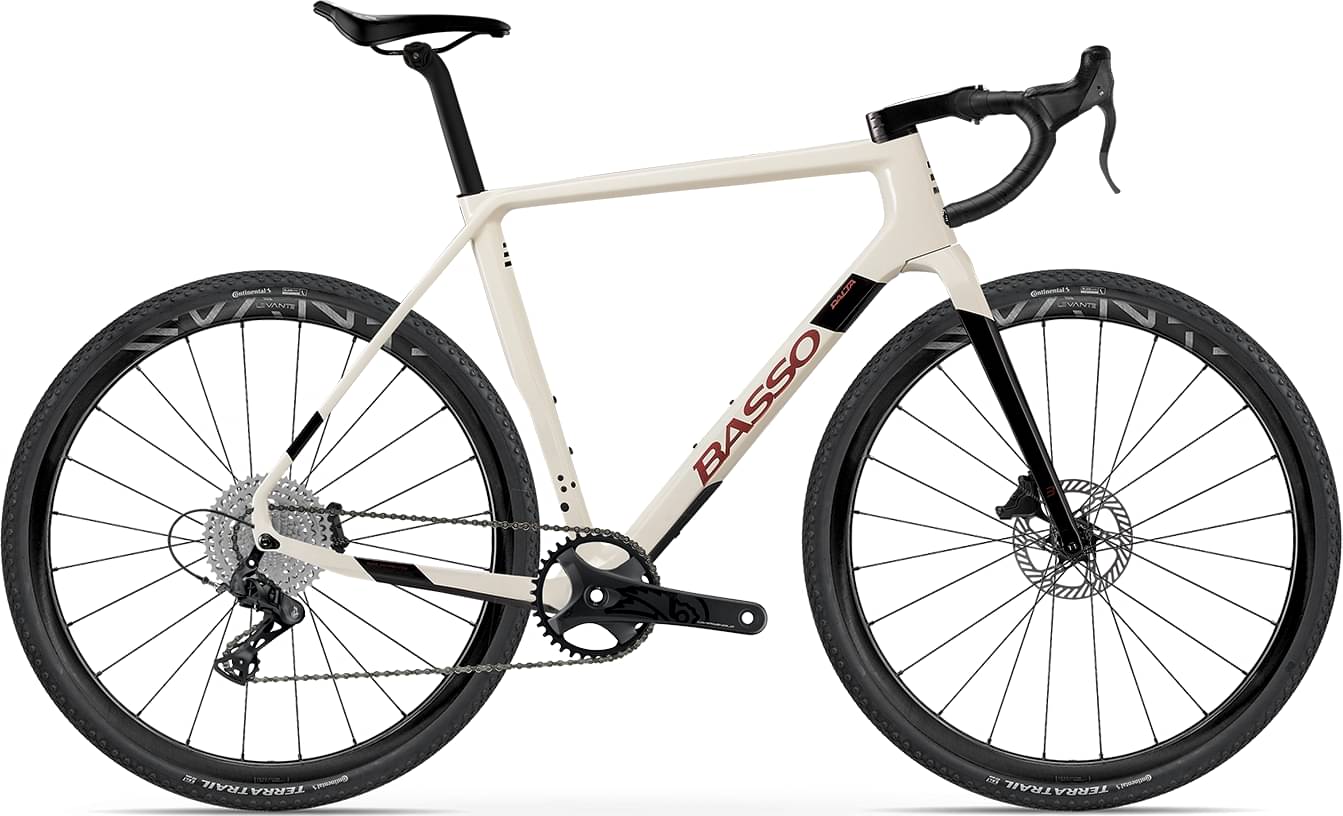

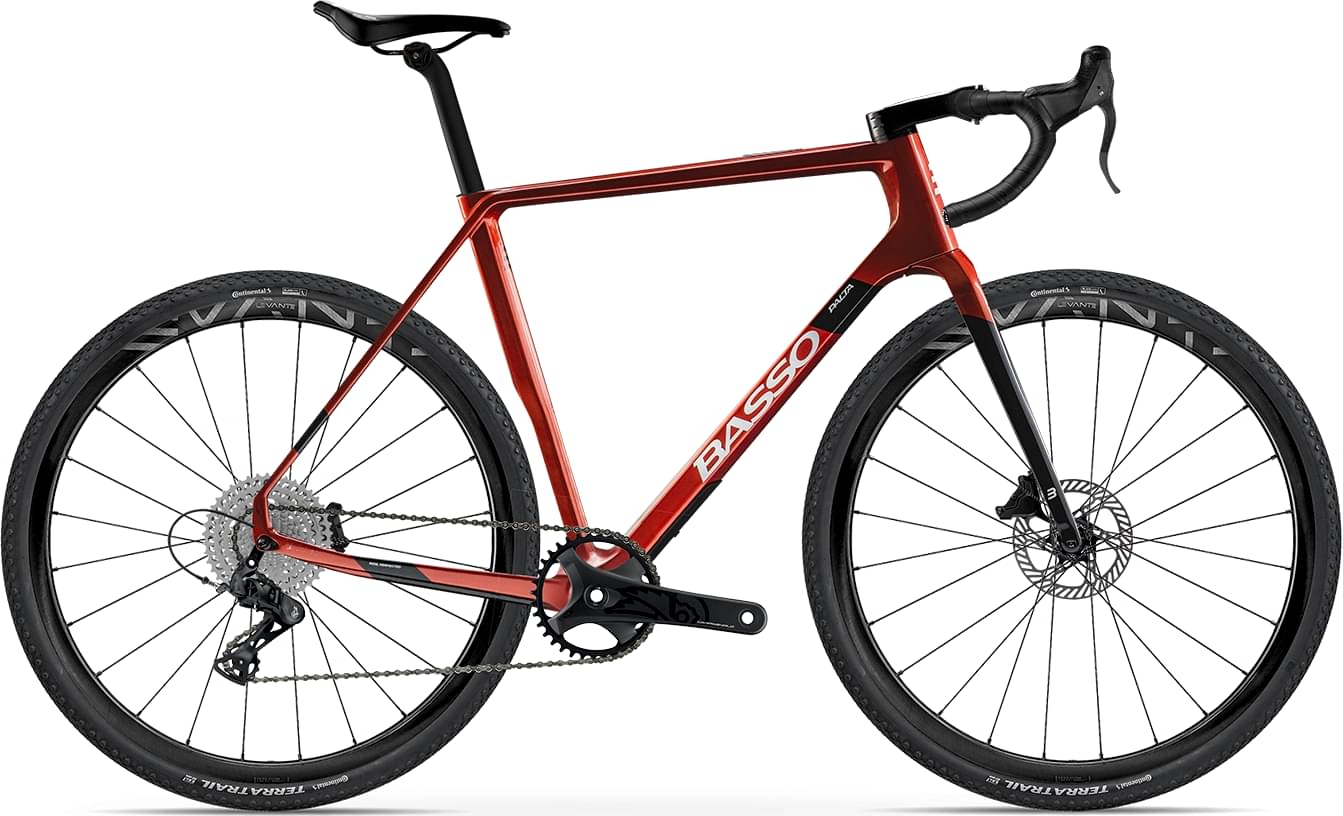

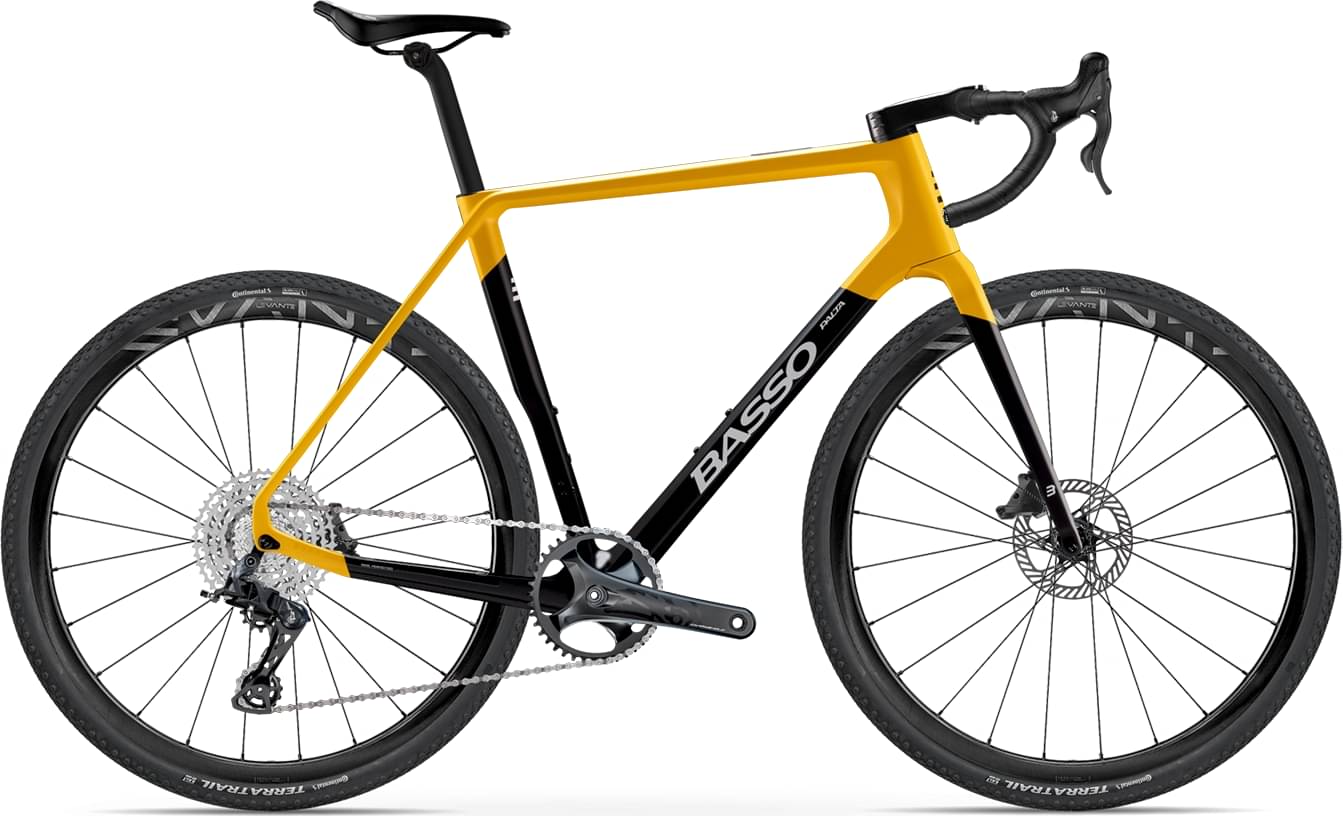

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 600 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Cassette
Shimano GRX 2x12 610 11-34T
Crank
Shimano GRX 2x12 610 46-30T
Wheels
Rims
Microtech MX 25
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Paradigma Stem
Handlebar
Gravel Carbon Handlebar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.492 mm | 1.465 mm | 1.509 mm | 1.494 mm | 1.493 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 591 mm | 601 mm | 607 mm | 619 mm | 638 mm |
| Rake | 45 mm | 48 mm | 48 mm | 48 mm | 47 mm |
| Trail | 92 mm | 79 mm | 76 mm | 69 mm | 70 mm |
| Stack | 528 mm | 542 mm | 563 mm | 581 mm | 600 mm |
| Reach | 354 mm | 370 mm | 373 mm | 389 mm | 402 mm |
| Top Tube Length | 495 mm | 520 mm | 540 mm | 560 mm | 585 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 410 mm | 450 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 68 ° | 69.5 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1006 mm | 1016 mm | 1022 mm | 1034 mm | 1053 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
