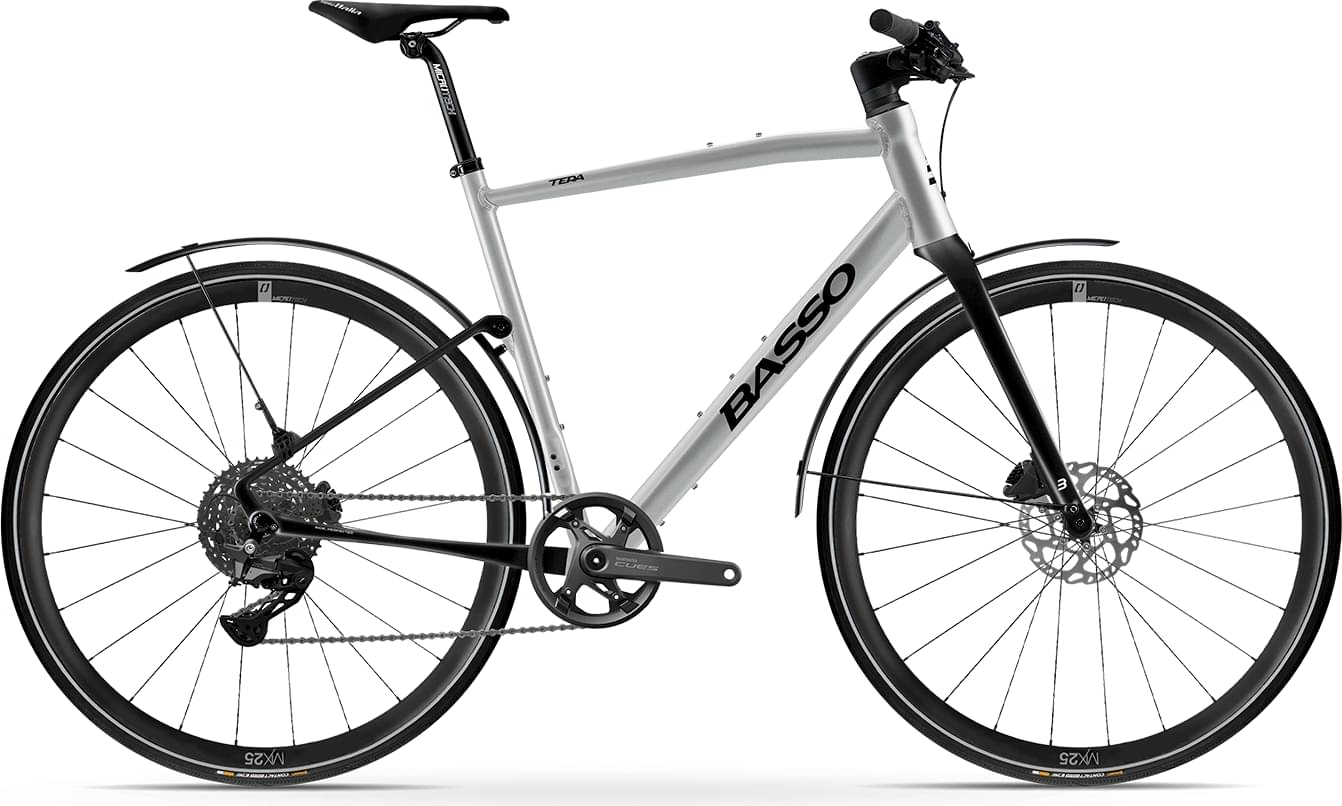

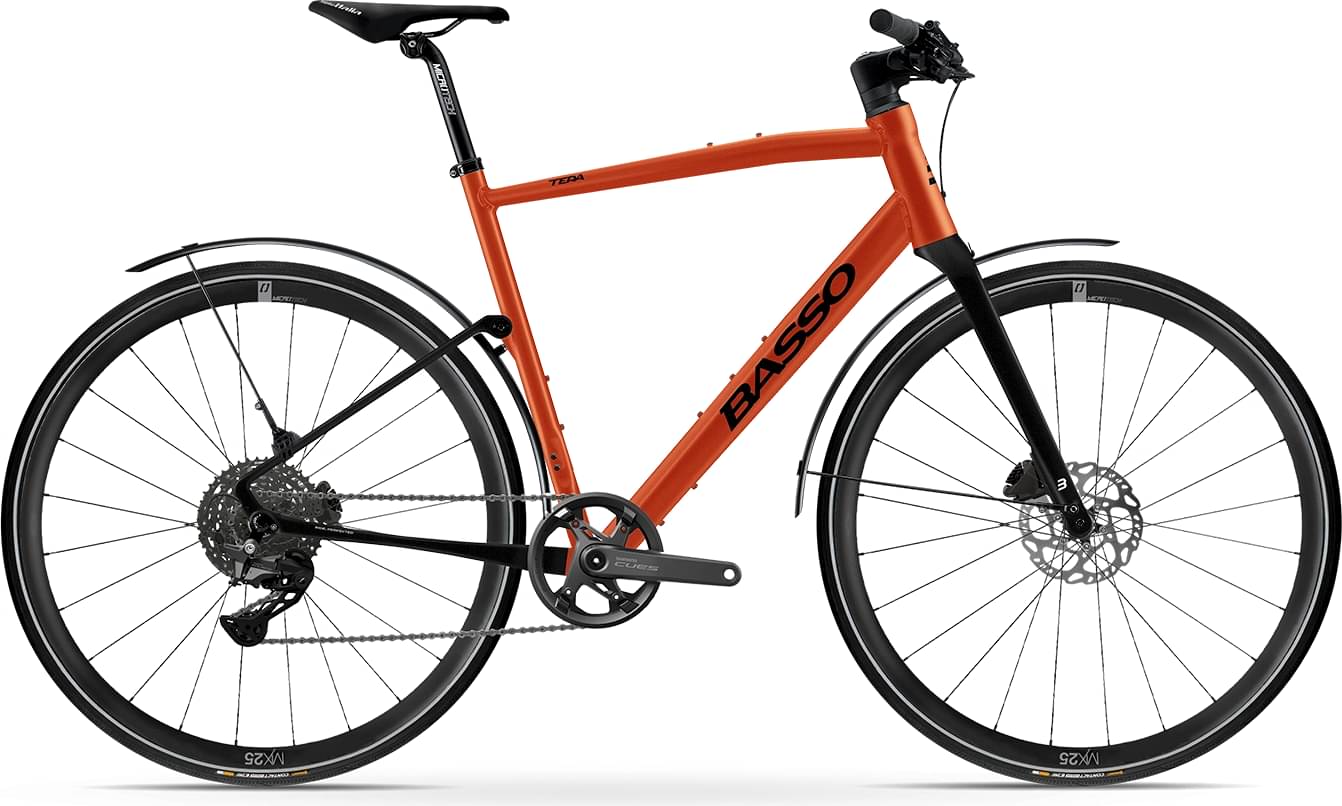

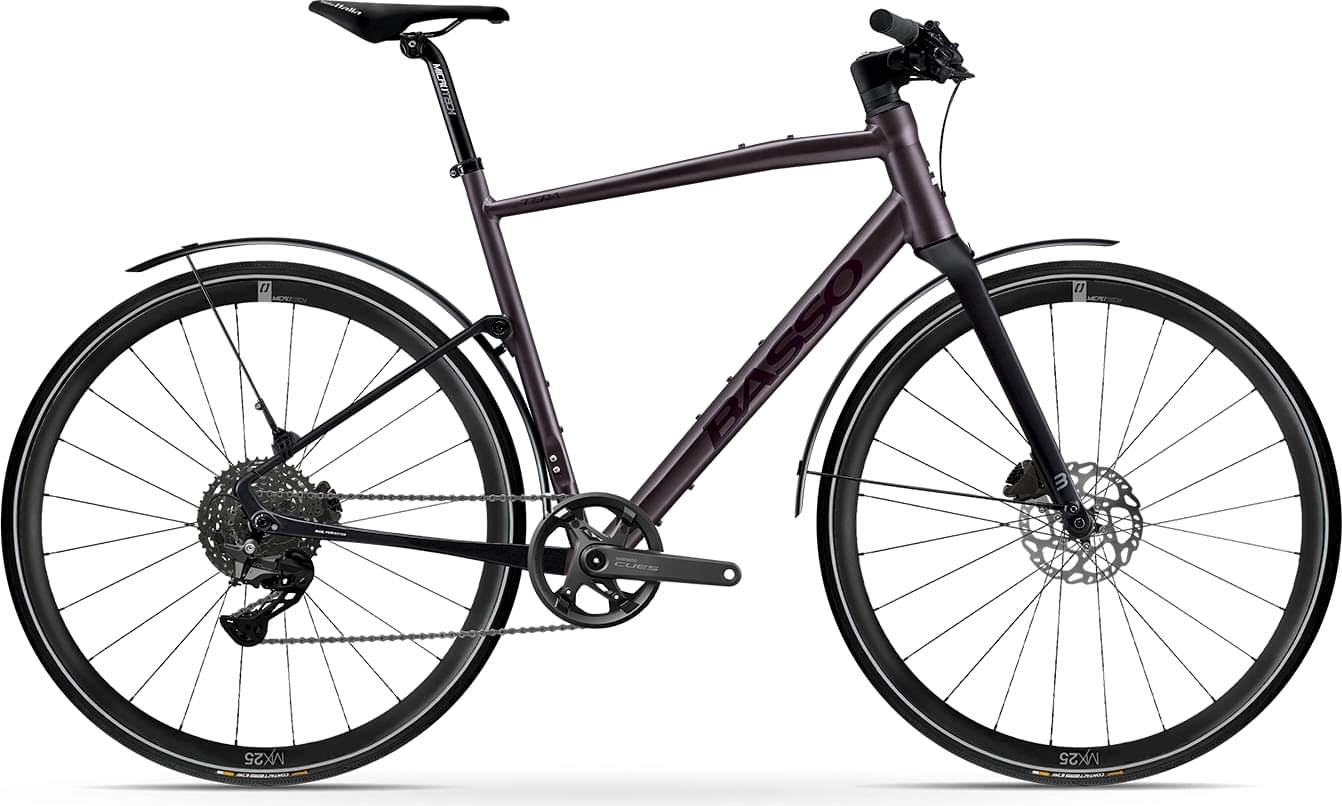

Basso Tera Urban Shimano Cues 1X10 2024
2024 Urban
Estimate price |
2,267$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Shimano -
Drivetrain 1 × 10 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Cassette
Shimano Cues 1X10 10-52TT
Crank
Shimano Cues 1X10 44T
Wheels
Rims
Microtech MX 25
Tires
Maxxis Re-fuse Urban 700 x 40 mm Tires
Brakes
Brakes
Rim
Cockpit
Stem
Tera Stem
Handlebar
Flat Handlebar
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Microtech XL 27.2 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.603 mm | 1.599 mm | 1.542 mm | 1.488 mm |
| Stack | 545 mm | 574 mm | 592 mm | 607 mm |
| Reach | 340 mm | 359 mm | 384 mm | 408 mm |
| Top Tube Length | 501 mm | 530 mm | 560 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 490 mm | 540 mm | 570 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 160 mm | 180 mm | 195 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
