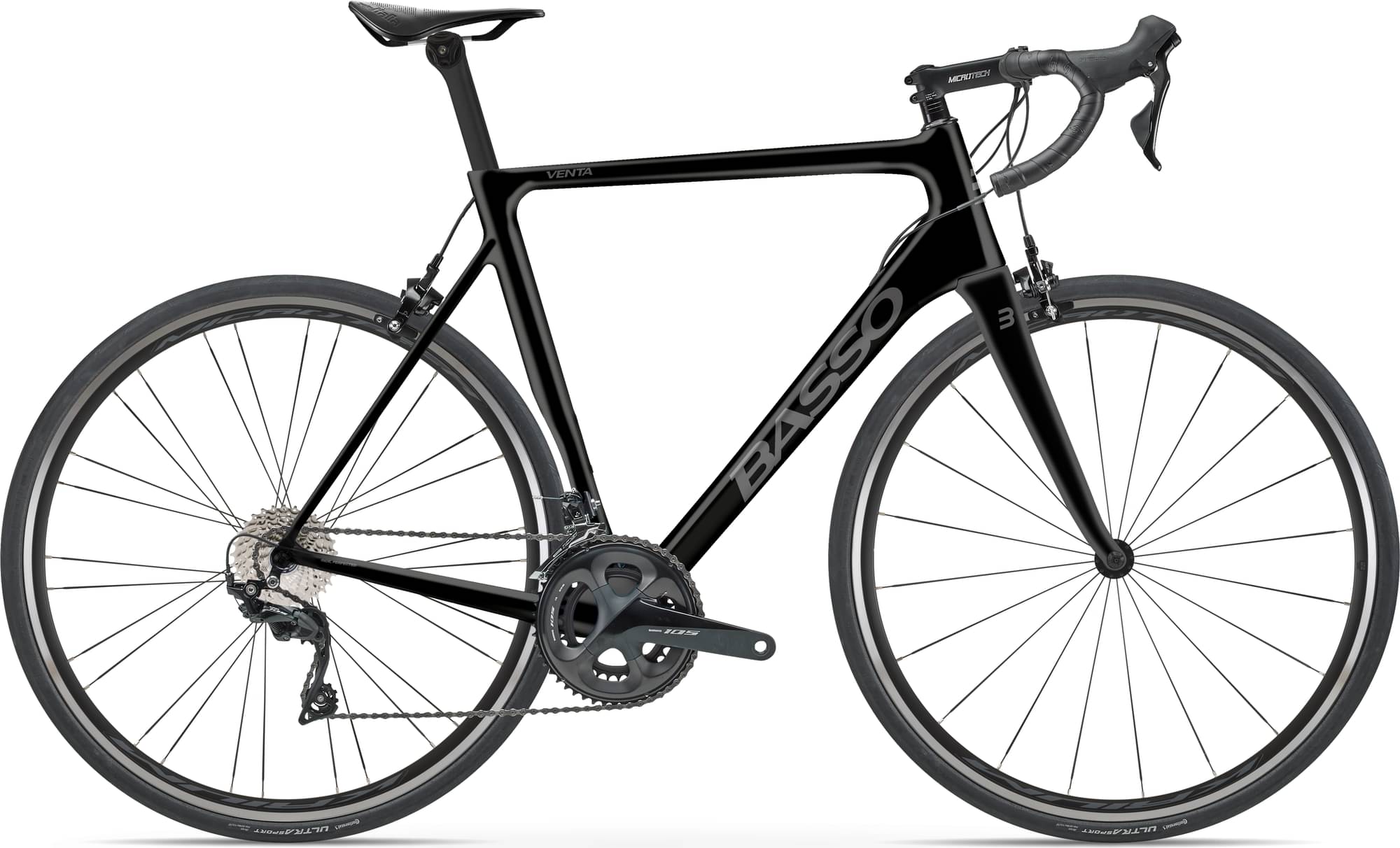

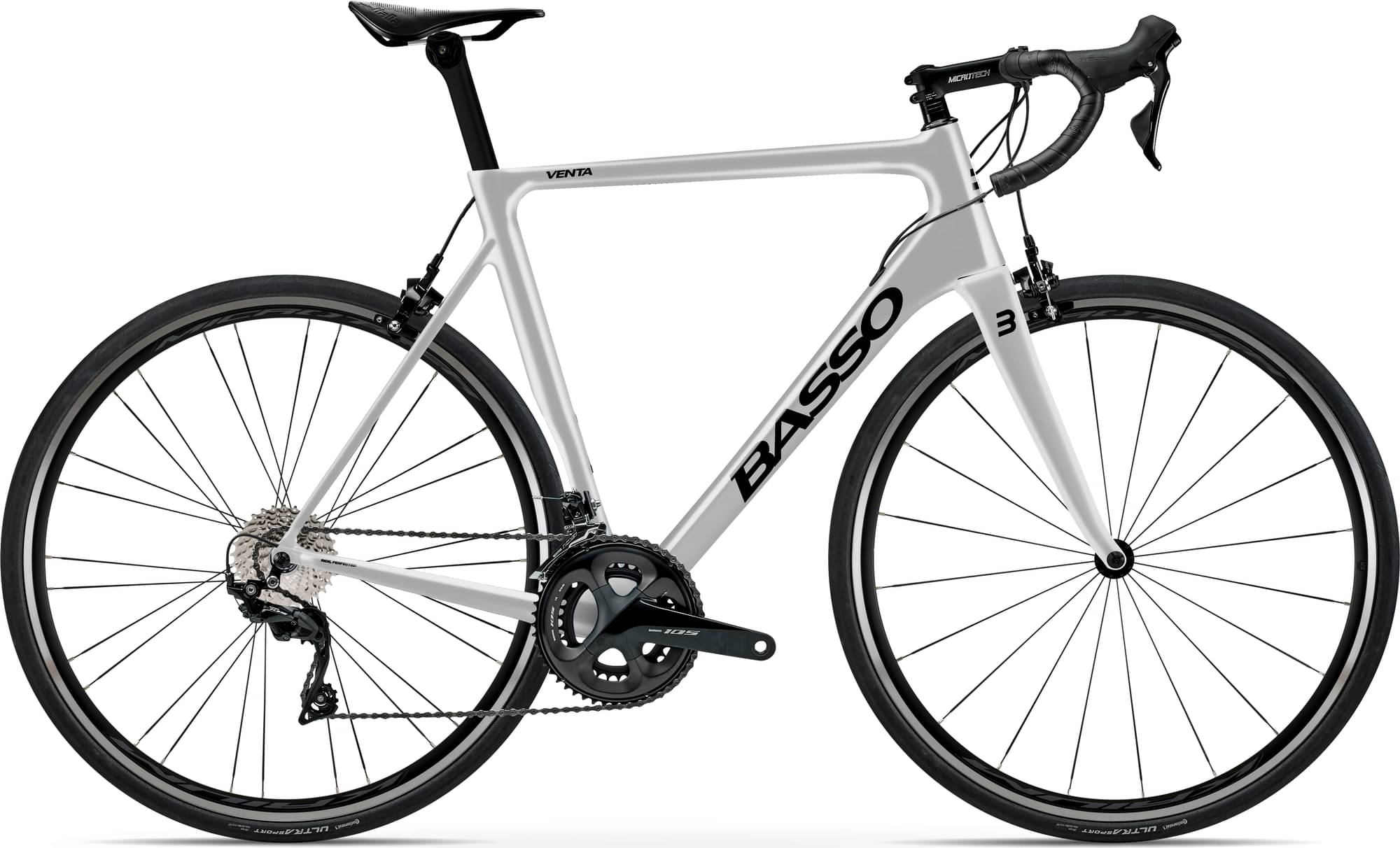

Basso Venta Rim Campagnolo Centaur 2024
2024 Road
Estimate price |
2,441$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Centaur -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Cassette
Campagnolo Centaur 11-32T
Crank
Campagnolo Centaur 50-34T
Wheels
Rims
Microtech Krium
Tires
Continental Gran Sport 3 - 700 x 28 Tires
Brakes
Brakes
Rim
Cockpit
Stem
Microtech XL Stem
Handlebar
Microtech XL Handlebar
Seat
Saddle
Selle Italia Model X Saddle
Seatpost
Venta 3B Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 45cm | 51cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.409 mm | 1.464 mm | 1.473 mm | 1.535 mm | 1.582 mm | 1.64 mm |
| Stack | 527 mm | 527 mm | 552 mm | 564 mm | 591 mm | 614 mm | 638 mm |
| Reach | 374 mm | 374 mm | 377 mm | 383 mm | 385 mm | 388 mm | 389 mm |
| Top Tube Length | 480 mm | 505 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 75 ° | 76 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 450 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.8 ° | 71.8 ° | 72 ° | 72.3 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 125 mm | 125 mm | 150 mm | 162 mm | 180 mm | 204 mm | 228 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 402 mm | 406 mm | 406 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
