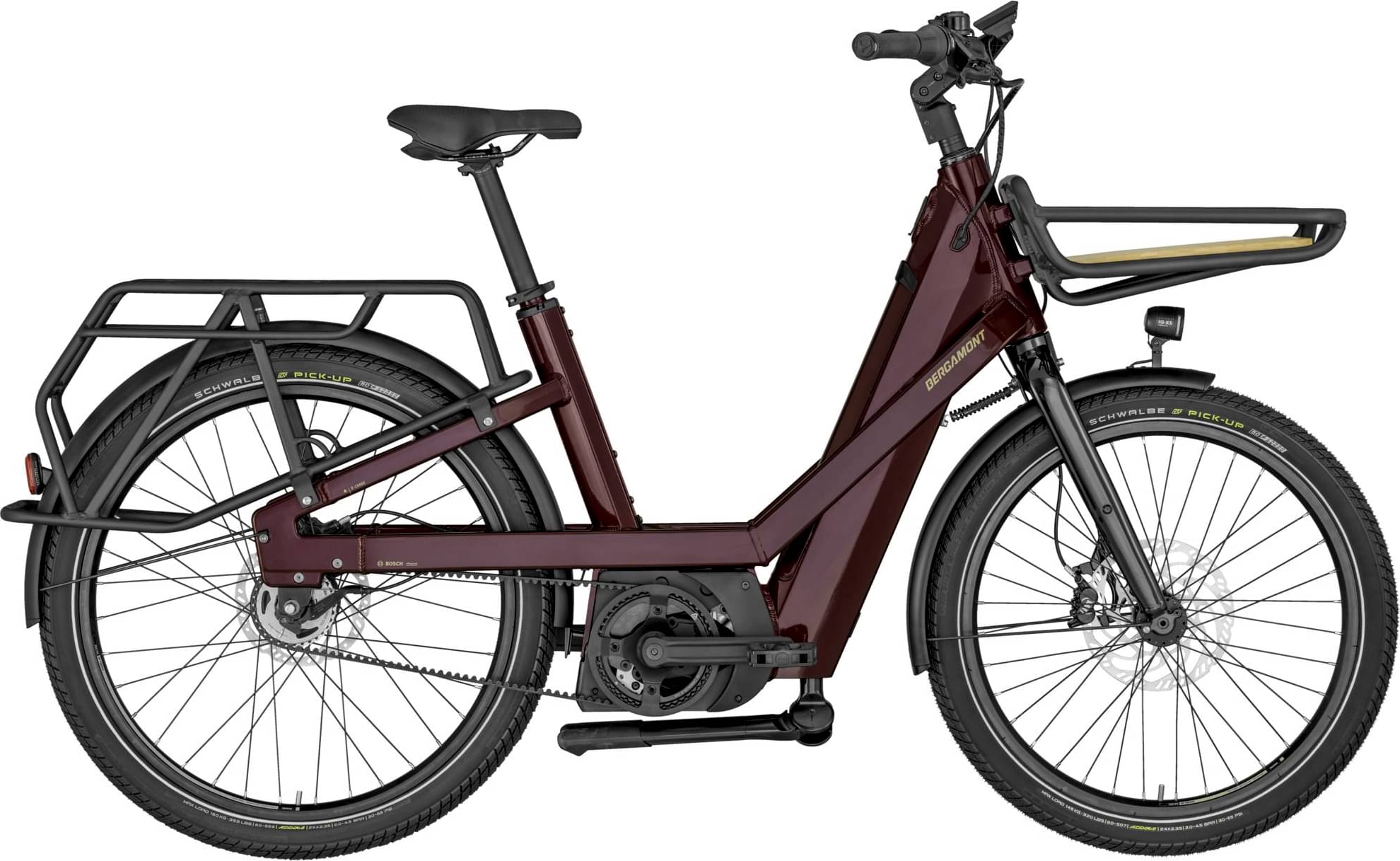

Bergamont E-Cargoville Bakery Elite 2024
2024 E-bike
Estimate price |
5,001$
Weight | 33.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 250W mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
24/26", lite AL-6061 tubing, prepared for heavy duty front and rear rack, PowerTube battery
Suspension Fork
BGM Cargo, rigid fork, extra strong, 15x110 mm axle
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000, 5-speed, revo-shifter
Cassette
Gates CDX, 32t
Crank
FSA CK-320, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Marwi SP-827 Sandblock
Wheels
Front Hub
BGM Pro Cargo, 6-bolt, disc, 15x110 mm axle, quad bearing
Rear Hub
Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
Rims
Ryde Andra 40, disc
Spokes
Sapim Leader
Tires
Front: Schwalbe Pick-Up, 60-507 Tube: Impac AV24, Rear: Schwalbe Pick-Up, 60-559 Tube: Impac AV26
Brakes
Brakes
Front: Magura MT30, hydraulic disc brake, 4-piston Rear: Magura MT30 2-piston, hydraulic disc brake
Brake Levers
Magura MT30, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 30°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Cane Creek Visco-Set, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Urban Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Cargo Line, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.626 mm |
| Front Center | 670 mm | 687 mm |
| Rake | 36 mm | 36 mm |
| Stack | 632 mm | 660 mm |
| Reach | 400 mm | 406 mm |
| Top Tube Length | 618 mm | 633 mm |
| Seat Tube Length | 495 mm | 540 mm |
| Head Tube Length | 243 mm | 273 mm |
| Chainstay Length | 468 mm | 468 mm |
| Wheelbase | 1130 mm | 1147 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 436 mm | 436 mm |
| Wheels | 24" | 24" |
