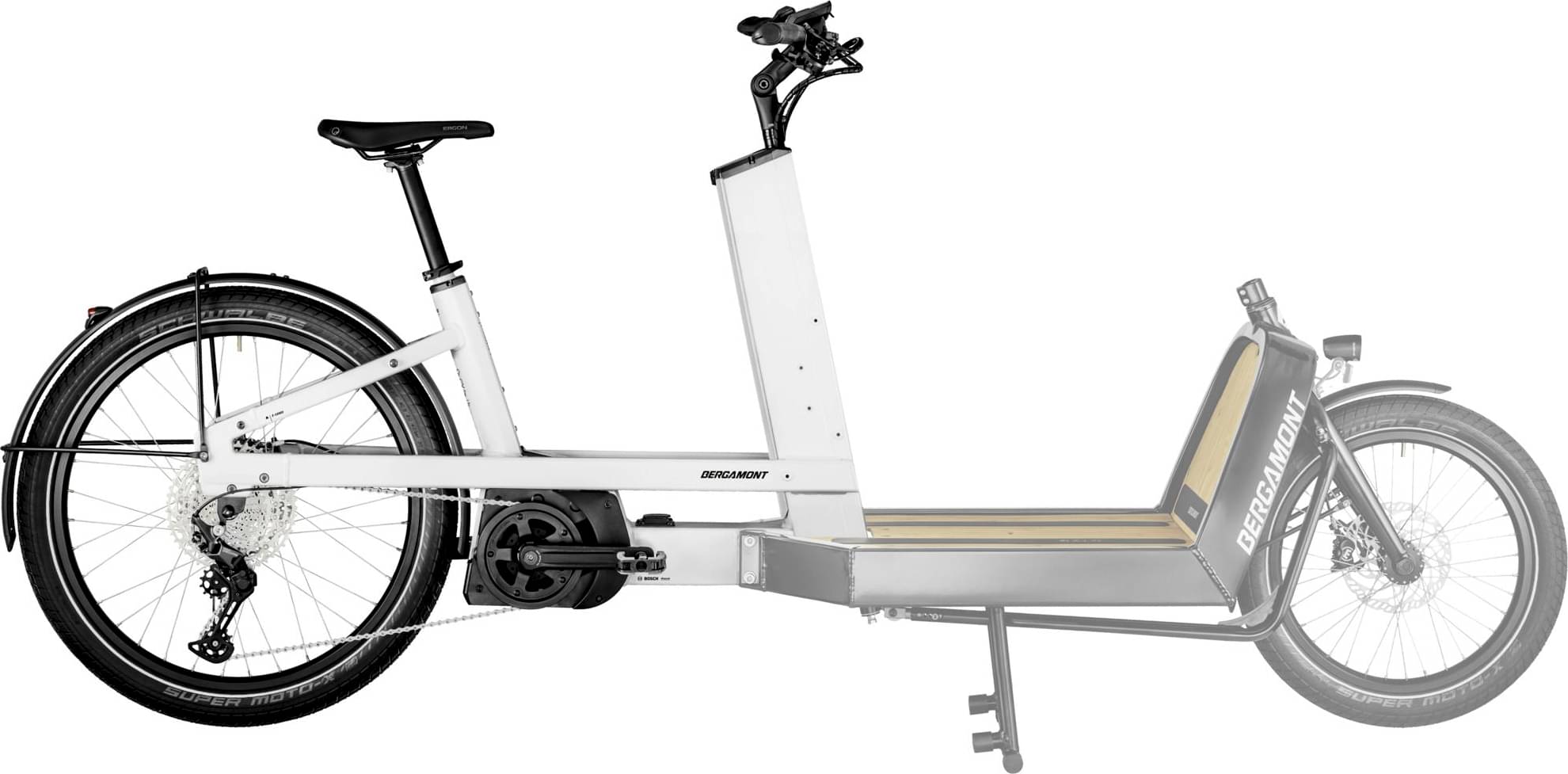

Bergamont E-Cargoville LJ Edition 2024
2024 E-bike
Estimate price |
4,885$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
20/26", lite AL-6061 tubing, 70x45//50x45 cm load platform, PowerTube battery
Suspension Fork
BGM Cargo, rigid fork, extra strong, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift Levers
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-10, 11-43t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro Cargo, 6-bolt, disc, 15x100 mm axle, quad bearing
Rear Hub
Shimano Deore XT, FH-M8000, centerlock, disc, quick release
Rims
Ryde Andra 40, disc
Spokes
Sapim Leader
Tires
Front: Schwalbe Pick-Up, Super Defence, 62-406 Tube: Impac AV20, Rear: Schwalbe Pick-Up, Super Defence, 60-559 Tube: Impac AV26
Brakes
Brakes
Magura CMe5, hydraulic disc brake, 4-piston
Brake Levers
Magura CMe5, hydraulic disc brake
Cockpit
Stem
BGM Cargo, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 30°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Cane Creek Visco-Set, A-Headset, semi-integrated, tapered (fork) / FSA IS-3E, A-Headset, 1-1/8" (steering tube)
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 500 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
