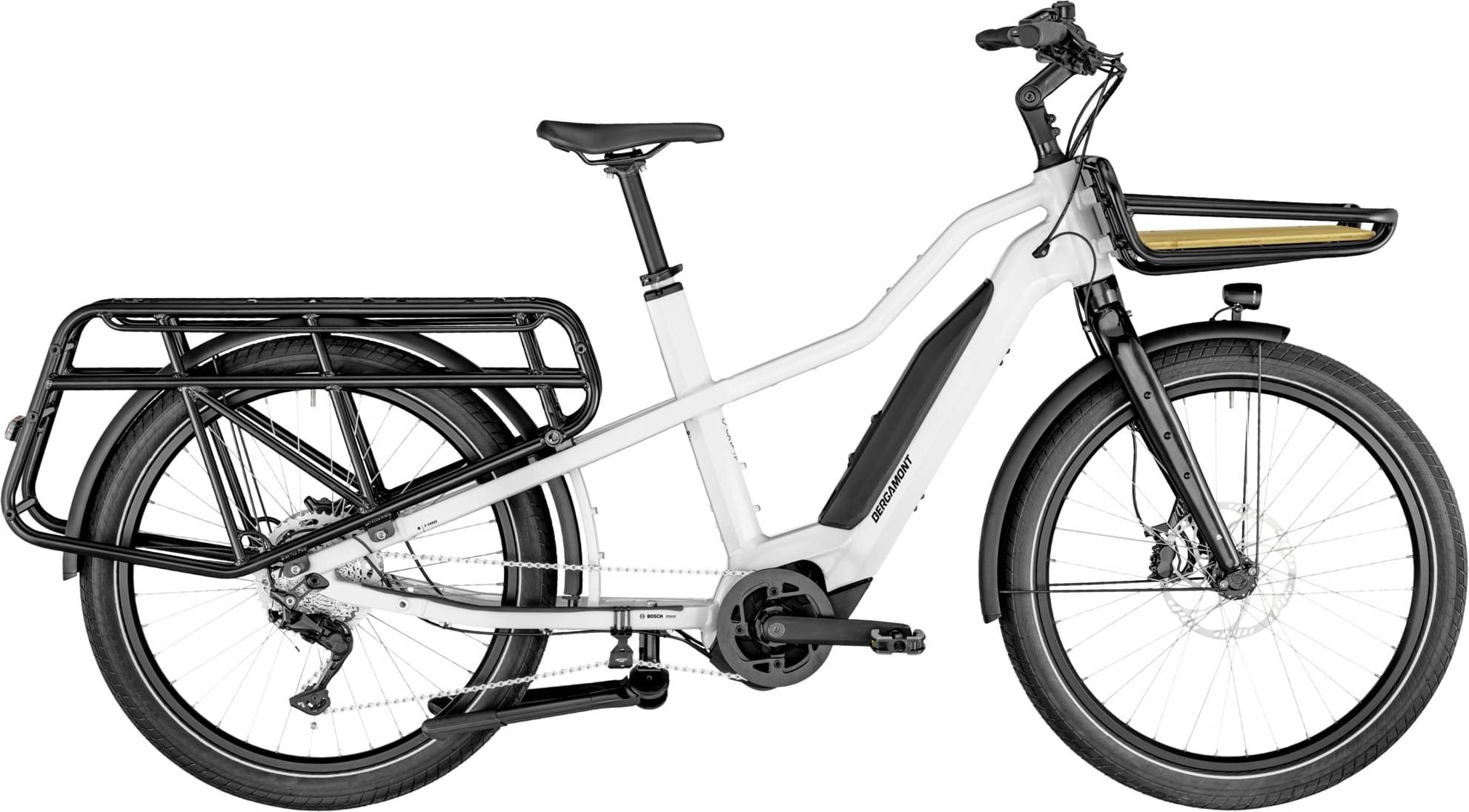

Bergamont E-Cargoville LT Expert 2024
2024 E-bike
Estimate price |
6,397$
Weight | 36.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset XT, Deore -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack, covered, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26?, lite AL-6061 tubing, prepared for heavy duty front and long rear rack, PowerPack battery
Suspension Fork
BGM Cargo, rigid fork, CrMo extra strong, tapered, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-200, 38t, with chaincover
Bottom Bracket
Bosch, Isis
Chain
KMC e12 EPT
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro, 6-bolt, disc, 15x100 mm axle
Rear Hub
Shimano Deore XT, FH-M8110-B, centerlock, disc, 12x148 mm axle
Rims
Ryde Andra 40, disc
Spokes
Sapim Leader
Tires
Front: Schwalbe Super Moto-X, Greenguard, 62-559 Tube: Impac AV26, Rear: Schwalbe Super Moto-X, Greenguard, 62-559 Tube: Impac AV26
Brakes
Brakes
Magura CMe5, hydraulic disc brake, 4-piston
Brake Levers
Magura CMe5, hydraulic disc brake
Cockpit
Stem
BGM Cargo, adjustable
Handlebar
BGM Pro, riserbar, rise: 50 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Cane Creek Visco-Set, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerPack, covered, 36 V Li Ion, 500 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 53cm |
|---|---|---|
| Stack Reach Ratio | 1.595 mm | 1.637 mm |
| Front Center | 643 mm | 660 mm |
| Rake | 42 mm | 42 mm |
| Stack | 630 mm | 658 mm |
| Reach | 395 mm | 402 mm |
| Top Tube Length | 606 mm | 622 mm |
| Seat Tube Length | 470 mm | 530 mm |
| Head Tube Length | 145 mm | 175 mm |
| Chainstay Length | 660 mm | 660 mm |
| Wheelbase | 1297 mm | 1314 mm |
| Bottom Bracket Drop | 64 mm | 64 mm |
| Standover Height | 705 mm | 705 mm |
| Wheels | 26" | 26" |
