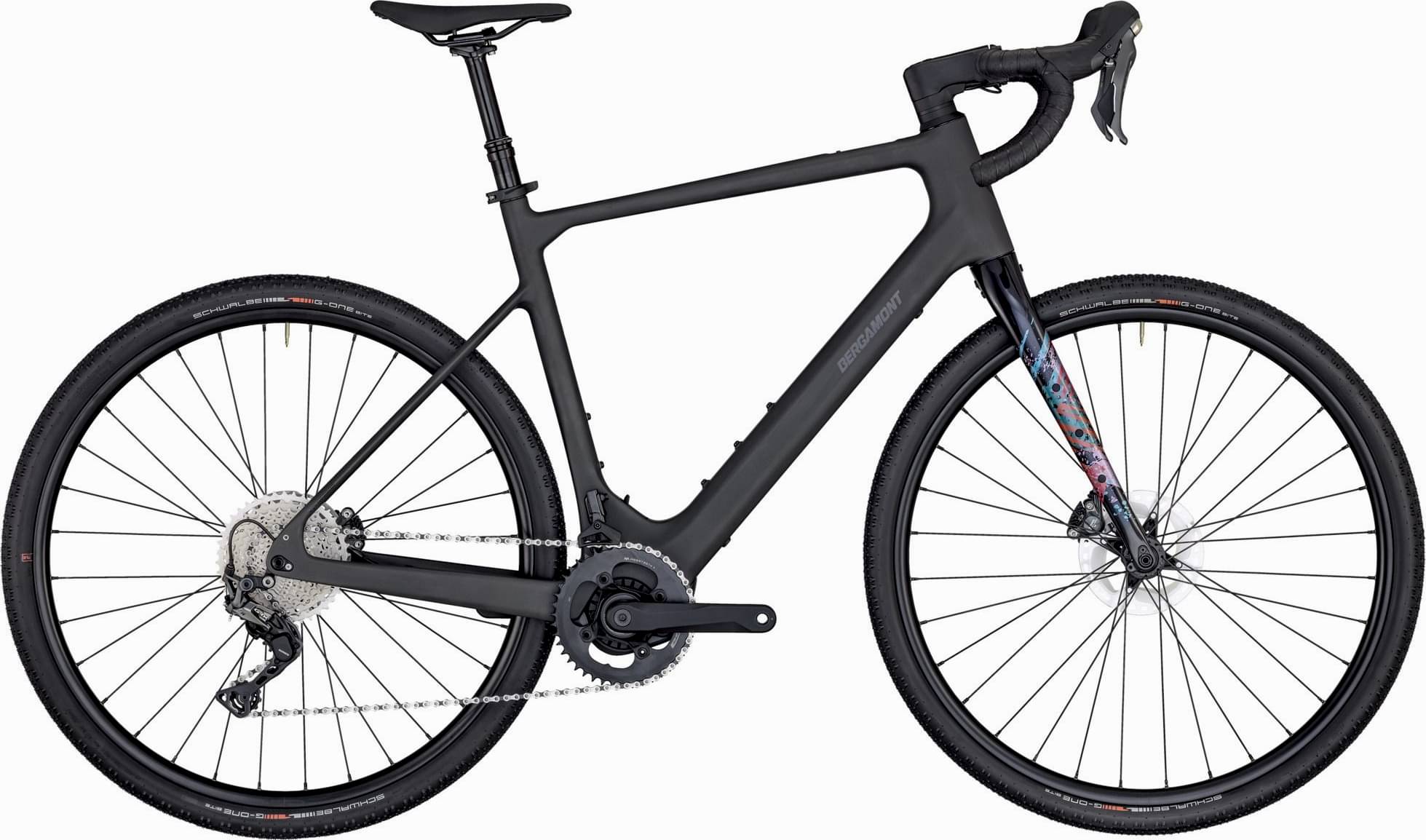

Bergamont E-Grandurance Elite 2024
2024 E-bike
Estimate price |
6,746$
Weight | 14.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Motor TQ 300W mid-drive -
Battery TQ-HPR50 integrated DT battery, 50.4 V Li Ion, 360 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite SCM-Carbon
Suspension Fork
BGM allroad carbon, carbon steerer, 12x100 mm axle, fender mount
Drivetrain
Rear Derailleur
Shimano GRX, RD-RX822, Shadow Plus
Shift Levers
Shimano GRX, ST-RX820, 1x12-speed, road STI-shifter
Cassette
Shimano SLX, CS-M7100, 10-45t
Crank
FSA CK-746, 44t
Bottom Bracket
TQ
Chain
KMC e12S
Pedals
none
Wheels
Front Hub
Syncros wheelset RP 2.0
Rear Hub
Syncros wheelset RP 2.0
Rims
Syncros wheelset RP 2.0
Spokes
double butted, stainless, black
Tires
Front: Schwalbe G-One Bite Evo, folding, Tubeless-Easy, 45-622 Tube: Schwalbe SV17A Light, Rear: Schwalbe G-One Bite Evo, folding, Tubeless-Easy, 45-622 Tube: Schwalbe SV17A Light
Brakes
Brakes
Shimano GRX, BR-RX820, hydraulic disc brake
Brake Levers
Front: Shimano GRX, ST-RX820, for dropper post Rear: Shimano GRX, ST-RX820
Cockpit
Stem
Satori Viper
Handlebar
Satori X-Race Aero, flare: 16°
Grips
BGM Race Grip-Tape, antislip, antishock
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros Duncan, dropper post, 100 mm (frame size "50": 80 mm), remote via STI shifter
Motor & Battery
Motor
TQ-HPR50, 300 W, 50.4 V, max. 25 km/h
Battery
TQ-HPR50 integrated DT battery, 50.4 V Li Ion, 360 Wh
Charger
TQ charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.533 mm | 1.523 mm | 1.514 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 616 mm | 640 mm | 660 mm | 682 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 560 mm | 598 mm | 617 mm | 636 mm |
| Reach | 380 mm | 390 mm | 405 mm | 420 mm |
| Top Tube Length | 530 mm | 550 mm | 570 mm | 590 mm |
| Seat Tube Length | 485 mm | 520 mm | 555 mm | 585 mm |
| Head Tube Length | 120 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1041 mm | 1065 mm | 1086 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 776 mm | 812 mm | 839 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
