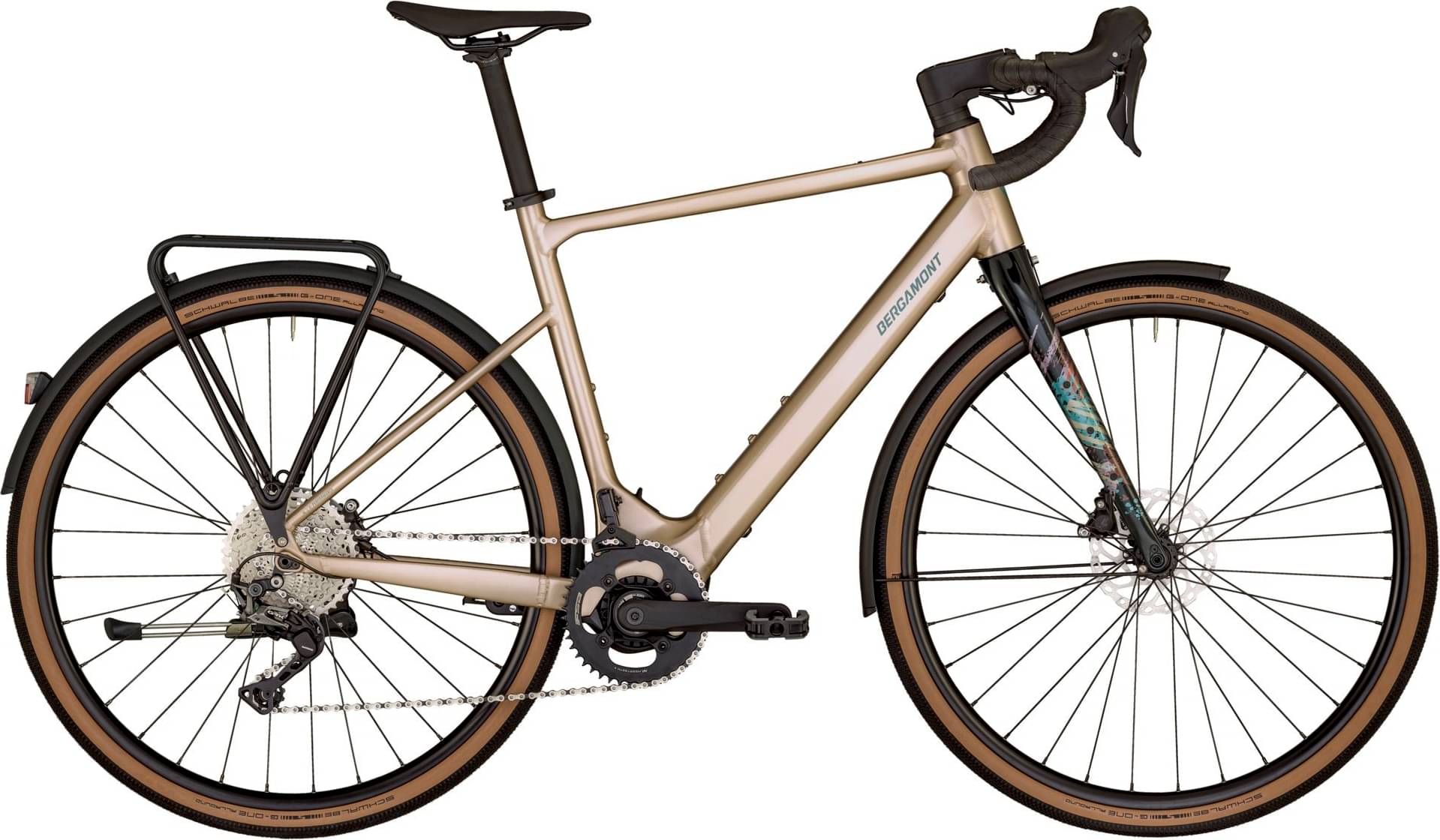

Bergamont E-Grandurance RD 8 2024
2024 E-bike
Estimate price |
5,816$
Weight | 17.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor TQ 300W mid-drive -
Battery TQ-HPR50 integrated DT battery, 50.4 V Li Ion, 360 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, integrated battery
Suspension Fork
BGM allroad carbon, carbon steerer, 12x100 mm axle, fender mount
Drivetrain
Rear Derailleur
Shimano GRX, RD-RX812, Shadow Plus
Shift Levers
Shimano GRX, ST-RX600, 1x11-speed, road STI-shifter
Cassette
Shimano Deore, CS-M5100, 11-42t
Crank
FSA CK-746, 44t
Bottom Bracket
TQ
Chain
KMC e11
Pedals
none
Wheels
Front Hub
BGM Allroad, centerlock, disc, 12x100 mm axle
Rear Hub
BGM Allroad, centerlock, disc, 12x142 mm axle
Rims
Ryde Rival 26, disc
Spokes
stainless, black
Tires
Front: Schwalbe G-One Allround, folding, Tubeless-Easy, Raceguard, 40-622 Tube: Schwalbe SV17A Light, Rear: Schwalbe G-One Allround, folding, Tubeless-Easy, Raceguard, 40-622 Tube: Schwalbe SV17A Light
Brakes
Brakes
Shimano GRX, BR-RX400, hydraulic disc brake
Brake Levers
Shimano GRX, ST-RX600
Cockpit
Stem
Satori Viper
Handlebar
Satori X-Race Aero, flare: 16°
Grips
BGM Race Grip-Tape, antislip, antishock
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros
Motor & Battery
Motor
TQ-HPR50, 300 W, 50.4 V, max. 25 km/h
Battery
TQ-HPR50 integrated DT battery, 50.4 V Li Ion, 360 Wh
Charger
TQ charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.485 mm | 1.495 mm | 1.505 mm | 1.514 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 616 mm | 633 mm | 649 mm | 665 mm | 682 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 560 mm | 579 mm | 598 mm | 617 mm | 636 mm |
| Reach | 380 mm | 390 mm | 400 mm | 410 mm | 420 mm |
| Top Tube Length | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Length | 485 mm | 510 mm | 535 mm | 560 mm | 585 mm |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1041 mm | 1058 mm | 1075 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 774 mm | 796 mm | 817 mm | 839 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
