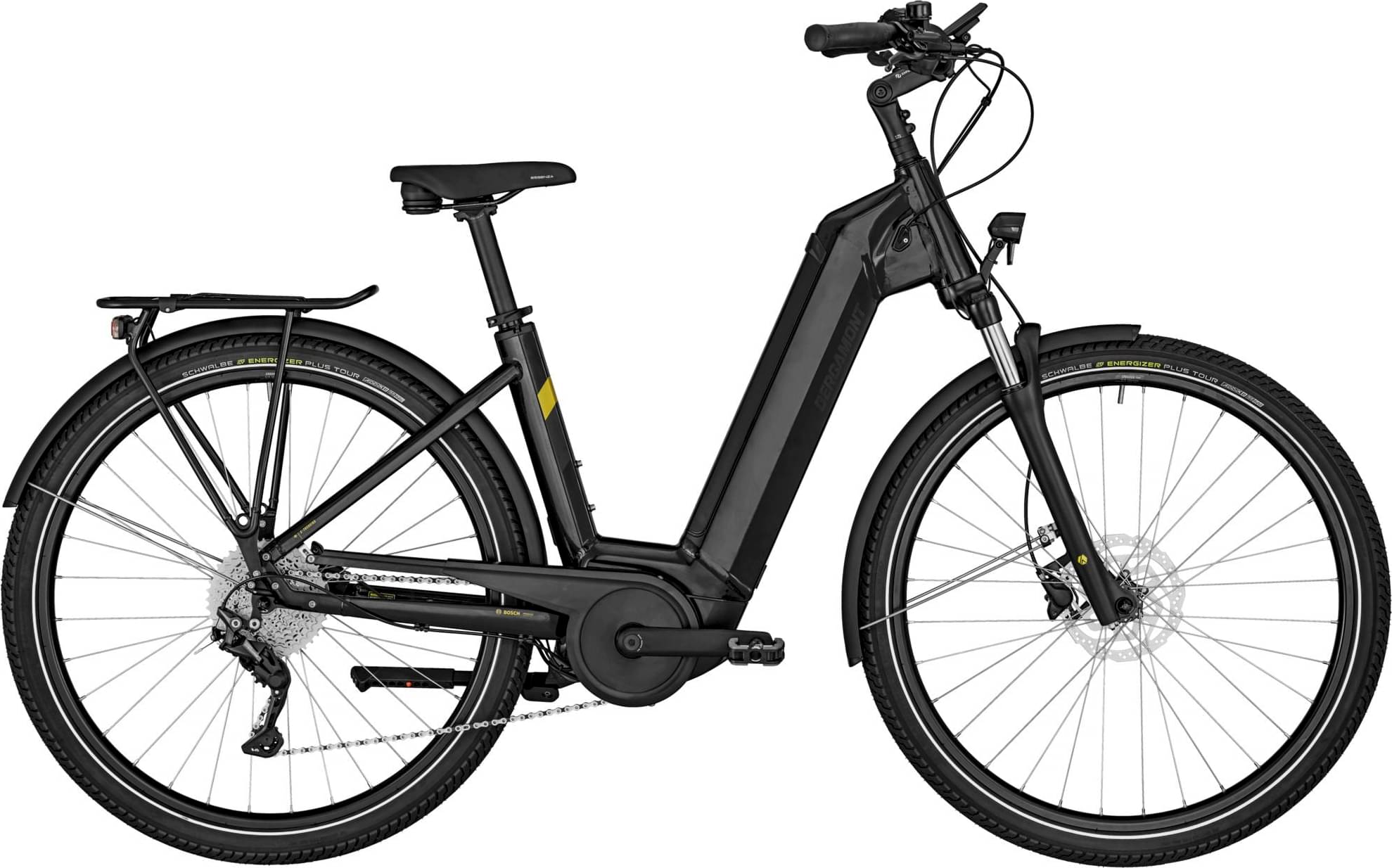

Bergamont E-Horizon Edition 6 Wave 2024
2024 E-bike
Estimate price |
3,784$
Weight | 28.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour NVX30 DS, 75 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-M4100-10, 11-42t
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, silver
Tires
Front: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 40°, rise: 40 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Urban Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.62 mm | 1.6 mm | 1.58 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 643 mm | 643 mm | 643 mm | 643 mm |
| Reach | 392 mm | 397 mm | 402 mm | 407 mm |
| Top Tube Length | 595 mm | 600 mm | 605 mm | 610 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1151 mm | 1156 mm | 1161 mm | 1166 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheels | 700 | 700 | 700 | 700 |
