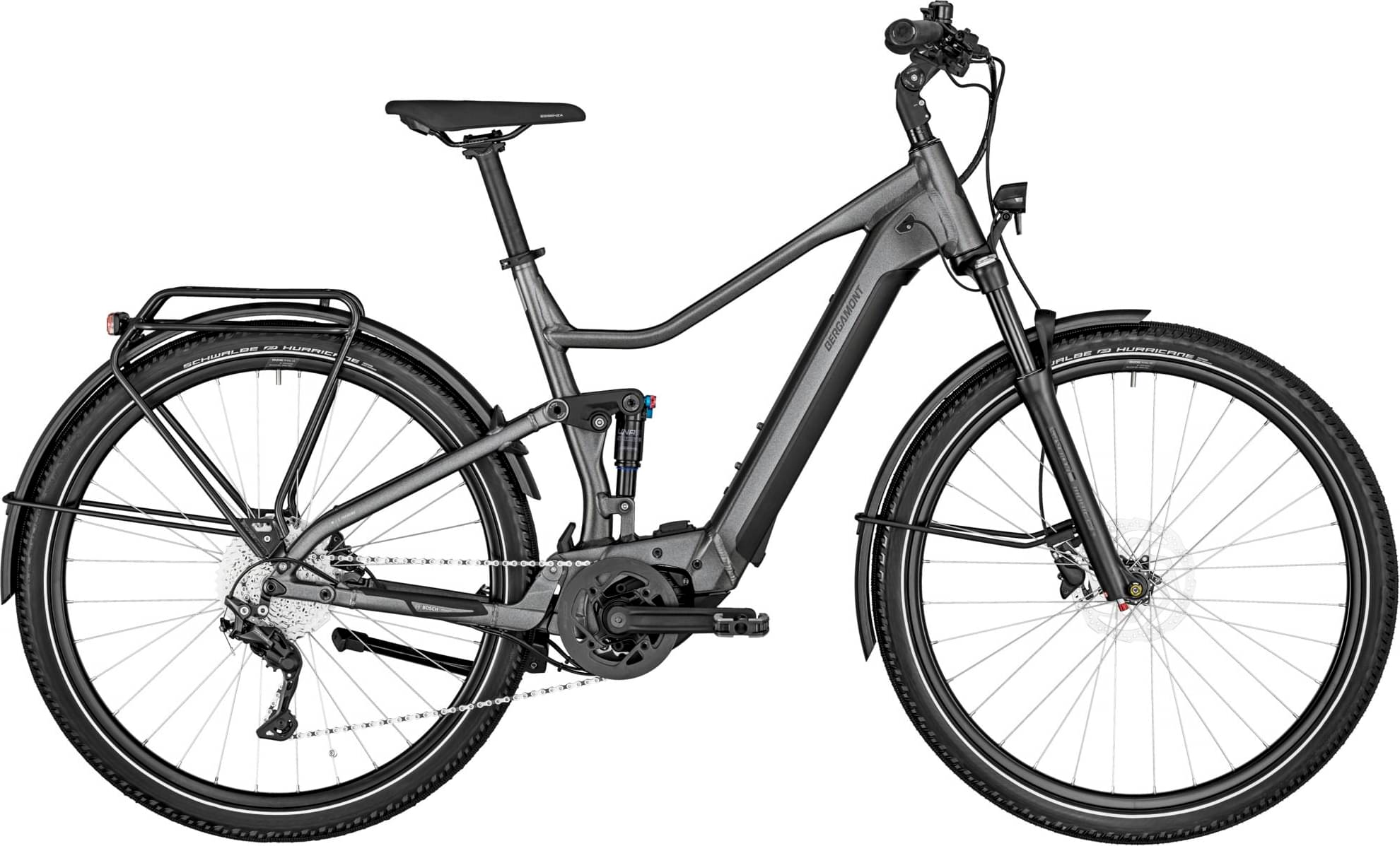

Bergamont E-Horizon FS Edition 2024
2024 E-bike
Estimate price |
4,587$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 25 Air, LOR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour Unair, length x stroke: 145x35, hardware: 25x8mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-M4100-10, 11-42t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro, centerlock, disc, 15x100 mm axle
Rear Hub
BGM Pro, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19, Rear: Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza Plus, gent
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Compact Charger, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.488 mm | 1.483 mm | 1.484 mm |
| Front Center | 677 mm | 693 mm | 708 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 620 mm | 634 mm | 648 mm | 662 mm |
| Reach | 416 mm | 426 mm | 437 mm | 446 mm |
| Top Tube Length | 590 mm | 605 mm | 620 mm | 637 mm |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1153 mm | 1169 mm | 1184 mm | 1200 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 736 mm | 736 mm | 755 mm | 780 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
