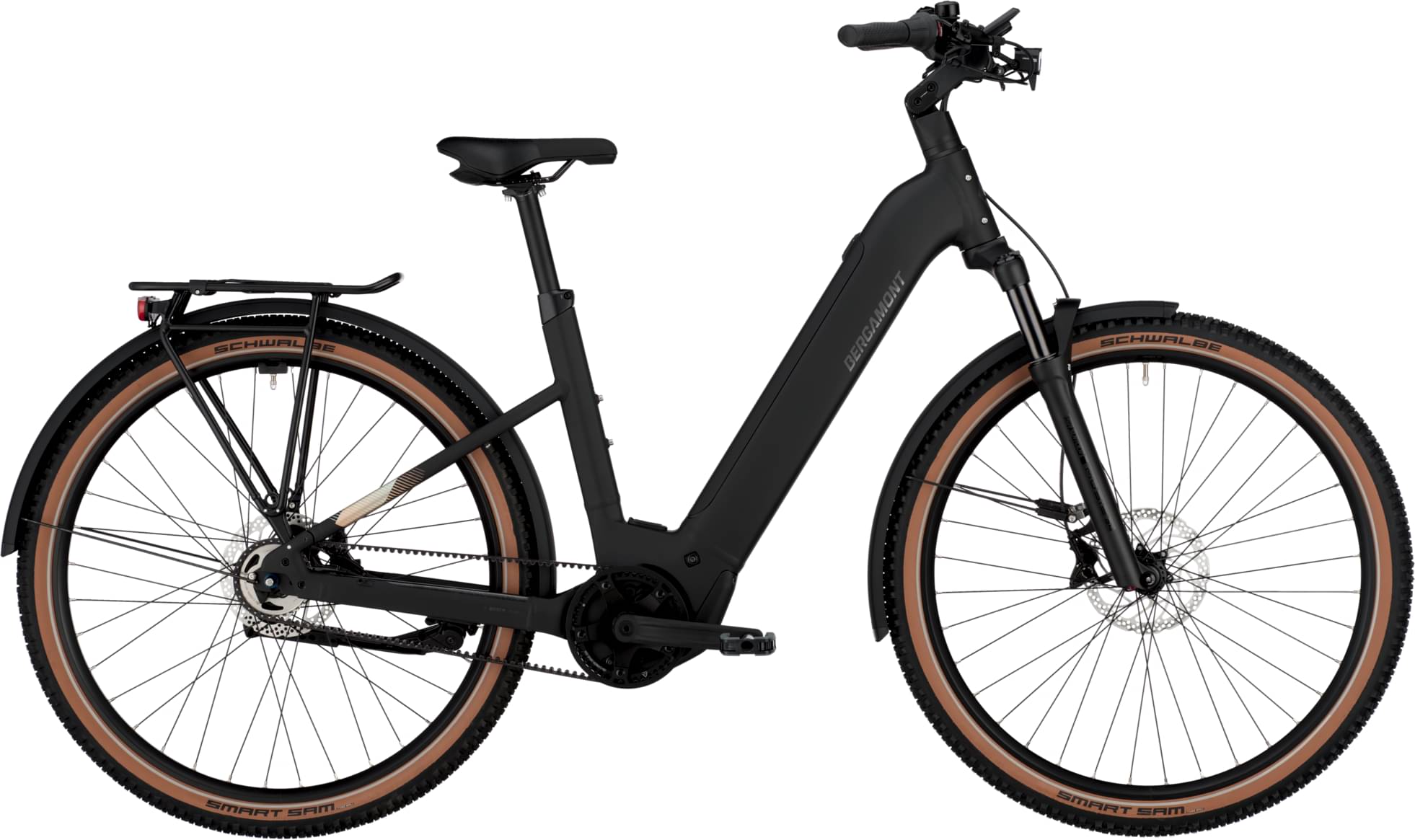

Bergamont E-Horizon SUV 20 Belt Wave 2024
2024 E-bike
Estimate price |
5,160$
Weight | 28.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 600 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour Mobie 34 Air, 100 mm, 15x110 mm axle
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000, 5-speed, revo-shifter
Cassette
Gates CDX, 32t
Crank
FSA CK-320, 170 mm, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Marwi SP-823
Wheels
Front Hub
Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Smart Sam, Performance, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Smart Sam, Performance, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston
Brake Levers
Shimano BL-MT402, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
Satori Seagull, riserbar, backsweep: 40°, rise: 40 mm
Grips
Syncros Urban, Ergo, double density, lock-on
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Capilano City
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 600 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.744 mm | 1.661 mm | 1.613 mm | 1.613 mm |
| Front Center | 726 mm | 746 mm | 768 mm | 768 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 696 mm | 696 mm | 705 mm | 705 mm |
| Reach | 399 mm | 419 mm | 437 mm | 437 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 615 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 160 mm | 160 mm | 170 mm | 170 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1214 mm | 1234 mm | 1256 mm | 1256 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
