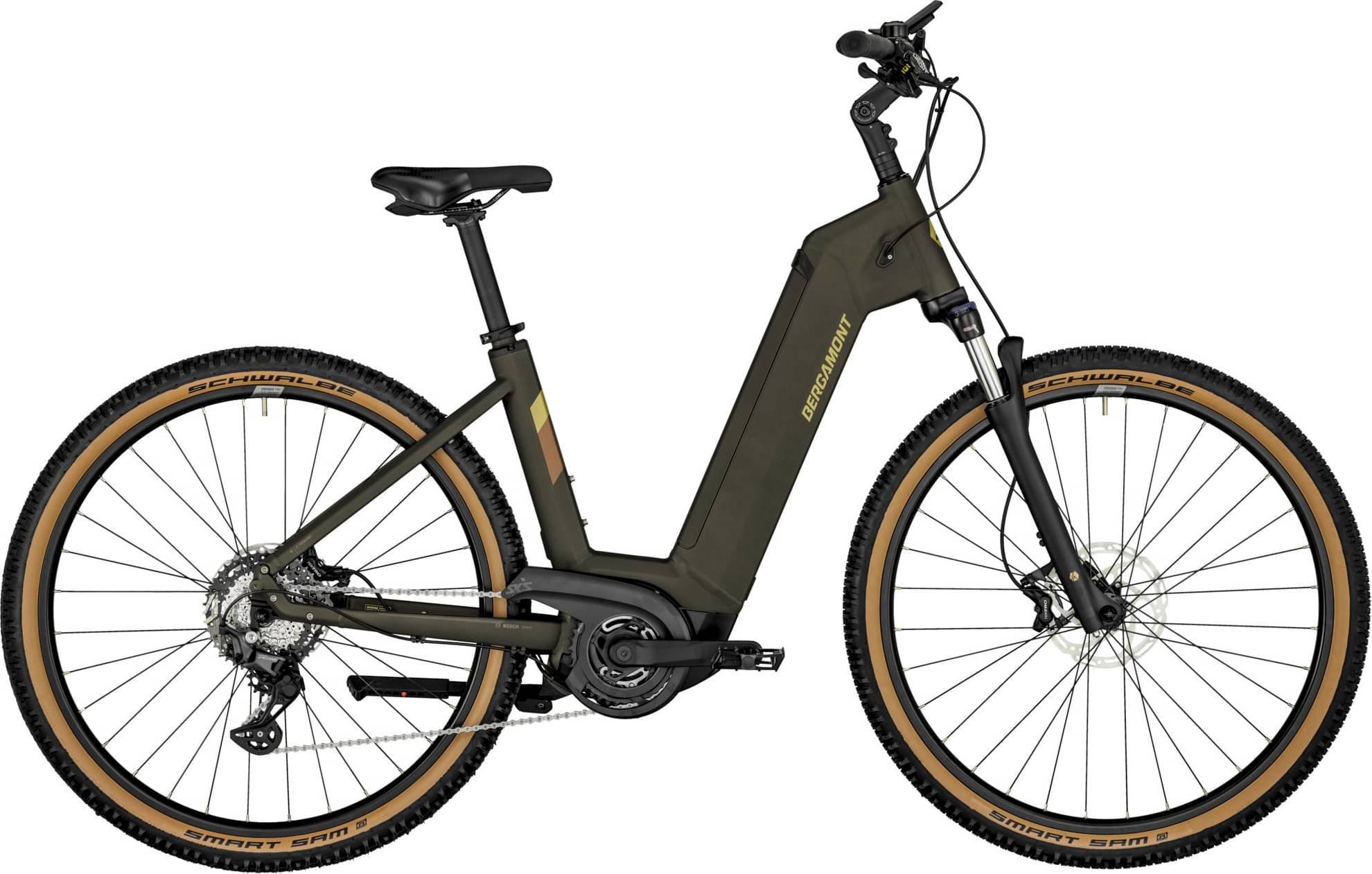

Bergamont E-Horizon SUV Cross Wave 2024
2024 E-bike
Estimate price |
3,489$
Weight | 25.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour NVX30 NLO DS, 75 mm
Drivetrain
Rear Derailleur
Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift Levers
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-10, 11-43t
Crank
FSA CK-745, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT200, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, black
Tires
Front: Schwalbe Smart Sam, skinwall, 57-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Smart Sam, skinwall, 57-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Tektro HD-M745, hydraulic disc brake, 4-piston
Brake Levers
Tektro HD-M745, hydraulic disc brake
Cockpit
Stem
BGM Comp, adjustable
Handlebar
Syncros, riserbar, backsweep: 15°, width 680 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.62 mm | 1.6 mm | 1.58 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 643 mm | 643 mm | 643 mm | 643 mm |
| Reach | 392 mm | 397 mm | 402 mm | 407 mm |
| Top Tube Length | 595 mm | 600 mm | 605 mm | 610 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1151 mm | 1156 mm | 1161 mm | 1166 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheels | 700 | 700 | 700 | 700 |
