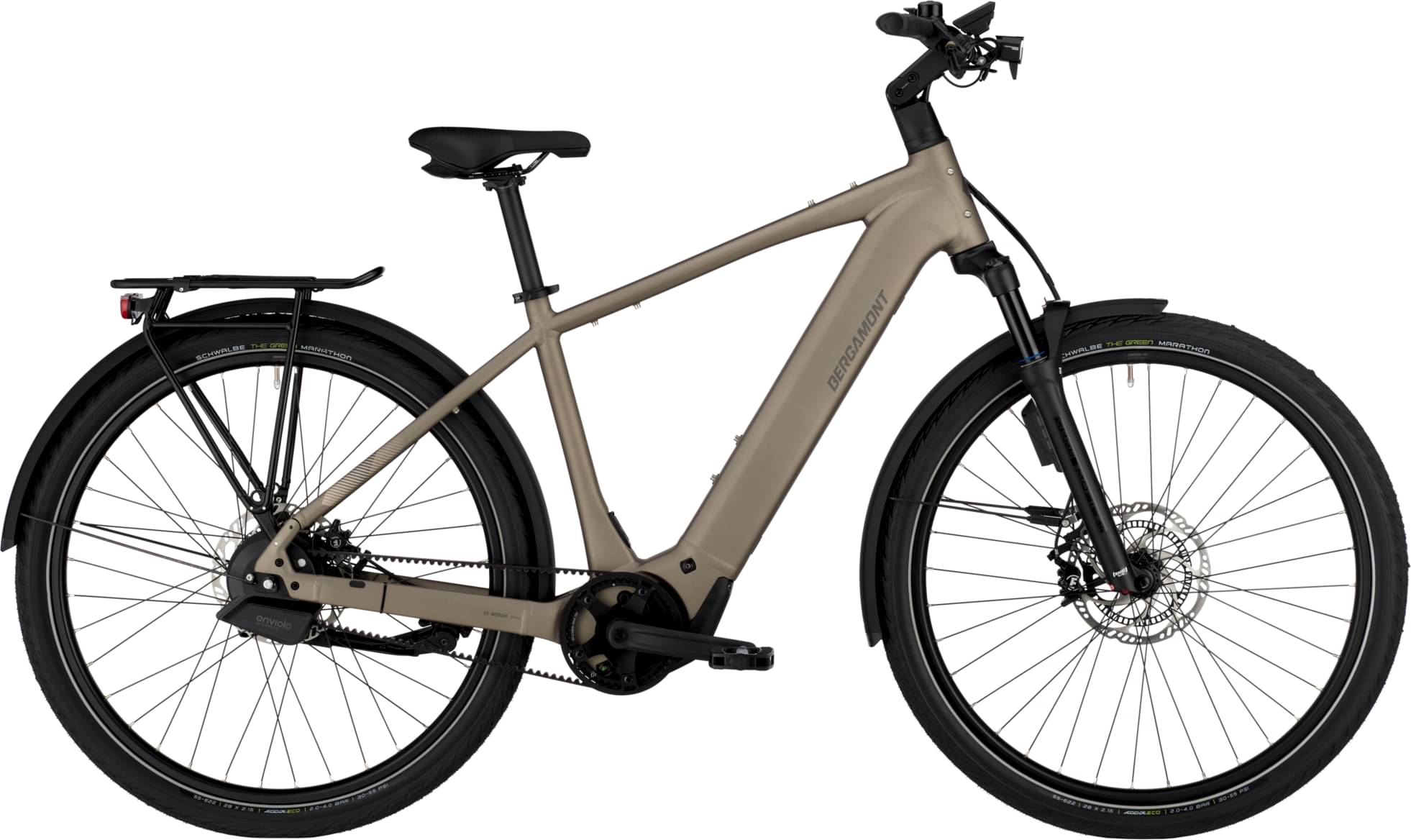

Bergamont E-Horizon Tour 10 Belt 2024
2024 E-bike
Estimate price |
6,979$
Weight | 29.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 800 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Magura Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour Mobie 34 DS RLR, air, ABS, 100 mm, 15x110 mm axle
Drivetrain
Shift Levers
Enviolo, Automatic
Cassette
Gates CDX, 24t
Crank
FSA CK-320, 170 mm, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Marwi SP-827, sandblock
Wheels
Front Hub
Shimano HB-TC500, centerlock, disc, 15x100 mm axle
Rear Hub
Enviolo Trekking Automatic, centerlock, disc
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, black
Tires
Front: Schwalbe Marathon, Performance, GreenGuard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Marathon, Performance, GreenGuard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Front: Magura MT-C, hydraulic disc brake, 4-piston, ABS Rear: Magura MT-C, hydraulic disc brake
Brake Levers
Magura MT-C, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
Syncros 3.0, riserbar, backsweep: 15°, rise: 12 mm
Grips
Syncros Urban, Ergo, double density, lock-on
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Capilano Trekking
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 800 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.586 mm | 1.58 mm | 1.576 mm | 1.568 mm |
| Front Center | 716 mm | 722 mm | 733 mm | 744 mm | 755 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 670 mm | 679 mm | 689 mm | 698 mm | 707 mm |
| Reach | 426 mm | 428 mm | 436 mm | 443 mm | 451 mm |
| Top Tube Length | 605 mm | 610 mm | 620 mm | 630 mm | 640 mm |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm | 615 mm |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1202 mm | 1208 mm | 1219 mm | 1230 mm | 1241 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 804 mm | 834 mm | 861 mm | 887 mm | 913 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
