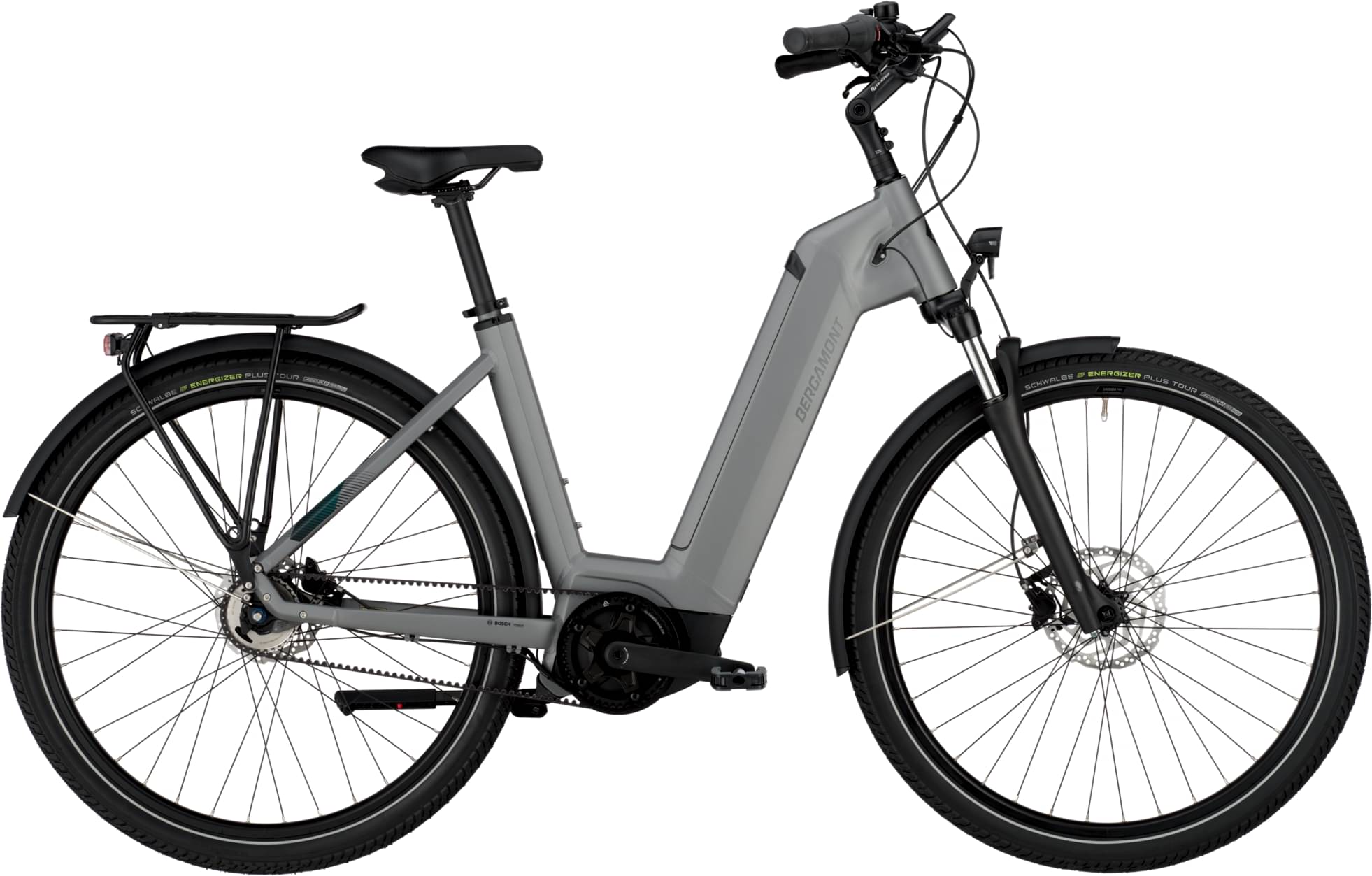

Bergamont E-Horizon Tour 30 Belt Wave 2024
2024 E-bike
Estimate price |
4,187$
Weight | 30.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NVX 30 DS, 75 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000, 5-speed, revo-shifter
Cassette
Gates CDX, 32t
Crank
FSA CK-200, 170 mm, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Marwi SP-823
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, black
Tires
Front: Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 40°, rise: 40 mm
Grips
BGM Comfort, Ergo, double density, lock-on
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano City
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Smart System, Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Compact Charger, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.643 mm | 1.622 mm | 1.602 mm | 1.582 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 644 mm | 644 mm | 644 mm | 644 mm |
| Reach | 392 mm | 397 mm | 402 mm | 407 mm |
| Top Tube Length | 595 mm | 600 mm | 605 mm | 610 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1151 mm | 1156 mm | 1161 mm | 1166 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
