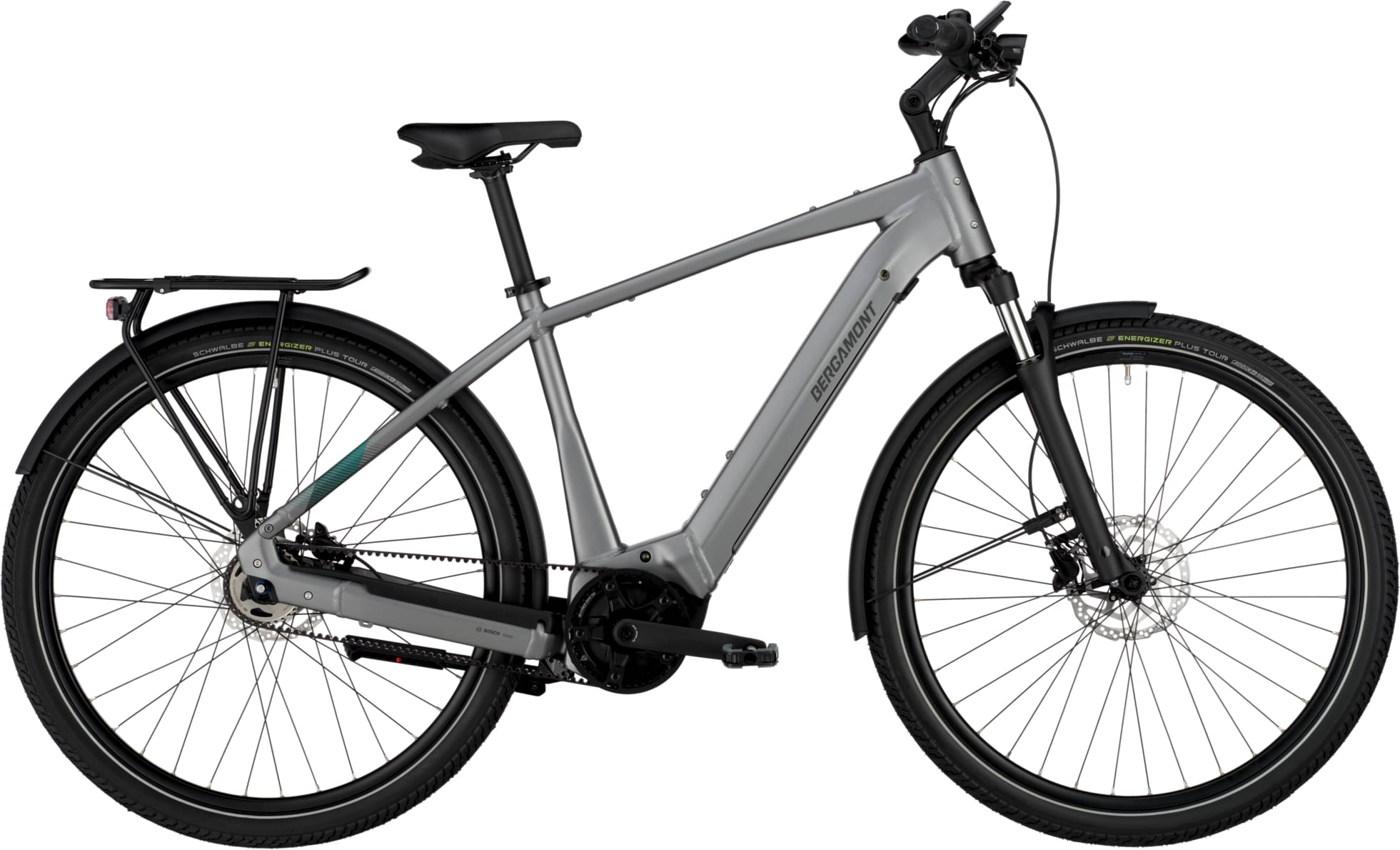

Bergamont E-Horizon Tour 35 Belt 2024
2024 E-bike
Estimate price |
4,472$
Weight | 28.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 500 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NVX 30 DS, 75 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000, 5-speed, revo-shifter
Cassette
Gates CDX, 32t
Crank
FSA CK-200, 170 mm, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Marwi SP-823
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, lock-on
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Capilano City
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Smart System, Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 500 Wh
Charger
Bosch Compact Charger, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.565 mm | 1.56 mm | 1.558 mm | 1.55 mm |
| Front Center | 700 | 711 mm | 722 mm | 733 mm | 744 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 642 mm | 651 mm | 660 mm | 670 mm | 679 mm |
| Reach | 409 mm | 416 mm | 423 mm | 430 mm | 438 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm | 635 mm | 645 mm |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm | 615 mm |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1199 mm | 1210 mm | 1221 mm | 1232 mm | 1243 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 813 mm | 840 mm | 866 mm | 892 mm | 918 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
