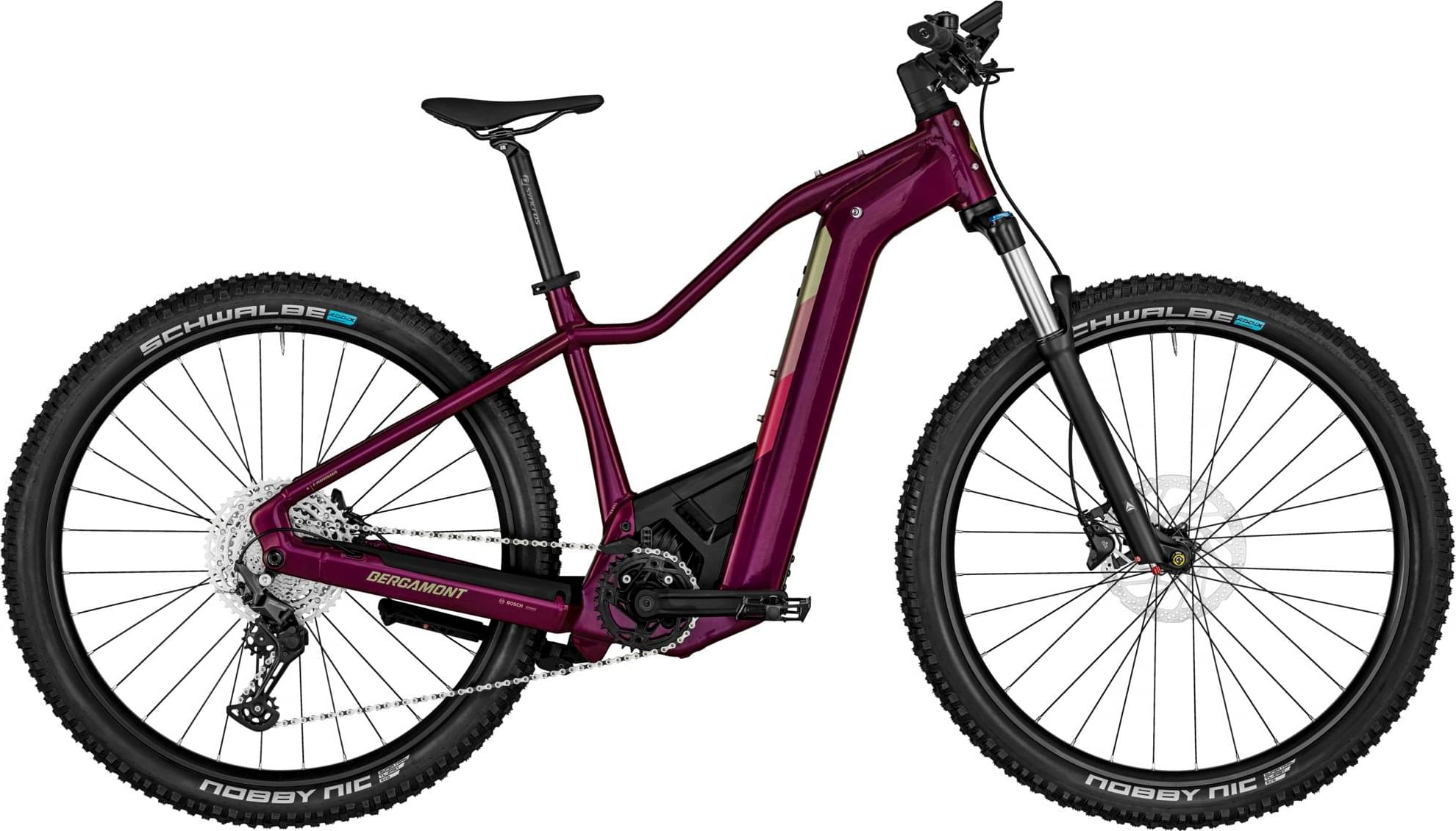

Bergamont E-Revox Pro FMN 2024
2024 E-bike
Estimate price |
3,954$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour XCR34 LOR, 120 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus
Shift Levers
Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M5100, 11-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e11S
Pedals
MTB alloy
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT410, hydraulic disc brake
Brake Levers
Shimano BL-M4100, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Syncros E-MTB
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.628 mm | 1.624 mm | 1.615 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 643 mm | 653 mm | 662 mm |
| Reach | 395 mm | 402 mm | 410 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1176 mm | 1187 mm | 1198 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 780 mm | 791 mm | 812 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
